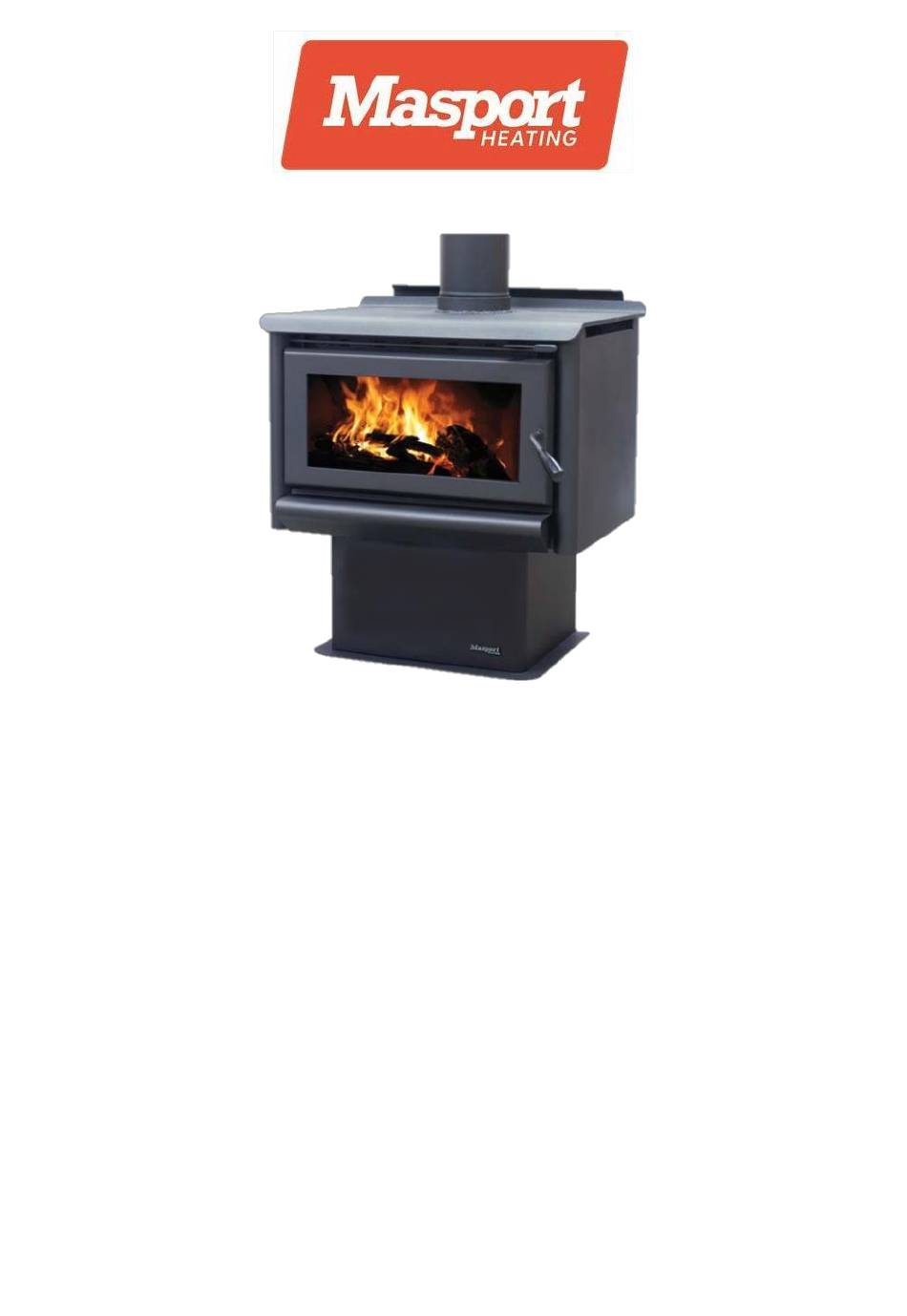

Ultra-Low Emission Burner
Installation & Operation Manual
THIS MANUAL CONTAINS IMPORTANT INFORMATION.
PLEASE KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE
Manufactured in New Zealand by:
GLEN DIMPLEX NEW ZEALAND LIMITED
P.O. Box 58473, Botany, Manukau - 2163
Ph: 0800 666 2824
Fax: 09 274 8472
Email: sales@glendimplex.co.nz
Web: www.glendimplex.co.nz
th
Date: 9
NOV 2023
*Glen Dimplex New Zealand Ltd reserves the right to change specifications, the content of this manual, or the design of its product without prior notice.
CASHMERE
Pedestal model
1
.
Part No. 583656
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Masport CASHMERE
Summary of Contents for Masport CASHMERE
- Page 1 CASHMERE Ultra-Low Emission Burner Installation & Operation Manual Pedestal model THIS MANUAL CONTAINS IMPORTANT INFORMATION. PLEASE KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE Manufactured in New Zealand by: GLEN DIMPLEX NEW ZEALAND LIMITED P.O. Box 58473, Botany, Manukau - 2163...
-
Page 2: Table Of Contents
CONTENTS Section PAGE INTRODUCTION ITEMS SUPPLIED WITH THE FIRE HANDLING AND TRANSPORT NOTES CAUTIONS TECHNICAL SPECIFICATIONS / SEIZMIC RESTRAINT ALCOVE/RECESS INSTALLATION REDUCING CLEARANCES ASH HEARTH REQUIREMENTS UNPACKING POSITIONING FLUE REQUIREMENTS BRICK AND BAFFLE LAYOUT FIRST BURN AND PAINT CURING FUEL 12.1 WOOD MOISTURE 13.1... -
Page 3: Introduction
3. Handling and Transport The CASHMERE appliance has a Net weight of 130kg. Masport recommends that a minimum of 2 people handle the heater while moving it around and in positioning. It is also recommended that suitable handling and safety equipment be used where applicable, removing items like the baffle, bricks and the door will help reduce the weight of the heater during the installation process. -
Page 4: Cautions
AS/NZS 2918 safety standards. • The CASHMERE burner was tested using a Masport flue system, it is recommended that it is installed using a Masport flue system or a flue system that has been tested and complies with AS/NZS 2918:2018 Appendix F. -
Page 5: Technical Specifications / Seizmic Restraint
250~300 from flue termination. Also, we recommend not to use Masport Opti or equivalent flue kits in this area, as they take ceiling or external cold air and cool the flue casings, leading to accelerated creosote build-up in the main flue pipe. -
Page 6: Alcove/Recess Installation
25mm 6. Ash Hearth Requirements The CASHMERE has been tested and met the minimum requirement for an ash hearth set out in AS/NZS 2918:2018. This heater weighs approximately 130 kg so ensure that the floor structure is sufficient to withstand this weight, materials used for the floor protector must also be able to withstand the weight and not crack nor break. -
Page 7: Positioning
AS/NZS 2918:2018, Appendix F shall be used with a 900mm long Masport double skin flue shield. It is highly recommended that the 200 inner casing of Masport flue system be extended to within 250~300mm below the top of the 250mm outer casing. -
Page 8: First Burn And Paint Curing
Moisture content, wood species and log size are the main factors affecting the performance of the burner. Masport recommends the use of softwood in the ULEB appliance, however, a combination of softwood and hardwood is also acceptable. A wood moisture range of 16-25% is ideal and a front-to- back loading orientation is advised. -
Page 9: Initial Light Up With Kindling And Intermediate Load
13.2 Initial light-up with kindling and intermediate load 1. Make sure the air control is set in the "HIGH" position. 2. Place the intermediate load 1 evenly across the base of the heater in a front-to-back direction. 3. Place the kindling pieces on top of the 4 logs, they should be stacked 4x4x4x4 as in image 3. 4. -
Page 10: Ash
• IT IS IMPORTANT THAT THE HEATER IS NOT USED IF THE GLASS IS BROKEN • DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE BURNER • DO NOT OPERATE THE HEATER IF EXCESSIVE SMOKE ENTERS THE ROOM 14. -
Page 11: Maintenance
16. Maintenance Maintaining a clean glass Prolonged low burns, dirty wood and wet wood will cause the glass to blacken, this can be burnt off by running the heater on the high setting for a good period. Alternatively, when the heater is cold the glass can be cleaned by using damp newspaper and ash, glass cleaner and a ceramic glass-cleaning pad. -
Page 12: Replacement Parts
17. Replacement Parts Some components used in the CASHMERE are considered replaceable. These parts will wear out or degrade over time. The life of these parts will vary upon How frequently fire is used. Type of fuel. Moisture content in the wood Environmental effects The following items are considered operational consumable and hence replaceable items. -
Page 13: Flue Termination Requirements
This can be a result of installation issues, poor wood quality, where the heater is situated and environmental influences. If you suspect your heater is not performing, contact your local MASPORT representative and have them examine all factors to try and resolve this issue. -
Page 14: Warranty Terms And Conditions
INTERNAL & EXTERNAL PAINT FINISH GLEN DIMPLEX FLUE SYSTEM During the warranty period, Glen Dimplex will repair or replace (at its option) any Masport Wood Fire which is found to be defective in materials or workmanship. Repairs will be carried out by an approved Masport Heating Service Agent. - Page 15 What is not covered under the terms of the warranty. • Wear and tear, including wear and tear through normal use on multi-fuel fire grates and cast-iron firebox liners. • Labour costs relating exclusively to components not manufactured by Glen Dimplex. •...
-
Page 16: Flue System Installation Diagrams
GLEN DIMPLEX WARRANTY REGISTRATION MASPORT CASHMERE ULTRA-LOW EMISSION BURNER Thank you for purchasing a Masport Fire. We ask you to complete the following information and return it to the Glen Dimplex Warranty Registration Department at the following address: New Zealand :...
