TRENDnet TEW-455APBO Quick Installation Manual

9dbi high power wireless outdoor poe access point
Hide thumbs Also See for TEW-455APBO:

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Installation Manual
Quick Installation Guide
TEW-455APBO

Advertisement

loading

Related Manuals for TRENDnet TEW-455APBO

Summary of Contents for TRENDnet TEW-455APBO

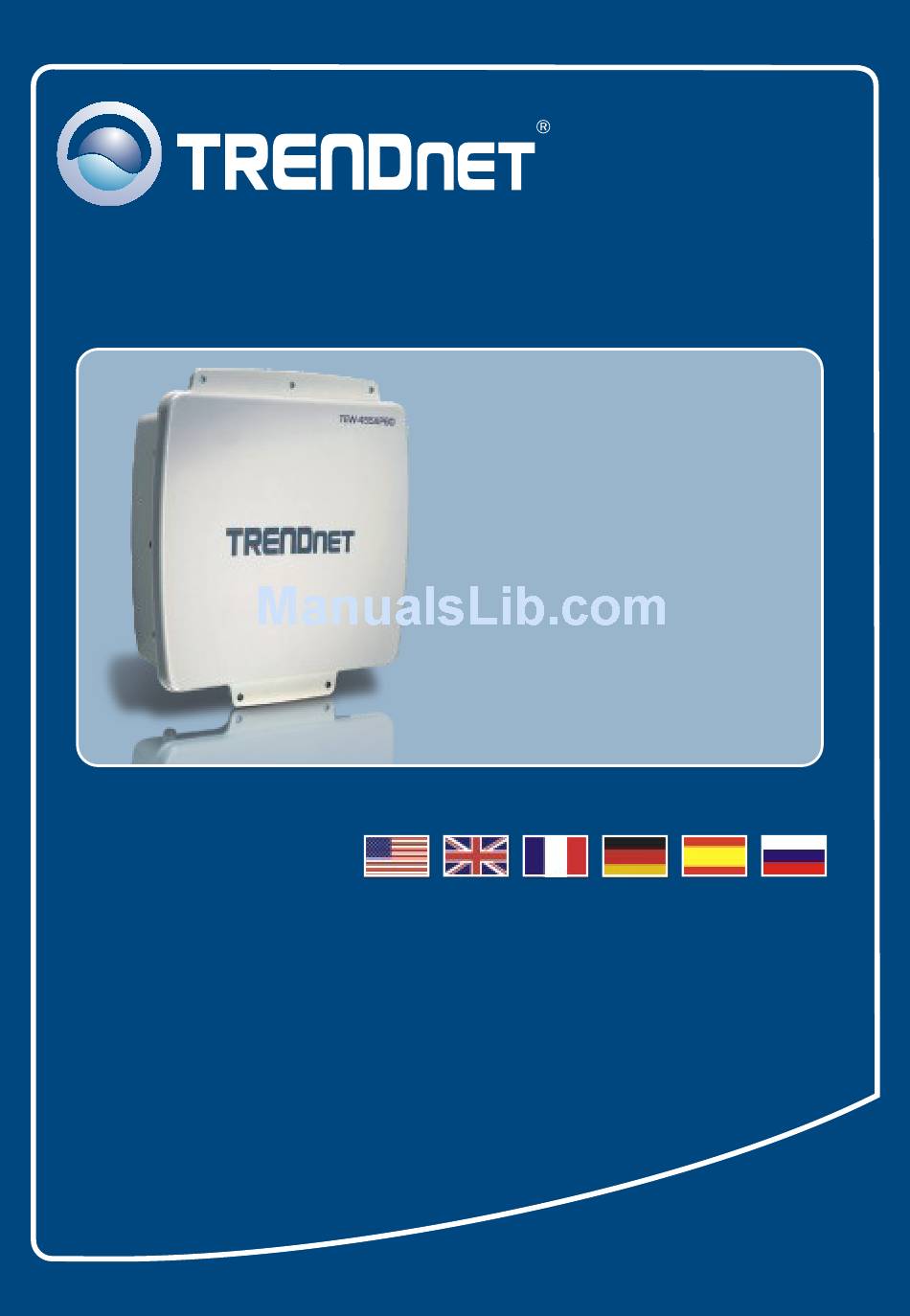

  • Page 1 Quick Installation Guide TEW-455APBO...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents English ........................1. Before You Start .................... 2. Hardware Installation ..................3. Mounting ......................4. Connecting TRENDnet External Antenna ............5. Configure the Access Point ................Troubleshooting ..................... Version 09.18.2007...

  • Page 3: English

    2 x RJ-45 network cable RJ-45 Crimper Wire stripper Screwdriver External Antenna with N-type Female connector (Optional) TEW-ASAL1 (Optional) Note: The TEW-455APBO does not support IEEE 802.3af. You must use the special Power over Ethernet adapter that is supplied with the TEW-455APBO. English...
  • Page 4 Application 9dBi High Power Wireless Outdoor PoE Access Point (TEW-455APBO) 14 dBi Outdoor High-Gain Directional Antenna (TEW-OA14D) Internet Cable PoE Power Adapter (TEW-ASAL1) Cable/DSL Modem PoE Power Adapter Cable/DSL Advanced 10/100Mbps VPN Firewall Router Multi-Port Print Server (TW100-BRV304) 16-Port 10/100Mbps...

  • Page 5: Hardware Installation

    2. Hardware Installation Note: Please connect the computer configuring the TEW-455APBO to the same switch/hub. 1. Remove the screw and washer from the grounding hole using a screwdriver. 2. Align one end of the grounding wire over the hole. Then connect the screw and washer back in.
  • Page 6 RJ-45 plug. 9. Insert the gasket to the front end of the connector. Then put the screw nut on the back. 10. Connect the clamp ring and seating nut to the PoE port on the rear of the TEW-455APBO. English...
  • Page 7 11. Connect the opposite end of the Ethernet cable to the LAN + DC port on the Power over Ethernet Adapter. 12. Connect one end of another Ethernet cable to the LAN port. 13. Connect the opposite end of the Ethernet cable to a LAN port on your network.

  • Page 8: Mounting

    3. Mounting Wall Mounting 1. Align the mounting bracket with the holes on the bottom of the unit and secure it with the screws and washers provided. 2. Use the wall bracket as a template and mark the wall for the correct screw / fastener position.

  • Page 9: Pole Mounting

    6. Insert the mounting bracket into the wall mounting bracket and secure with the washers and screws provided. 7. Adjust the orientation of the antenna as necessary. 8. Once the unit is positioned correctly, tighten all screws. Pole Mounting 1. Align the mounting bracket with the holes on the bottom of the unit and secure it with the screws and washers provided.
  • Page 10 3. Secure the mounting bracket to the pole mounting bracket using the nuts and washers provided. 4. Adjust the orientation of the antenna as necessary. English...

  • Page 11: Connecting Trendnet External Antenna

    4. Connecting TRENDnet External Antenna Note: Connecting a TRENDnet External Antenna to the TEW-455APBO requires the TEW-ASAL1. 1. Remove the metal cap from the connector labeled EXT. 2. Screw one end of the TEW-ASAL1 to the EXT connector on the TEW-455APBO.

  • Page 12: Configure The Access Point

    5. Configure the Access Point Note: The Access Point can be configured using the Utility or a Web Browser. For non-Windows users change your computer's IP address to 192.168.10.x (where x is an available address from 1-254). Since the Access Point's default IP address is 192.168.10.100, make sure no other network devices are assigned an IP address of 192.168.10.100.
  • Page 13 4. Click on the Find icon to detect your Access Point. Change the IP to be in the same subnet as your network. 5. Click View and click Update to save changes. 6. Open your web browser, type the IP address of Access Point in the Address bar, and then press Enter.
  • Page 14 9. Click Reboot AP to save all changes. Your installation is now complete. For detailed information regarding the TEW-455APBO’s configuration and advanced settings, please refer to the Troubleshooting section, User’s Guide CD-ROM, or TRENDnet’s website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...

  • Page 15: Troubleshooting

    Press on the white reset button. Plug the power back in without letting go of the reset button. Wait 10 seconds, then let go of the reset button. The default user name and password is admin. If you still encounter problems or have any questions regarding the TEW-455APBO, please contact TRENDnet’s Technical Support Department.
  • Page 16 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 17 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
