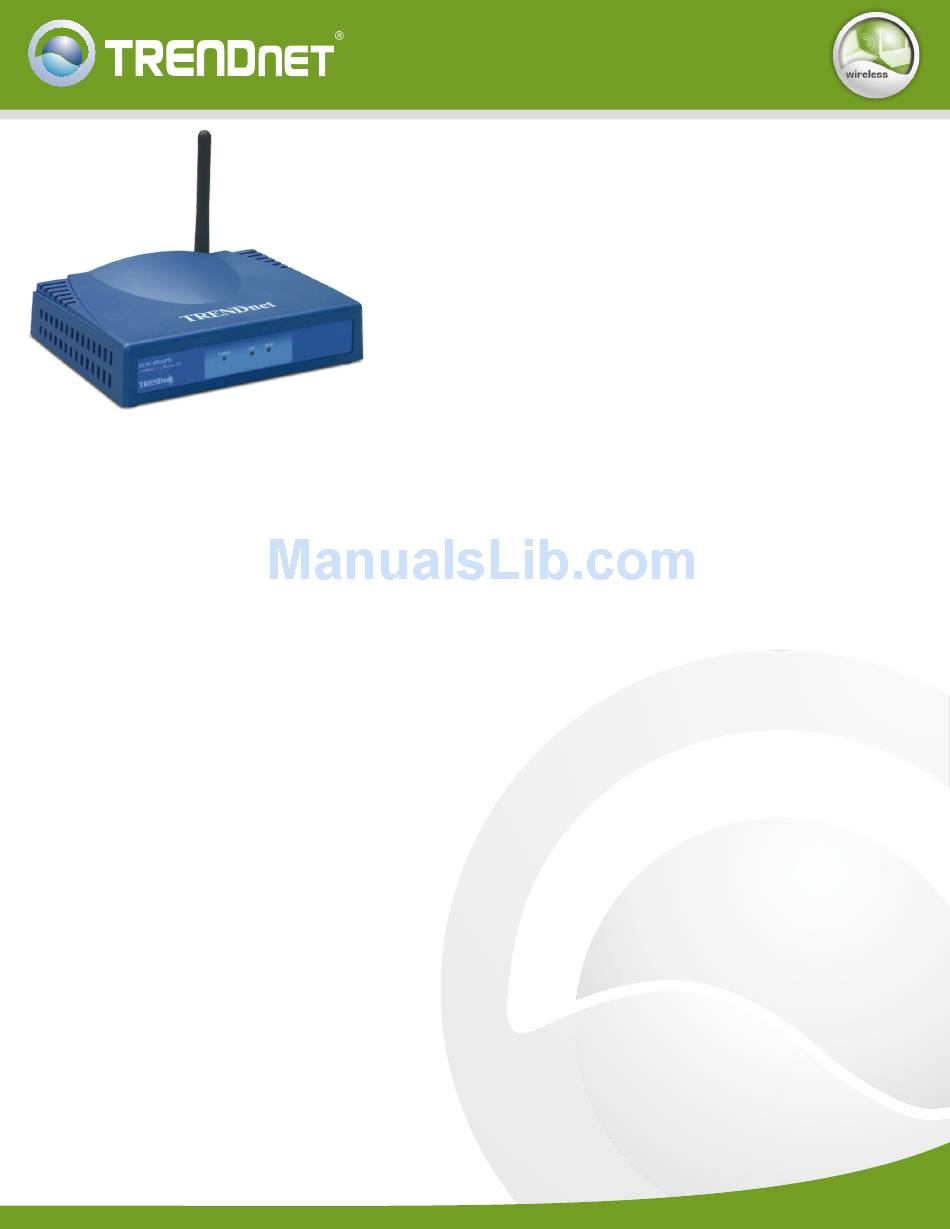

TRENDnet TEW-450APB Specifications

FEATURES

• Wi-Fi Compliant with IEEE 802.11g / 802.11b Wireless Devices
• High-Speed Wireless Access Point with up to 108Mbps Connection
• Supports Access Point, AP Client, Repeater and Bridge (PTP & PTMP) Modes
• Support WDS Enable/Disable Function for AP Client & Repeater Modes
• Supports Super G and XR (eXtended Range) Technology Data Rate up to 108Mbps (In AP Mode only)
• Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
• Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
• Supports ESSID Enable/Disable to Increase Security
• Supports 64/128-bit WEP (Hex & ASCII), WPA and WPA-PSK
• Allows 802.1x and Non-802.1x Clients Running Simultaneously
• Adjust Transmit Power (Full / Half (-3dB)/ Quarter(-6dB)/ Eighth(-9dB)/ Min)
• Easy Configuration with Web Browser and Built-in Flash Memory for Firmware Upgrade
• Range for Indoor of 30 ~ 50 meters (depends on the environment)
• Range for Outdoor of 50 ~ 200 meters (without XR), 400 ~ 450 meters (with XR) (depends on the
environment)
• 3-Year Warranty

BENEFITS

Easy Integration:
Setup your own Wireless Hot Spot fast and easy.
Cost-Effectiveness:
Saves on network cable installation fee and on-line charges.
Security:
64/128-bit WEP and WPA protects Access Point from unwanted wireless clients.
Traffic Control:
Controls traffic with MAC Address Filter feature
Note: Coverage and Speed performance might vary depending on the network environment.
108Mbps 802. 1 1g Wireless Access Point
TEW-450APB
The TRENDnet TEW-450APB 108Mbps High Speed 802.11g
Wireless Access Point with XR support, which achieves "wired"
speeds wirelessly with the latest technology. Using frame bursts,
frame compression, fast frames and dynamic turbo, the TEW-
450APB can have speeds up to 108Mbps. The TEW-450APB is also
compatible with standard 802.11b/g and has WPA-PSK, 64/128-bit
WEP security.
TEW-450APB
rev:01.24.2007
