Summary of Contents for TRENDnet TEW-450APB

  • Page 2: Table Of Contents

    Contents Overview ....................1 Product Feature ................1 System Requirements ..............1 Getting Start ....................2 Know the Wireless Super G Access Point ........2 Connect to the Wireless Super G Access Point ........ 2 Quick Setup with Wizard ..............3 2.3.1 Access the Setting Menu ............

  • Page 3: Overview

    1. Overview 1.1 Product Feature ● Compliance with IEEE 802.11g and 802.11b standards ● Highly efficient design mechanism to provide unbeatable performance ● Achieves data rates up to 54Mbps for 802.11g and 11Mps for 802.11b with wide range coverage; high performance to deliver up to 108Mbps raw data rate for 802.11g ●...

  • Page 4: Getting Start

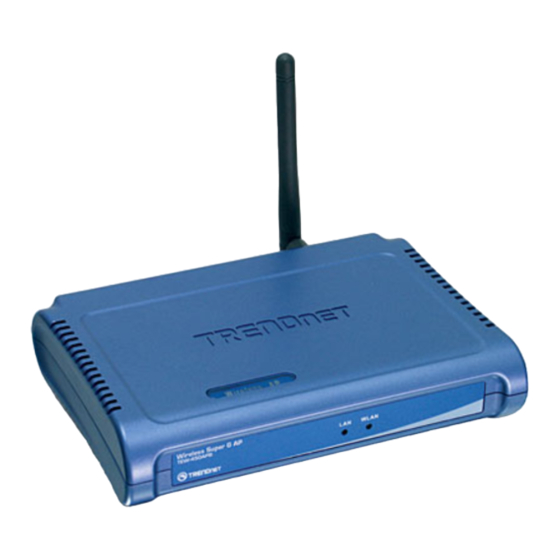

    2. Getting Start 2.1 Know the Wireless Super G Access Point Ports: ● Power Receptor ● Reset Button ● RJ-45 Ethernet Port LEDs: ● Power LED: ON when the unit is powered up ● LAN LED: ON indicates LAN connection; BLINK indicates LAN activity ●...

  • Page 5: Quick Setup With Wizard

    2. ADSL or Cable modem provided by your ISP as part of the broadband connection installation. 3. A Router that connects to the ADSL/Cable modem for Internet connection sharing. 4. An Access Point to connect with the Router to form a wireless infrastructure network.

  • Page 6: Setup With Wizard

    Now, the main screen appears 2.3.2 Setup with Wizard Setup wizard is provided as the part of the web configuration utility. Follow the step-by-step process to configure your Access Point by clicking on the “Wizard” button on the function menu. The following screen will appear. Please click “Next”...
  • Page 7 Step 1: Set Password Set a desired password and then click “Next” to continue. Step2: Set WLAN Connection Enter an SSID for your access point and select a channel. Then, click “Next” to continue. The default SSID is TRENDnet.
  • Page 8 Step 3: Set WEP Encryption If you like to enable WEP, please click “Enabled”. Then, select the key size of WEP encryption and enter the key value in the key text box. Then click “Next” to continue. Step 4: Restart The Setup wizard is now completed.

  • Page 9: Configuration Through Web Browser

    Configuration through WEB Browser 3.1 Status The status page shows you the following information. Firmware Version: Shows the current firmware version. LAN: Shows the Mac address, IP address (default: 192.168.10.100), Subnet Mask, Gateway Address. The current LAN traffic calculated in terms of number of packets sent and received by AP through wired connection is also displayed.

  • Page 10: Basic Setting

    View Log: Upon clicked, the page will change to log page. The log page records every event and the time that it happens. You may clear the entries recorded in the log by clicking the “Clear Log” button, and refresh the screen to show the latest log entries by clicking the “Refresh” button.
  • Page 11 AP Name: The name of the AP, which can be used to identify the Access Point among the all the Access Points in the wireless network. SSID: Service Set Identifier, which is a unique name shared among all clients and nodes in a wireless network. The SSID must be identical for each clients and nodes in the wireless network.
  • Page 12 Key 1 ~ Key 4: Enables user to create an encryption scheme for Wireless LAN transmissions. Manually enter a set of values for each key. Select a key to use by clicking the radio button next to the key. Apply: For the changes made to any of the items above to be effective, click “Apply”.
  • Page 13 WPA / WPA2: If WPA or WPA2 is selected, the below screen is shown. Please set the length of the encryption key and the parameters for the RADIUS server. RADIUS Server 1: Enter the IP address and the Port number to be used by the Primary Radius Server, enter the Shared Secret, which is used by the Radius Server.

  • Page 14: Ip Setting

    3.3 IP Setting This page allows you to configure the IP and DHCP settings of the Access Point. The default IP address of this access point is 192.168.10.100 with the subnet mask of 255.255.255.0. You can type in other values for IP Address, Subnet Mask and Gateway and click “Apply”...

  • Page 15: Advanced Setting

    3.4 Advanced Setting This page contains advanced wireless options. AP Mode: Select one of the AP operating modes for different application of Access Point: 1. AP mode: The normal Access Point operating mode which forms a wireless ESS network with its wireless clients. 2.
  • Page 16 Remote Bridge MAC filed: key in the Mac address key in Wireless (not LAN) MAC address of remote AP in Bridge mode. 3. Multiple Bridge mode: Configure to the multiple bridge mode; these APs will be a LAN to LAN wireless Ethernet bridge between two or more separated Ethernet LAN segments.
  • Page 17 TX Rates (MBps): Select one of the wireless communications transfer rates, measured in megabytes per second, based upon the speed of wireless adapters connected to the WLAN. CTS Mode (clear to send): None- disable CTS function. Always- Regardless of wireless environment (11b or 11g), platform will always transfer 11b packet. Auto- AP soon detected the wireless environment and decided the transmission packet, either 11b or 11g.

  • Page 18: Security

    3.5 Security This page allows you to configure the security features supported by this Access Point.

  • Page 19: Tools

    Administrator id: Allow you change the administrator user id. Password: Allow you to change the new login password. Follow the steps below: 1. Enter the new password in the “AP Password New:” field. 2. Enter the new password again in the “Confirm” field. 3.
  • Page 20 Restore Settings: Click on the “Browse” button to open a FileOpen Dialog box, where you get to select the file, which you save previous settings and configurations. Upon selecting the saved file, click “Restore” and complete the restore process when the access point re-operates after it restarts. Restore to default: Click on “Default”...

  • Page 21: Glossary

    Glossary Access Point: An internetworking device that seamlessly connects wired and wireless networks. Ad-Hoc: An independent wireless LAN network formed by a group of computers, each with a network adapter. AP Client: One of the additional AP operating modes offered by 54Mbps Access Point, which allows the Access Point to act as an Ethernet-to-Wireless Bridge, thus a LAN or a single computer station can join a wireless ESS network through ASCII: American Standard Code for Information Interchange, ASCII, is one of...
  • Page 22 Browser: An application program that enables one to read the content and interact in the World Wide Web or Intranet. BSS: BSS stands for “Basic Service Set”. It is an Access Point and all the LAN PCs that associated with it. Channel: The bandwidth which wireless Radio operates is divided into several segments, which we call them “Channels”.
  • Page 23 Encryption: A security method that uses a specific algorithm to alter the data transmitted, thus prevent others from knowing the information transmitted. ESS: ESS stands for “Extended Service Set”. More than one BSS is configured to become Extended Service Set. LAN mobile users can roam between different BSSs in an ESS.
  • Page 24 MAC Address: Media Access Control Address is a unique hex number assigned by the manufacturer to any Ethernet networking device, such as a network adapter, that allows the network to identify it at the hardware level. Multicasting: Sending data to a group of nodes instead of a single destination. Multiple Bridge –...
  • Page 25 Subnet Mask: The method used for splitting IP networks into a series of sub-groups, or subnets. The mask is a binary pattern that is matched up with the IP address to turn part of the host ID address field into a field for subnets. TCP/IP: Transmission Control Protocol/ Internet Protocol.
  • Page 26 TEW-450APB – 3 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDware shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
  • Page 27 LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDWARE NEITHER ASSUMES AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY CONNECTION WITH...
