Fora Diamond Mini Owner's Manual

Hide thumbs Also See for Diamond Mini:
Table of Contents

Advertisement

Quick Links

311-4283000-005
105*148mm/
80P/
/ 24 /
JF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Diamond Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fora Diamond Mini

Summary of Contents for Fora Diamond Mini

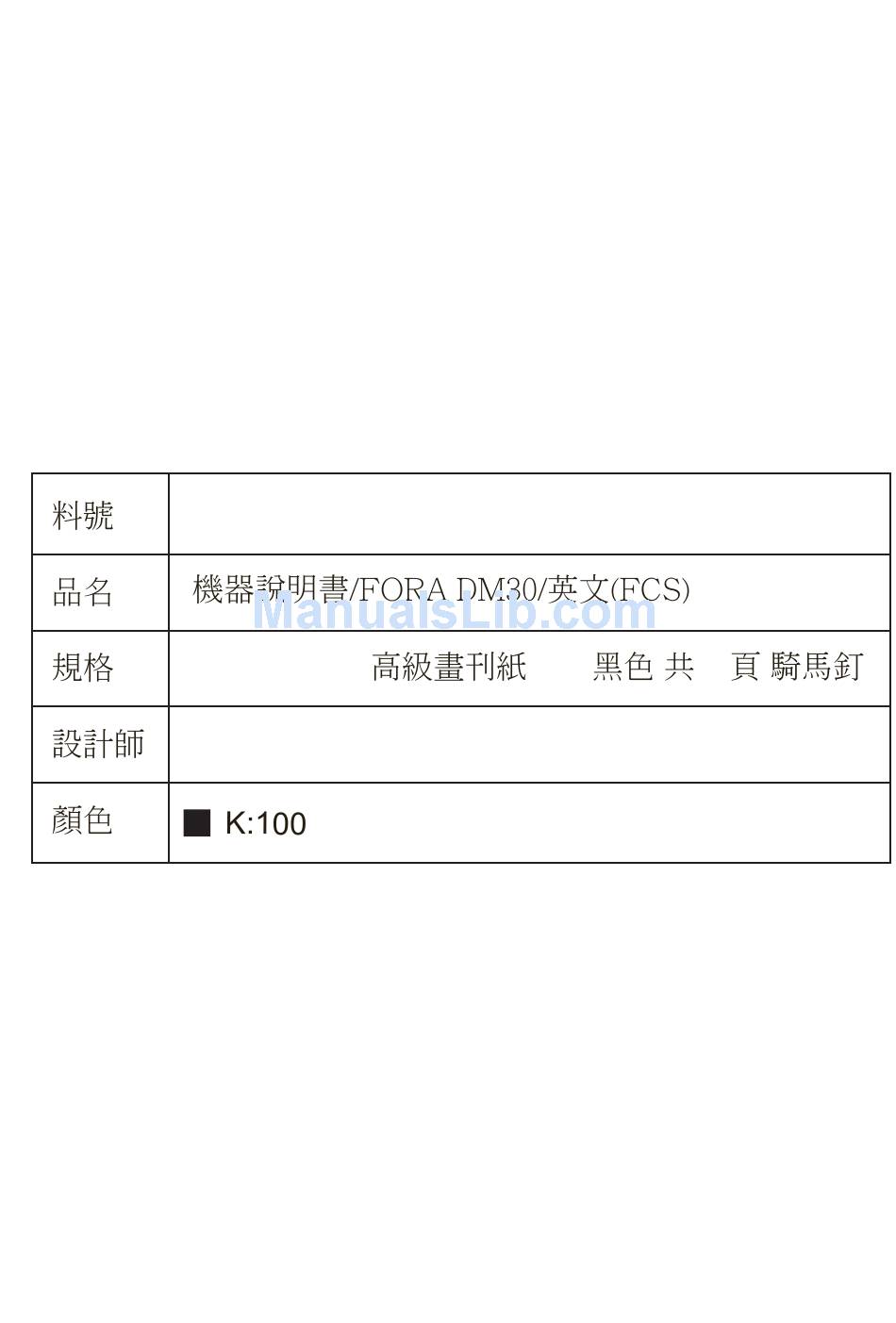

  • Page 1 311-4283000-005 105*148mm/ 80P/ / 24 /...
  • Page 2 Blood Glucose Monitoring System Owner’s Manual...

  • Page 4: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS READ BEFORE USE INTENDED USE THE APPEARANCE AND KEY FUNCTIONS METER DISPLAY FORA Diamond MINI TEST STRIPS SETTING THE METER AND DELETING THE FOUR MEASURING MODES CHECKING THE SYSTEM WITH CONTROL SOLUTIONS HOW TO PERFORM A CONTROL SOLUTION TEST...

  • Page 5: Important Safety Instructions

    These products have been designed, tested, and proven to work together as a system to produce accurate blood glucose test results. Only use FORA Diamond MINI test strips and control solutions with the FORA Diamond MINI Blood Glucose Monitoring System.

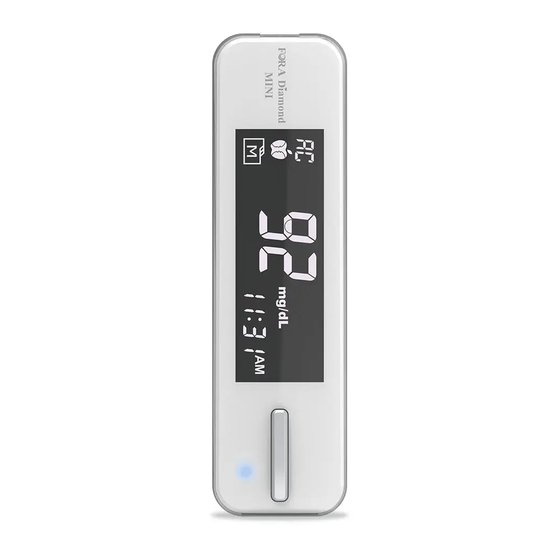

  • Page 6: The Appearance And Key Functions

    APPEARANCE AND KEY FUNCTIONS OF THE METER Display Screen Charging indicator/ Bluetooth indicator (for DM30b) Test Slot Main Button SET Button Data Port Battery Cover NOTE: The meter will turn off automatically after 180 seconds without any action or you can press and hold the Main button for 3 seconds to turn off the meter.

  • Page 7: Fora Diamond Mini Test Strips

    FORA Diamond MINI TEST STRIPS Your system measures the amount of sugar (glucose) in whole blood. Blood is applied to the absorbent hole on the test strip and is automatically drawn into the reaction cell where the reaction takes place.
  • Page 8 2. Setting the time format Press Main button to select the desired time format --- 12h or 24h. Press SET. 3. Setting the time With the hour flashing, press Main button until the correct hour appears. Press SET. With the minute flashing, press Main button until the correct minute appears.
  • Page 9 Press Main button to select On , then press SET to set the hour. When the hour is flashing, press Main button to add an hour. Press SET to confirm and go to minutes, press Main button to add one minute.

  • Page 10: The Four Measuring Modes

    THE FOUR MEASURING MODES The meter provides you with four modes for measuring, General, AC, PC and QC. USE WHEN MODES any time of day without regard to time since last General meal (displays as Gen ) no food intake for at least 8 hours 2 hours after a meal testing with the control solution You can switch between each mode by:...

  • Page 11: How To Perform A Control Solution Test

    HOW TO PERFORM A CONTROL SOLUTION TEST STEP 1. Insert test strip Insert a test strip into the test slot with the contact bars end first and facing up. (Contact bars must be inserted all the way into the meter or you may get an inaccurate test result.) The meter turns on automatically and displays the following in sequence: When the "...

  • Page 12: Testing Your Blood

    STEP 2. Apply control solution Shake the control solution vial thoroughly before use. Squeeze out a drop and wipe it off, then squeeze out another drop and place it on the tip of the vial cap. Hold the meter to move the absorbent hole of the test strip to touch the drop.
  • Page 13 STEP 3. Apply blood sample Obtain a drop of blood of at least 0.5 µL using a lancing device. Use the clear cap for sites other than fingers and refer to the strip package insert for more details. Gently apply the drop of blood to the absorbent hole of the test strip at a titled angle.

  • Page 14: Viewing The Meter Memory

    VIEWING THE METER MEMORY VIEWING RESULTS Your Meter stores the 450 most recent blood glucose test results with date and time in its memory. You can review the test results with these easy steps. STEP 1. Enter the memory mode With the meter turned off, press the Main button.

  • Page 15: Viewing Day Average Results

    (100 mg/dL = 5.6 mmol/L). DOWNLOADING RESULTS ONTO A COMPUTER FORA Diamond MINI has 2 types of transmission methods; your meter uses either USB or Bluetooth to transmit the data, please check your meter box for the transmission method of your meter.

  • Page 16: Data Transmission Via Cable (For Dm30A)

    DATA TRANSMISSION VIA CABLE (FOR DM30a) You can use the meter with an USB cable and the Health Care Software System to view your test results on your personal computer. To learn more about the Health Care Software System or to obtain a USB cable separately, please contact local customer services or the place of purchase for assistance.

  • Page 17: Battery Recharge

    1. Make sure your meter is already paired with your device with iOS (5.0.1 or higher) or Android system by following instructions of the setting mode in Step 6. 2. Install the software on your device with iOS (5.0.1 or higher) or Android system.

  • Page 18: Display Messages And Problemsolving Guide

    NOTE : • It should take approximately 2 hours to be fully recharged. Recharging the battery does not affect the test results stored in the memory. • The USB cable is for battery recharging and data transmission with a computer. If you wish to recharge through a wall outlet, please obtain a USB adapter.
  • Page 19 MESSAGE WHAT IT MEANS ACTION The " "symbol appears with this message. This Replace the battery means that the battery immediately. does not have enough power remaining for a test. Repeat test with a new test strip. If the error A used test strip is message re-appears, inserted, or there is an...

  • Page 20: Symbol Information

    SYMBOL INFORMATION SYMBOL REFERENT SYMBOL REFERENT In vitro diagnostic Batch code medical device Do not reuse Manufacturer Consult instructions for use Serial number Caution, consult Keep away from sunlight accompanying documents Keep dry Sterilized using irradiation Do not use if package Temperature limitation is damaged Use by/ Expiry date...

  • Page 21: Specifications

    SPECIFICATIONS Model No.: FORA DM30 Dimension: 93.0mm (L) x 26.03 mm (W) x 5.57 mm (H) Weight: 26.8g (without battery) Power Source: Li-Polymer battery Display: LCD Memory: 450 measurement results with date and time External Output: USB/ Bluetooth Automatic detection of electrode insertion...

  • Page 25: Blood Glucose Monitoring System

    Blood Glucose Monitoring System ForaCare Suisse AG For self-testing CH-9000 St. Gallen 0459 www.foracare.ch...
