Summary of Contents for Windsor Titan 708

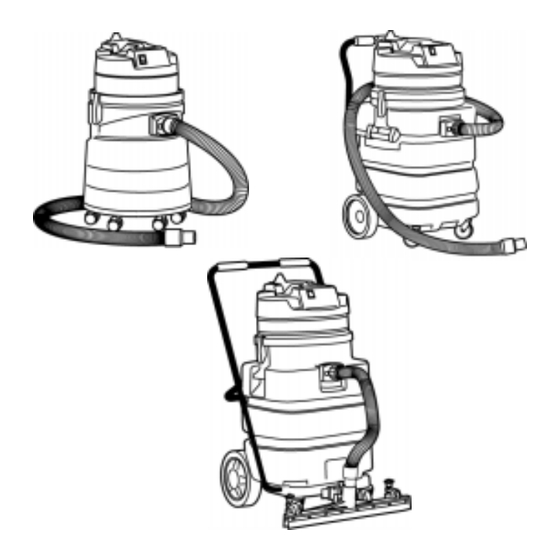

- Page 1 Operating Instructions MODELS: T708 T716 T720 TP IPX4 230 VOLT ONLY 120 VOLT ONLY Read ALL instructions before using the machine . 98919 08/16/06 98919 0 8/12/04...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. WARNING DANGER: Failure to read and observe all DANGER statements could result in severe bodily injury or death. - Page 3 DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not properly disconnected from the power source. Disconnect the power supply before attempting any maintenance or service. WARNING: Operating a machine without observing all labels, decals, etc., could result in injury or damage.
- Page 4 THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors. EXTENSION CORDS: If an extension cord is used, the wire size must be at least one size larger than the power cord on the...
- Page 5 VACUUM AND ACCESSORIES Motor Block ATTENTION: The Polyester Filter must be cleaned after each use to maintain efficient suction. On/Off Switch Float: Keeps liquid out of Motor Block Polyester Filter: Remove for use with liquids IMPORTANT INSTRUCTIONS Hooks: Secure Motor Block to Tank Suction Inlet •...
-
Page 6: Operation
OPERATION This machine is a commercial vacuum designed for wet and dry pick-up. Dry soil can be vacuumed directly into the tank. To empty the tank of dry soil, remove the top and dump into trash receptacle. For wet pick-up, remove polyester filter. The machine is equipped with a float shut-off. -
Page 7: Periodic Maintenance
PERIODIC MAINTENANCE (Every six to twelve months): Check filter for wear, replace dirt saturated filters that do not respond to normal cleaning. Inspect gasket seals and replace those which have begun to leak. Replace both carbon brushes when either is Examine carbon motor brushes and commutator. - Page 8 SERVICING THE VAC MOTOR CARBON BRUSH REPLACEMENT Disconnect power cord from power source. To access the vac motor, remove the screws that attach the main cover to the head assembly and set the cover to one side. Remove the motor cover by removing two screws.
- Page 9 Motor, 120 Volt S83891S Motor, 230 Volt S83901 Gasket S83866 Disk, Noise Reduction S81189GG6 Base, Motor, Gray T9008 Label, Windsor Logo T708 FILTER GROUP Part Num. Description Qty. S83706 Bushing S83724 Screw, 5 x 25 S82823 Body, Filter Support S83138...
- Page 10 T716/T720TP VACUUM MOTOR ASSEMBLY Part Num. Description Qty. S81122 Cord, 120 Volt S80117 Cord, 230 Volt S80138 Strain Relief S80139 Bracket S81006 Screw, 5 x 20 S81054 Screw, 5 x 50 S86097AUG6 Handle, Gray S81979 Screw, 5 x 25 S81054 Screw, 5 x 50 S81005 Screw, 5 x 14...
- Page 11 T716 TANK ASSEMBLY Part Num. Description Qty. Part Num. Description Qty. S82558V Handle S83835 Axle Cap S82637 Tank – 400 S82607 Spacer, Wheel S82016 Screw, M5x30 S81006 Screw, M5 x 20 S82584AG6 Retainer, Tank S82555 Axle S82846 Gasket S80834 Nut, Flange, 1-1/4 S82593 Deflector, Tank S80256...
- Page 12 T720TP TANK ASSEMBLY Part Num. Description Qty. Part Num. Description Qty. S82048 Tank – 400 S82586AG6 Retainer, Tank Adapter S81026 Screw, M5 x 30 S81050 Screw, M5 x 35 S83883 Plastic Washer S82594BL Push Button, Two-Piece, Blue S83028 Hook, Latch T9007 Label, Titan S82970...
- Page 13 TSQ16 FRONT-MOUNTED SQUEEGEE Part Num. Description Qty. BD705205 Hose Assembly BD715508 Housing BD735608 Bolt, Guide Wheel, 1/4-20 x 1.75"L. BD735607 Guide Wheel BD735611 Jam Nut, 1/4-20 serrated flanged BD735609 Nylock Nut, 1/4-20 BD735602 Slotted Blade BD735601 Solid Blade BD715509 Blade Support BD735604 Blade End Screw, 10-32 x 1/2"L, SS BD735605 Blade End Screw Nut, 10-32, Nylock BD735603 Blade Attach’t Screw, 10-32 x 5/8"L SS 18...
-
Page 14: Spare Parts
LABELS T9008 Windsor T9007 Titan Logo ACCESSORIES TSQ16 Front Mounted Squeegee TSQ20 Front Mounted Squeegee S72741 Paper Bag S82860 Filter Bag, Standard for 708 Model S82845 Filter Bag, Standard for T716 and T720TP S82852* Filter Cartridge, Paper, Optional for T716 and T720TP...
