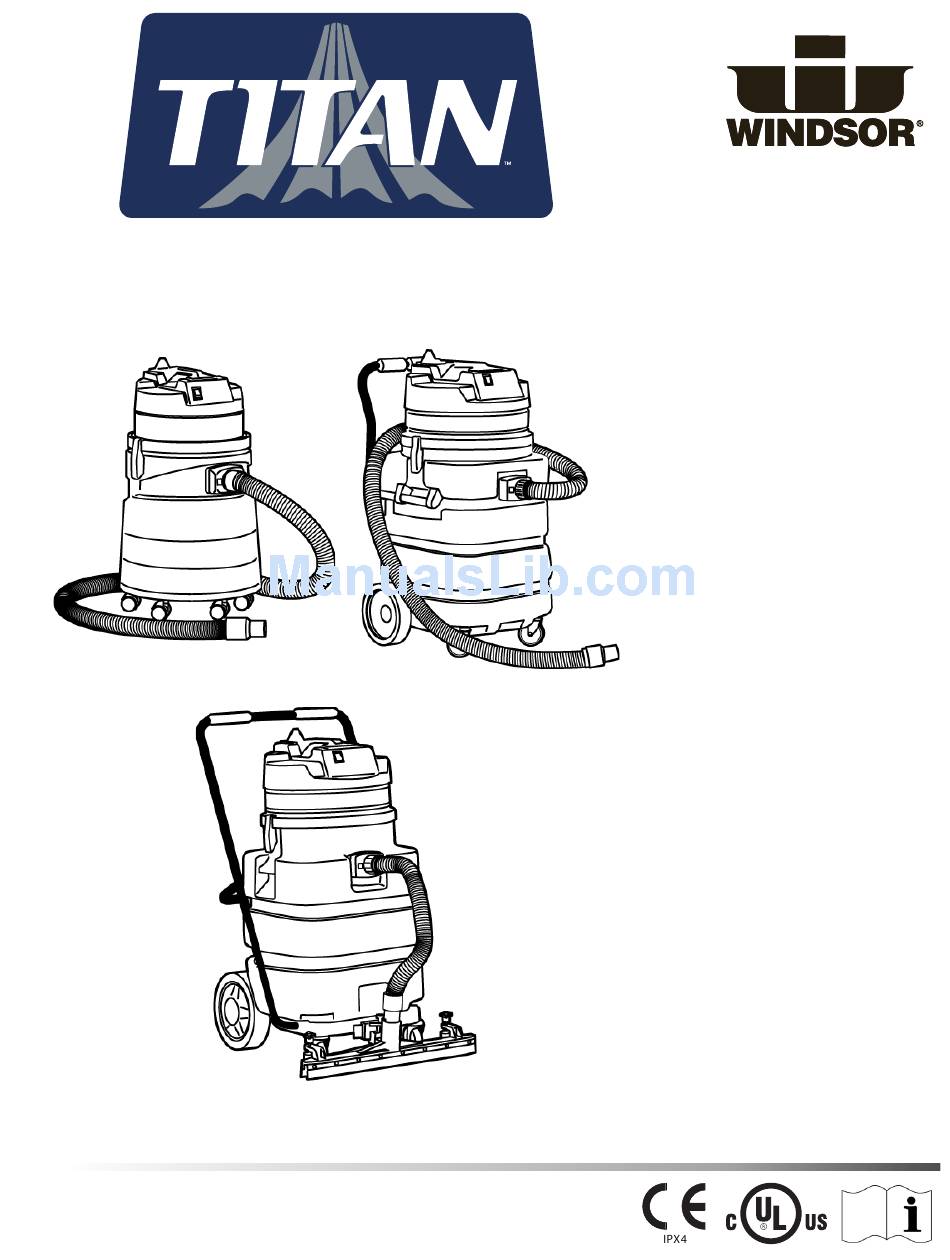

86369590-B
12/11/12
Wet / Dry Vacuums
Operating instructions (ENG)
Read these instructions before using the machine.
MODELS:
T708
10130060
T708IE
10130070
T716
10130080
T716IE
10130090
T720TP
10130100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Titan T708 and is the answer not in the manual?

Questions and answers

Summary of Contents for Windsor Titan T708

  • Page 1 Wet / Dry Vacuums Operating instructions (ENG) MODELS: T708 10130060 T708IE 10130070 T716 10130080 T716IE 10130090 T720TP 10130100 Read these instructions before using the machine. 86369590-B 12/11/12...
  • Page 2: Machine Data Label

    This machine is a commercial vacuum designed for wet and dry pick-up. Warranty Registration Thank you for purchasing a Windsor product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product.
  • Page 3: Table Of Contents

    Filter T716 / T720TP ..... . . 20 Tank T708....... 22 Tank T716.
  • Page 4: How To Use This Manual

    How To Use This Manual This manual contains the following sections: The PARTS LIST section contains assembled parts illustrations and corresponding parts list. The parts lists • How to Use This Manual include a number of columns of information: • Safety •...
  • Page 5: Safety

    Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Failure to read and observe all DANGER statements could result in severe bodily injury or death.
  • Page 6 Safety Do not handle plug or appliance with wet hands. Always install float before any wet pick-up operation. Before opening cover, switch off machine. Wait until the fan stops completely or dust and debris may be ejected. If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to an Authorized service center.
  • Page 7: Grounding Instructions

    Safety Grounding Instructions: This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least resis- tance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug.
  • Page 8: Operations

    Operations Vacuum And Accessories Components NOTE: The Polyester Filter must be cleaned after each use to maintain efficient suction. A. Motor Block B. On/Off Switch Important Instructions C. Float: Keeps liquid out of Motor Block • Before use, the equipment must be correctly D.
  • Page 9 Operations This machine is a commercial vacuum designed for wet and dry pick-up. Dry soil can be vacuumed directly into the tank. To empty the tank of dry soil, remove the top and dump into trash receptacle. For wet pick-up, remove polyester filter. The machine is equipped with a float shut-off.
  • Page 10: Maintenance

    Maintenance Periodic Maintenance (Every six to twelve months): 1. Check filter for wear, replace dirt saturated filters that do not respond to normal cleaning. 2. Inspect gasket seals and replace those which have begun to leak. Replace both carbon brushes when either is less 3.
  • Page 11: Servicing The Vac Motor

    Maintenance Servicing The Vac Motor Carbon Brush Replacement 1. Disconnect power cord from power source. 2. To access the vac motor, remove the screws that attach the main cover to the head assembly and set the cover to one side. 3.
  • Page 12 Notes: 86369590 Titan Vacuum...
  • Page 13 Parts PARTS 86369590 Titan Vacuum...
  • Page 14: Vacuum Motor Assembly - T708 / T708Ie

    Vacuum Motor Assembly - T708 / T708IE 86369590 Titan Vacuum...
  • Page 15 Vacuum Motor Assembly - T708 / T708IE SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 8.616-284.0 S81122 CORD, 120 VOLT 8.616-283.0 S80117 CORD, 230 VOLT 8.616-407.0 S80138 STRAIN RELIEF 8.616-421.0 S80139 TERMINAL CLIP 8.616-386.0 S81006 SCREW, 5 X 20 8.616-422.0...
  • Page 16 Vacuum Motor Assembly - 86369590 Titan Vacuum...
  • Page 17: Vacuum Motor Assembly - T716 / T720Tp

    8.616-378.0 S80310 RING 8.616-320.0 S83901 L-GASKET 8.616-347.0 S81120S MOTOR, 120 VOLT 8.616-351.0 S83891S MOTOR, 230 VOLT 8.616-350.0 S83451 MOTOR SEAL S82454 FILTER 8.616-310.0 S83456 FILTER 8.616-264.0 S83519 BASE PLUG 8.616-263.0 S83108GG6 BASE 8.616-341.0 T9008 LABEL, WINDSOR LOGO 86369590 Titan Vacuum...
  • Page 18: Filter Group T708

    Filter Group T708 86369590 Titan Vacuum...
  • Page 19 Filter Group T708 SERIAL NO. PART NO. ALT NO. DESCRIPTION NOTES FROM 86162730 S83706 BUSHING 86163950 S83724 SCREW, 5 X 25 86162690 S82823 BODY, FILTER SUPPORT 86163080 S83138 FILTER/STRAINER 86163150 S82676 FLOAT S80123 RING, FILTER 86163050 S82860 FILTER BAG 86164130...
  • Page 20: Filter T716 / T720Tp

    Filter T716 / T720TP 86369590 Titan Vacuum...
  • Page 21 Filter T716 / T720TP SERIAL NO. PART NO. ALT NO. DESCRIPTION NOTES FROM 86162730 S83706 BUSHING 86163950 S83724 SCREW, 5X25 86162690 S82823 BODY, FILTER SUPPORT 86164080 S83117 STRAINER 86163150 S82676 FLOAT 86163010 S80473 FILTER RING 86163020 S82845 FILTER BAG 86164120 S82833 SUPPORT, FILTER 86163030...
  • Page 22: Tank T708

    Tank T708 86369590 Titan Vacuum...
  • Page 23 Tank T708 SERIAL NO. PART NO. ALT NO. DESCRIPTION NOTES FROM 86164190 S82599 TANK 86163800 S81300 RIVET, 5 X 24.5 86164160 S81847G6 TANK CLAMP 86163880 S81050 SCREW, M5 X 35 86163190 S82846 GASKET 86163770 S82585AG6BL RETAINER, TANK ADAPTER 86164010 S82608...
  • Page 24: Tank T716

    Tank T716 86369590 Titan Vacuum...
  • Page 25 Tank T716 SERIAL NO PART NO. ALT NO. DESCRIPTION NOTES FROM 86163270 S82558V HANDLE 86164200 S82637 TANK – 400 86163870 S81026 SCREW, M5X 86163760 S82584AG6 RETAINER, TANK 86163190 S82846 GASKET 86164180 S82593 DEFLECTOR, TANK 86162560 S82652AG6 ADAPTER 86163800 S81300 RIVET, 5 X 24.5 86164160 S81847G6 CLAMP...
  • Page 26: Tank And Cart - T720Tp

    Tank and Cart - T720TP 86369590 Titan Vacuum...
  • Page 27 Tank and Cart - T720TP SERIAL NO. PART NO. ALT NO. DESCRIPTION NOTES FROM 86164170 S82048 TANK – 400 86163870 S81026 SCREW, M5 X 30 86163670 S83883 PLASTIC WASHER 86163310 S83028 HOOK, LATCH 86163750 S82970 RELEASE SWIVEL 86163740 S82969 RELEASE KNOB 86164160 S81847G6 CLAMP...
  • Page 28: Front Mounted Squeegee - Tsq16

    Front Mounted Squeegee - TSQ16 86369590 Titan Vacuum...
  • Page 29 Front Mounted Squeegee - TSQ16 SERIAL NO. PART NO. ALT NO. DESCRIPTION NOTES FROM 86163330 BD705205 HOSE ASSEMBLY 86163390 BD715508 HOUSING BD735608 BOLT, GUIDE WHEEL, 1/4-20 X 1.75"L. 86163220 BD735607 GUIDE WHEEL BD735611 JAM NUT, 1/4-20 SERRATED FLANGED BD735609 NYLOCK NUT, 1/4-20 86163960 BD735602 SLOTTED BLADE...
  • Page 30: Front Mounted Squeegee - Tsq20

    Front Mounted Squeegee - TSQ20 86369590 Titan Vacuum...
  • Page 31 Front Mounted Squeegee - TSQ20 PART SERIAL NO. ALT NO. DESCRIPTION NOTES FROM 86163330 BD705205 HOSE ASSEMBLY 86163390 BD715508 HOUSING BD735608 BOLT, GUIDE WHEEL, 1/4-20 X 175"L 86163220 BD735607 GUIDE WHEEL JAM NUT, 1/4-20 SERRATED BD735611 FLANGED BLADE ATTACH’T SCREW, 10-32 X 5/ BD735603 8"L SS BD735609...
  • Page 32: Accessories

    FILTER CARTRIDGE, HEPA EQUIVALENT, 86163070 S82995 OPTIONAL FOR T716 AND T720TP FILTER CARTRIDGE, HEPA EQUIVALENT, 86163060 S82881 OPTIONAL FOR T708 CARTRIDGE FILTER RETAINER, FOR T716 AND 86163040 S82855 T720TP *Also order PN 86163040 (ALT S82855) Retainer with Filter. 86369590 Titan Vacuum...
  • Page 33: Suggested Spare Parts

    PRV NO DESCRIPTION NOTES FROM 86163520 S8TOEG845 MOTOR BRUSH, 120 VOLT MOTOR 86163530 S8TOGB839 MOTOR BRUSH, 230 VOLT MOTOR 86164150 S80326 SWITCH, ON/OFF 86163050 S82860 POLYESTER FILTER, T708 86163020 S82845 POLYESTER FILTER, T716 AND T720TP 86164080 S83117 STRAINER 86369590 Titan Vacuum...
