the physical installation is complete.
2.1 Install Hard Drive &DVD Writer

2.1.1 Install Hard Drive

Notice: 1. This series supports two SATA hard drives. Please use the hard drive the
manufacturers recommend specially for security and safe field.
2. Please calculate HDD capacity according to the recording setting. Please
refer to "Appendix B Calculate Recording Capacity".
Step1: Loosen the screws to open the top cover of the NVR.
Step2: Connect the power and data cables and place the HDD onto the bottom case as Fig 2-1.
Step3: Secure the HDD with the screws as Fig 2-2.
Note: For convenience installation, please connect the power and data cables first and
then secure the HDD by tightening the screws.

2.1.2 Install DVD Writer

Notice: 1. The writers must be the compatible devices we recommend. Please refer to

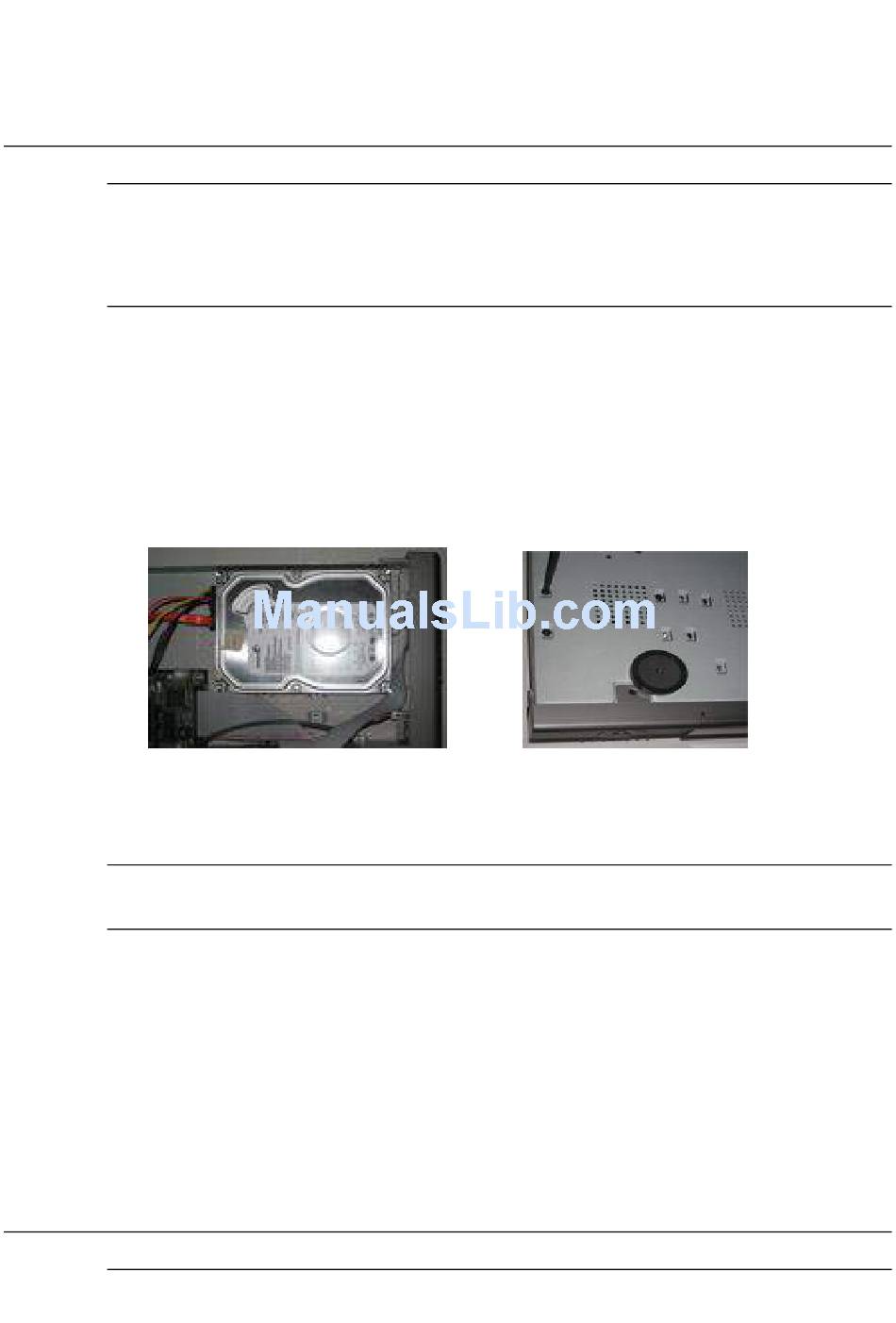

Fig 2-1 Connect HDD
Fig 2-2 Screw HDD
