2

Hardware Installation

Check the unit and the accessories after getting the device. Please don't power up the unit till
the physical installation is complete.

2.1 Install Hard Drive

Notice: 1. This series supports one SATA hard drive. Please use the hard drive the
manufacturers recommend specially for security and safe field.
2. Please calculate HDD capacity according to the recording setting. Please
refer to "Appendix B Calculate Recording Capacity".
Step 1: Loosen the screws to open the top cover.
Step 2: Connect the power and data cables and then place the HDD onto the bottom case as
Fig 2-1.
Step 3: Secure the HDD with the screws as Fig 2-2.
Note: For convenience installation, please connect the power and data cables first and
then fix the HDD by tightening the screws.

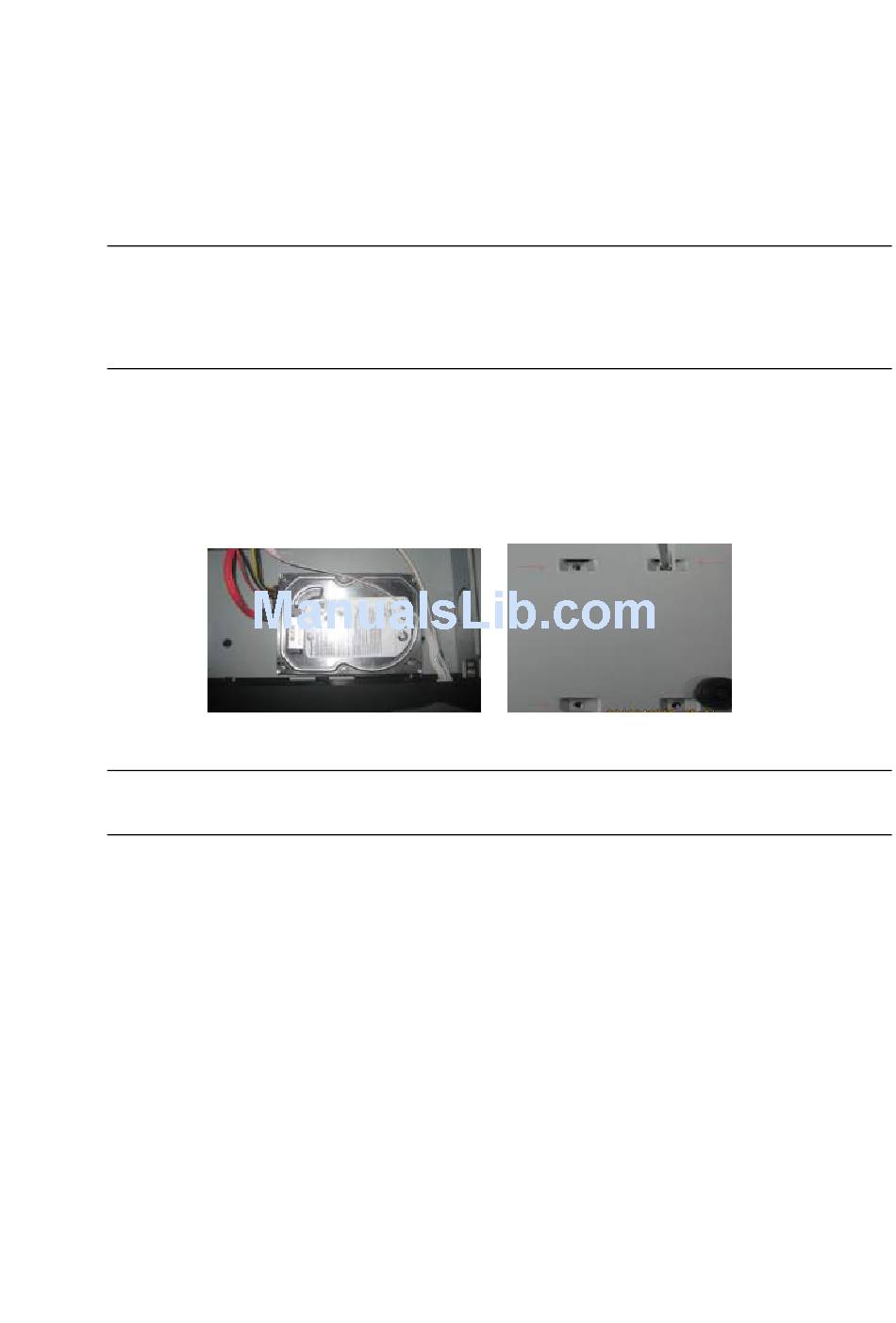

Fig 2-1 Connect HDD
Fig 2-2 Screw HDD
