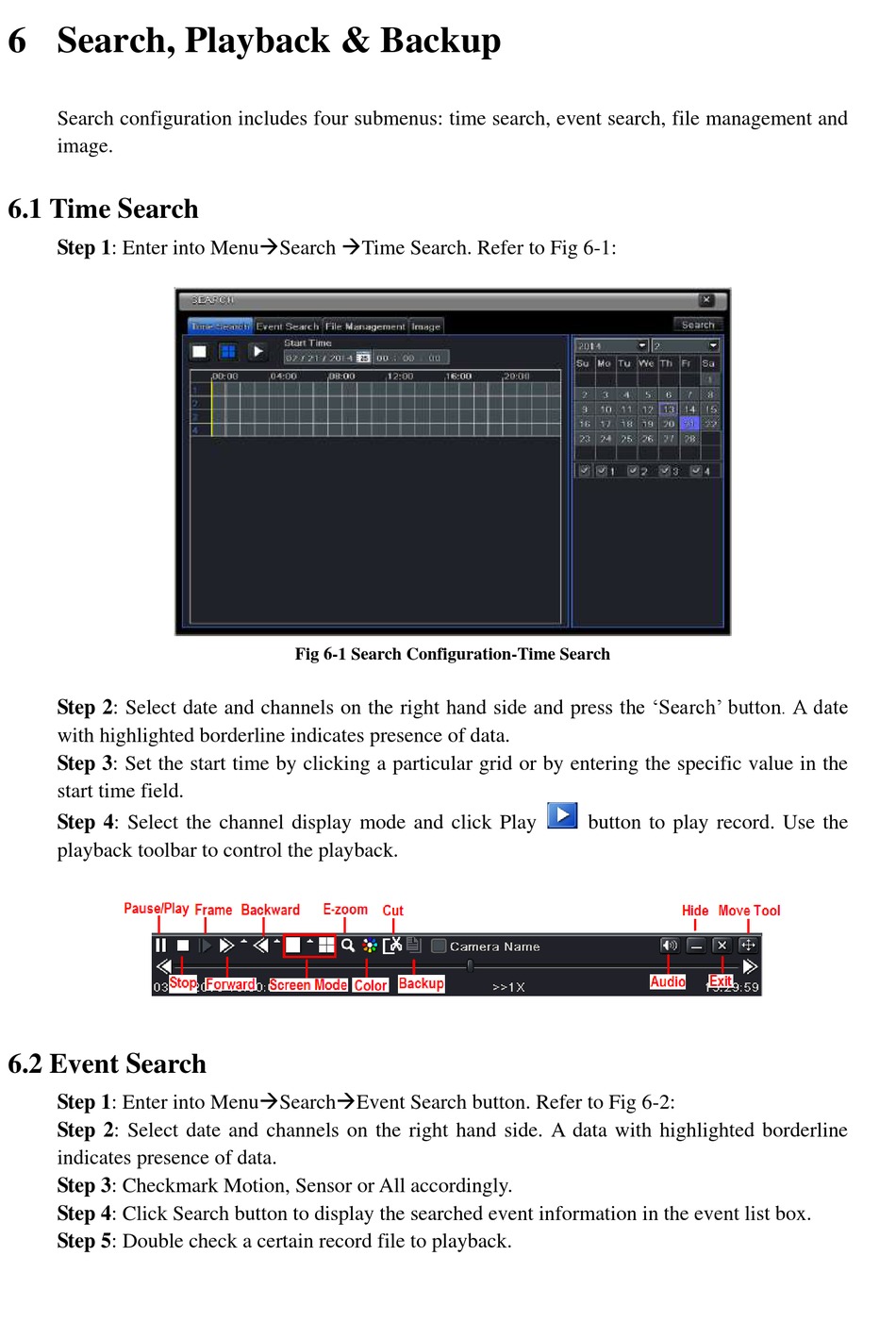

6 Search, Playback & Backup

Search configuration includes four submenus: time search, event search, file management and

image.

Step 1: Enter into MenuSearch Time Search. Refer to Fig 6-1:

Step 2: Select date and channels on the right hand side and press the 'Search' button. A date

with highlighted borderline indicates presence of data.

Step 3: Set the start time by clicking a particular grid or by entering the specific value in the

start time field.

Step 4: Select the channel display mode and click Play

playback toolbar to control the playback.

Step 1: Enter into MenuSearchEvent Search button. Refer to Fig 6-2:

Step 2: Select date and channels on the right hand side. A data with highlighted borderline

indicates presence of data.

Step 3: Checkmark Motion, Sensor or All accordingly.

Step 4: Click Search button to display the searched event information in the event list box.

Step 5: Double check a certain record file to playback.

Fig 6-1 Search Configuration-Time Search

button to play record. Use the
