Hardware Installation

2

2.1 Install Hard Drive

Check the unit and the accessories after getting the DVR. Please don't power up the unit till the
physical installation is complete.
Notice: 1. This series support one SATA hard drive. Please use the hard drive the
manufacturers recommend specially for security and safe field.
2. Please calculate HDD capacity according to the recording setting. Please refer to
"Appendix B Calculate Recording Capacity".

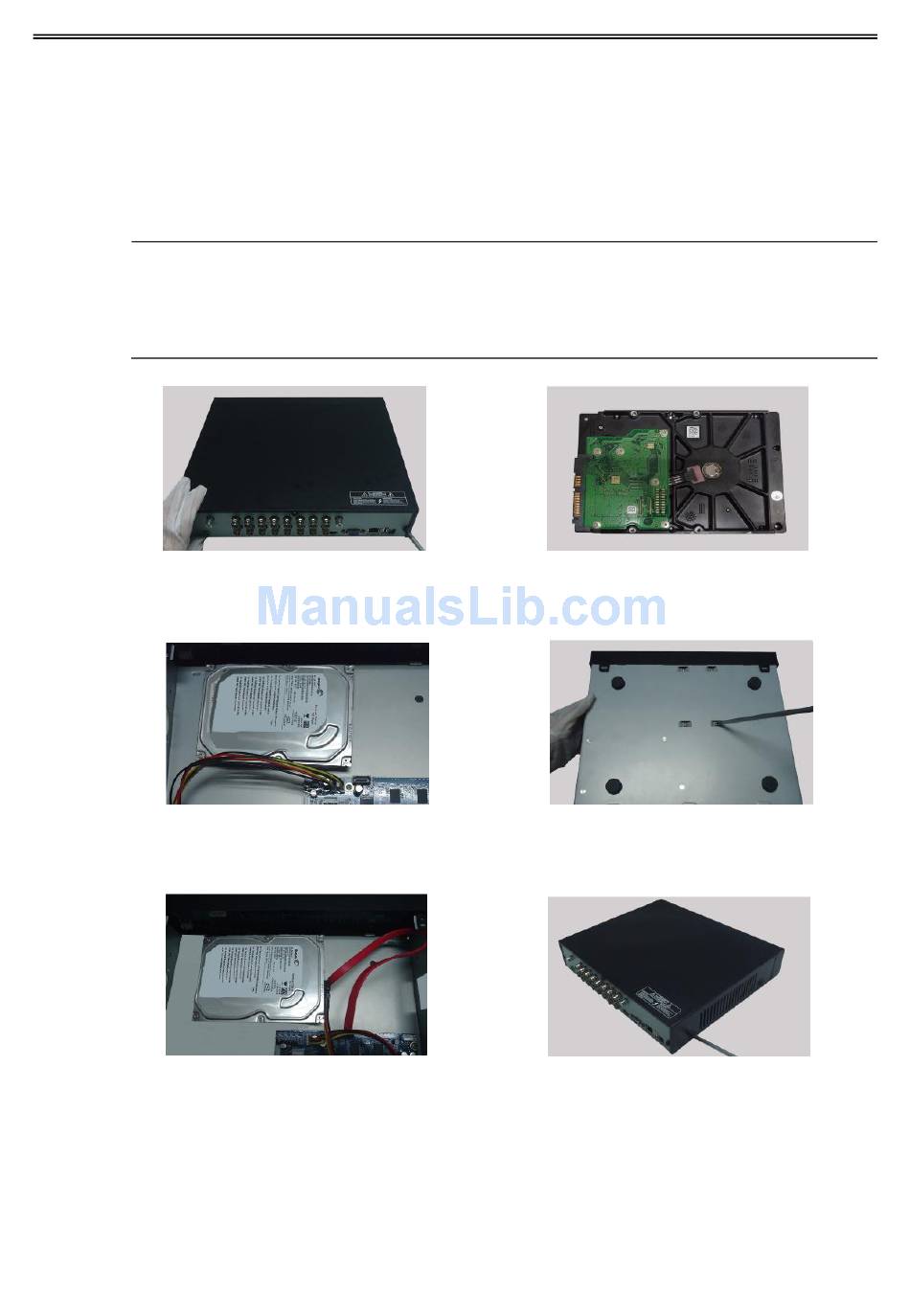

① Loosen the screws on the back and side
of the device to remove the cover.
③ Put the HDD on the bottom of the
device.
⑤ Connect the power and data cables.
AHD DVR User Manual
④ Turn over the device and fix the HDD
with the screws.
⑥ Install the cover back and fix it with the
screws.
3
② Take out the HDD.
