aoyue INT 2702A+ Instruction Manual

Lead-free repairing system
Hide thumbs Also See for INT 2702A+:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Enlarged version

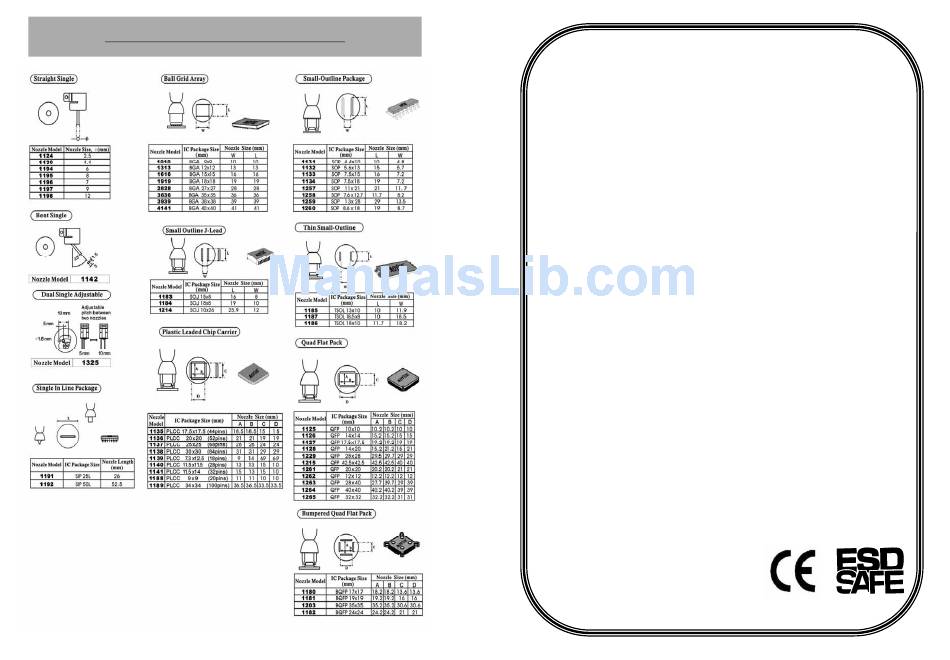

REPLACEMENT AIR NOZZLES
(*) Sold Separately
Manufacturer:
AOYUE TONGYI ELECTRONIC EQUIPMENT FACTORY
Jishui Industrial Zone, Nantou, Zhongshan City,
Guangdong Province, P.R.China
http://www.aoyue.com
24
AOYUE
I
2702A+
I
2702A+
NT
NT
Lead-Free
Repairing System

INSTRUCTION MANUAL

Thank you for purchasing Aoyue Int2702A+ Repairing System.
It is important to read the manual before using the equipment.
Please keep manual in accessible place for future reference.
®

Advertisement

Table of Contents
loading

Related Manuals for aoyue INT 2702A+

Summary of Contents for aoyue INT 2702A+

  • Page 1: Instruction Manual

    2702A+ 2702A+ Lead-Free Repairing System INSTRUCTION MANUAL Thank you for purchasing Aoyue Int2702A+ Repairing System. It is important to read the manual before using the equipment. Please keep manual in accessible place for future reference. (*) Sold Separately Manufacturer: AOYUE TONGYI ELECTRONIC EQUIPMENT FACTORY Jishui Industrial Zone, Nantou, Zhongshan City, Guangdong Province, P.R.China...

  • Page 2: Table Of Contents

    REPLACEMENT TIPS This manual is designed to familiarize and instruct the op- erator with the proper usage and maintenance of the equipment. The “Care and Safety Precautions” section explains the hazards of using any type of soldering or re- working device. Please read carefully and observe the guidelines in order to maximize usage and minimize the risk of injury or accidents .

  • Page 3: Product Description

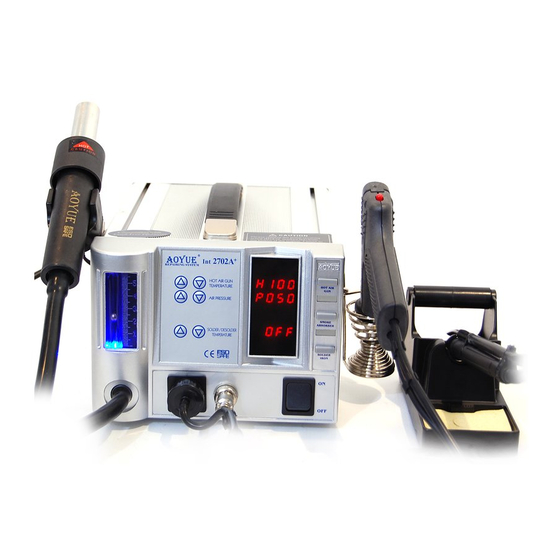

    BASIC TROUBLESHOOTING GUIDE PRODUCT DESCRIPTION PROBLEM 7: AIR PRESSURE LEVEL IS SIGNIFICANTLY LOW NO MATTER HOW The Aoyue I 2702A+ Lead-Free Repairing System is a reworking HIGH THE AIRFLOW LEVEL IS CALIBRATED equipment that combines the functionality of Hot Air Gun, Soldering Case 1: Check the mains voltage (AC power source).

  • Page 4: Package Inclusion

    PACCKAGE INCLUSIONS BASIC TROUBLESHOOTING GUIDE PROBLEM 1: THE UNIT HAS NO POWER Check if the unit is switched ON. 939 Vacuum Suction Pen 2702 Main Station Check the fuse. Replace with the same type if fuse is blown. Check the power cord and make sure there are no disconnections. Verify that the unit is properly connected to the power source.

  • Page 5: Functions And Features

    CARE and MAINTENANCE FUNCTION and FEATURES Changing nozzle: Microprocessor-controlled ESD safe equipment. ● Unscrew the securing lock and pull out the heater external housing together ● 3-in-1 repairing system combining Hot Air Gun, Soldering Iron, and ● with the securing lock, Nozzle can now be changed. Re-secure nozzle by tighten the securing lock on its receptacle.

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS CARE and MAINTENANCE Inside the pipe, the quartz glass and heat insulation are installed. CAUTION: Improper usage can cause serious injury to personnel Loosen the cable and take out the heating element. and/or damage to equipment. For your own safety, please observe Be careful not Insert new heating element and reconnect the terminal.

  • Page 7: Assembly And Preparation

    CARE and MAINTENANCE ASSEMBL Y and PREPARATIONS Spare Parts Guide A. Main Station As soon as the equipment has been removed from the package, Part No. Description REMOVE THE SCREW located at the center of the bottom of the 10094 Hot air gun heating element main unit.

  • Page 8: Control Panel Guide

    CONTROL PANEL GUIDE DIGITAL CALIBRATION NOTES: The calibrated data is saved into the memory an shall remain ● effective until it is recalibrated again or new data is entered. If the maximum of 70 degrees has already been added or ●...

  • Page 9: Operating Guidelines

    DIGITAL CALIBRATION OPERATING GUIDELINES Adjust the temperature compensation using the UP and IMPORTANT REMINDERS: DOWN buttons of the Soldering iron adjustment buttons. 1. Make sure the equipment is placed on a flat stable surface A zero “0” on the first digit signifies addition to the current and all the heat-generating components placed on their re- temperature and a minus “-”...
  • Page 10 OPERATING GUIDELINES DIGITAL CALIBRATION 4. Adjust the air flow level using the AIR PRESSURE ADJUSTMENT Release the two buttons after the change in display. BUTTONS (“3” from the control panel). Use the same two buttons to adjust the countdown time. 5.

  • Page 11: Auto-Sleep Functions

    AUTO SLEEP FUNCTIONS OPERATING GUIDELINES 1. While the hot air gun is on stand-by mode (“0FF” is displayed on NOTES: 1. Hot Air Gun Temperature is adjustable between 100° the panels “13” and “12”), hold both UP and DOWN buttons of and 480°C with an increment of 2°...
  • Page 12 OPERATING GUIDELINES AUTO SLEEP FUNCTIONS 3. Connect the vacuum tube to the Smoke Absorber Terminal or The soldering iron and desoldering gun operating temperature is ● Vacuum Cap (“6” from the control panel). If smoke absorber configurable between 200°C and 480°C function is to be used.
