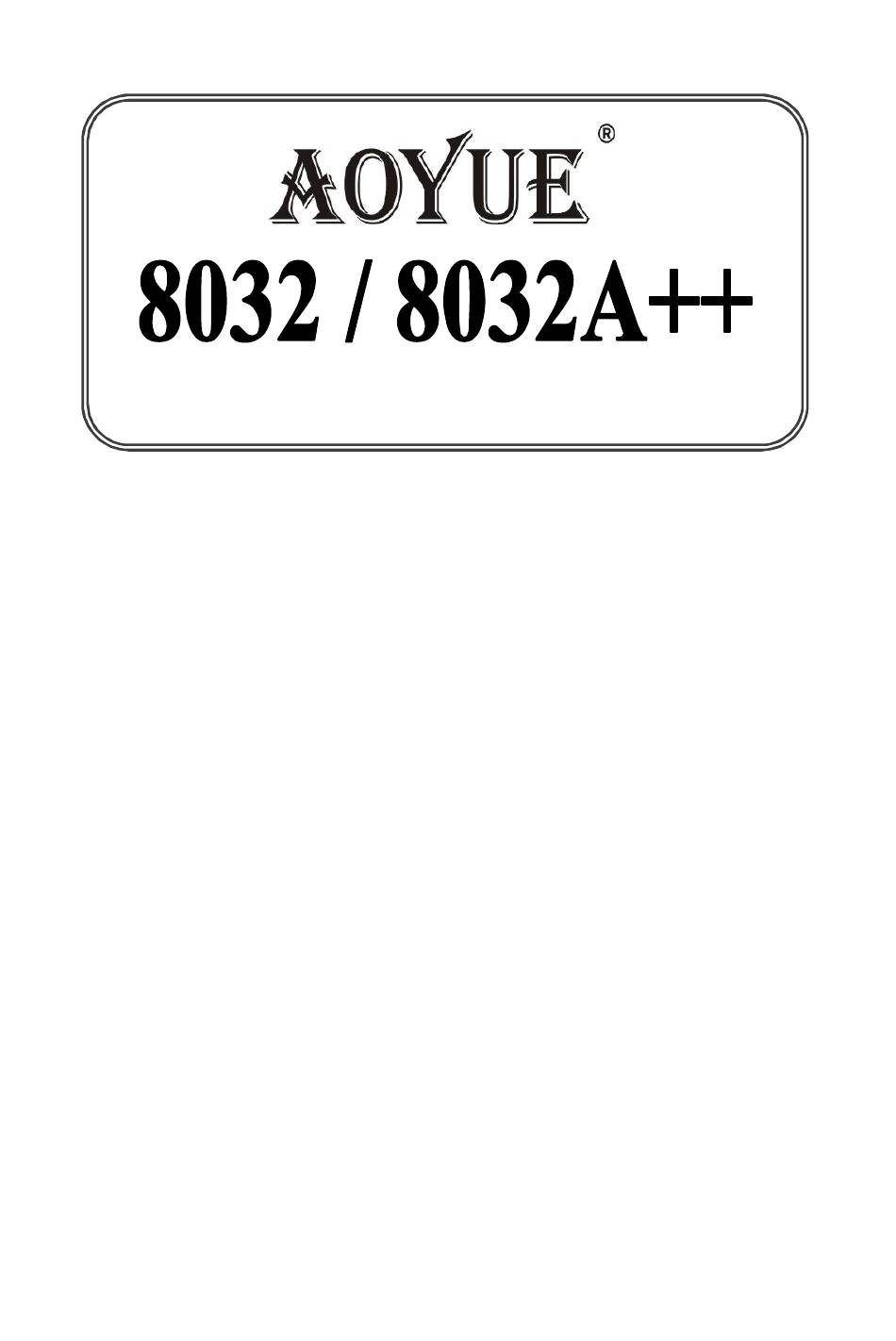

HAND-HELD HOT AIR GUN
INSTRUCTION MANUAL
Turbine motor type hot-air gun system. Provides non-pressurized hot
air to heat targeted areas evenly and effectively.
Thank you for purchasing Aoyue 8032/8032A++ Hand-held hot air gun.
It is important to read the manual before using the equipment.
Please keep manual in accessible place for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for aoyue 8032
Summary of Contents for aoyue 8032
- Page 1 Turbine motor type hot-air gun system. Provides non-pressurized hot air to heat targeted areas evenly and effectively. Thank you for purchasing Aoyue 8032/8032A++ Hand-held hot air gun. It is important to read the manual before using the equipment. Please keep manual in accessible place for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Specifications ………………...………………..…..… Functions and features.………………..…….………… 4 Replacement heating elements ……..……………. Safety Precaution ……….……………………….……... 5 Panel Guide………………….……………………….. Operation Guidelines Removing SMD ……………………………………. 7 Soldering SMD …………….…………...……….. After usage……..……………………………..……. 8 Replacing the heating element…………….….….. 8 Temperature Chart ………………………………………..9 Air Nozzles ………………...………………………..….… 10... -
Page 4: Specifications
SPECIFICATIONS MAIN STATION Power Input : available in 110V / 220V Dimensions: 65(w) x 252(L) mm Max Power Consumption: 550W Temperature Range: 100°C - 480°C Heating Element Metal Heating Core Fan Type: Turbine Motor Air Capacity: 35 l /min (max) -
Page 5: Functions And Features
FUNCTIONS AND FEATURES ◆ Swiss technology, a breakthrough from traditional air pump type reworking system. Incorporates high speed blower to produce even flowing air to achieve efficient hot air for reworking on SMT devices. ◆ Specially applicable for reworking mobile phone ICs, BGA, SMD and other electronic parts. -
Page 6: Safety Precaution
SAFETY PRECAUTION CAUTION: Misuse may cause extensive damage to the unit. For your own safety, be sure to comply with the following precautions. ◆ Check every component after opening the package whether everything is in good working condition. If there are any damages suspected , don’t use the item and contact your dealer. -
Page 7: Panel Guide
PANEL GUIDE 8032 Status LED HEATER Air-flow Temperature Adjustment Adjustment knob Knob 8032A++ Temperature and Airflow display Air-flow Ad- Temperature justment HEATER Adjustment buttons Buttons RESET Reset Button... -
Page 8: Operation Guidelines
Preheat PCB and IC together, use a pre-heater for best results . Wait for the PCB temperature to reach 180 degrees Celsius. Turn on the unit and set the air pressure to 15(For 8032 set to 1-3 ). Set hot-air temperature to 350. -
Page 9: After Usage
OPERATING GUIDELINES After using the unit: After reworking, turn the air volume to max (99) and the tempera- ture to the lowest settings. Let the unit’s temperature reach 99 on the display or cool enough to touch before turning off the unit, this is to protect the heating element from wearing out too early. -
Page 10: Temperature Chart
TEMPERATURE CHART FOR 8032: Measure Point 5mm from the nozzle. For 1196 type nozzle 1000 Temperature settings level 2 Temperature settings level 3 Temperature settings level 4 Temperature settings level 5 Air Flow Level Settings For 1197 type nozzle Temperature setting... -
Page 11: Air Nozzles
22mm 22mm SERIES SERIES Replacement Air Nozzles MODEL＃ IC SIZE L(mm) W(mm) SGL SERIES MODEL＃ IC SIZE 1010 9×9mm L(mm) W(mm) A(mm) B(mm) 1131 4.4×10mm 10.3 1313 12×12mm 1616 15×15mm 1132 5.6×13mm 11.7 1919 18×18mm 1133 7.5×15mm 2828N 27×27mm 1134 7.5×18mm 3030N 29×29mm... - Page 12 They can take this product for environmental safe recycling. Manufacturer: AOYUE INTERNATIONAL LIMITED Jishui Industrial Zone, Nantou, Zhongshan City, Guangdong Province, P.R.China http://www.aoyue.co...
