Chapter 3

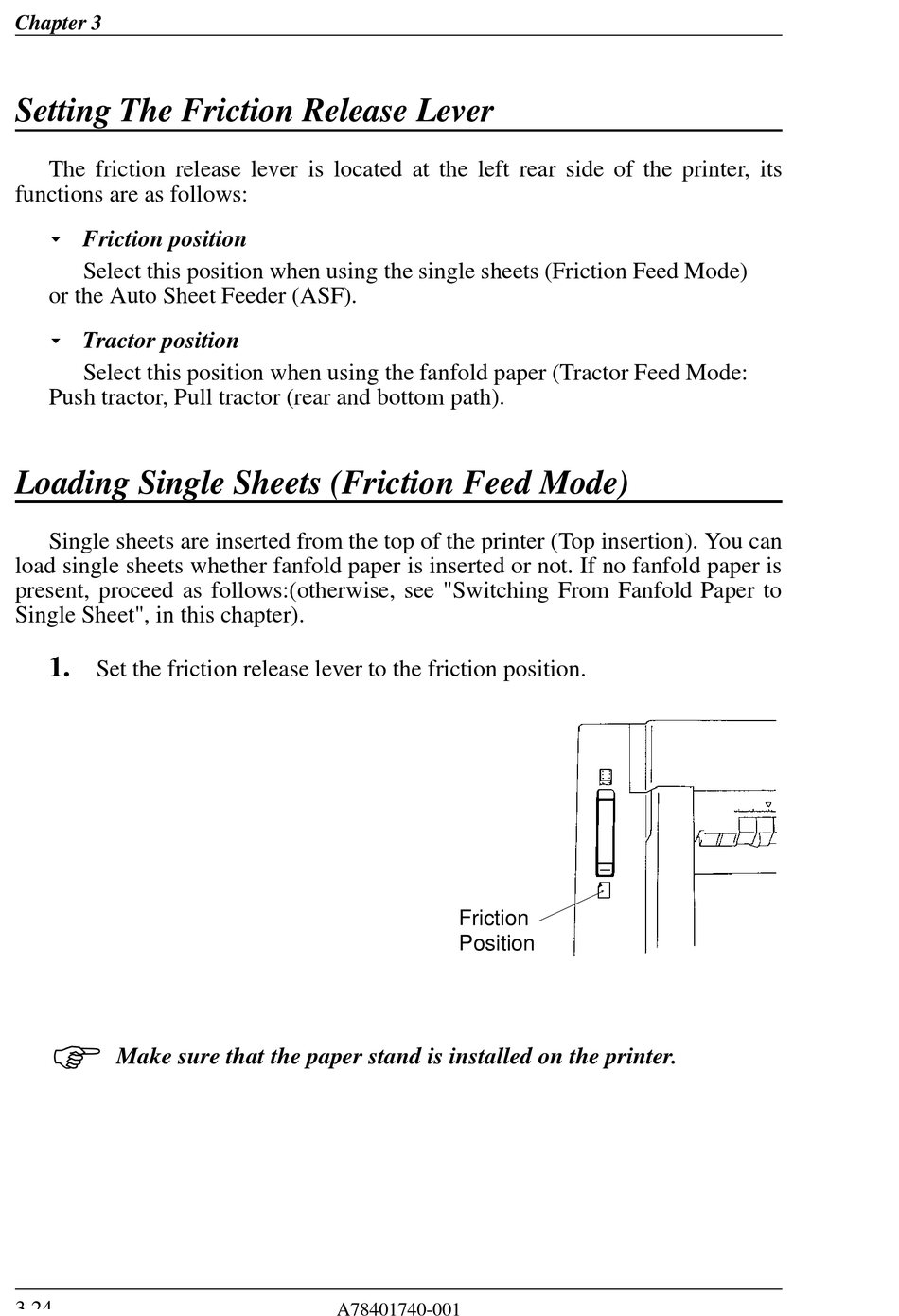

Setting The Friction Release Lever

The friction release lever is located at the left rear side of the printer, its
functions are as follows:
K
Friction position
Select this position when using the single sheets (Friction Feed Mode)
or the Auto Sheet Feeder (ASF).
K
Tractor position
Select this position when using the fanfold paper (Tractor Feed Mode:
Push tractor, Pull tractor (rear and bottom path).

Loading Single Sheets (Friction Feed Mode)

Single sheets are inserted from the top of the printer (Top insertion). You can
load single sheets whether fanfold paper is inserted or not. If no fanfold paper is
present, proceed as follows:(otherwise, see "Switching From Fanfold Paper to
Single Sheet", in this chapter).
1.
Set the friction release lever to the friction position.
F
Make sure that the paper stand is installed on the printer.
3.24
Friction
Position
A78401740-001
