SPECIFICATIONS
Basic Description .................................................... 2
Performance & Specifi cation Data .......................... 4
Special Precautions ............................................ 2, 3
Locating Units ..................................................... 5, 6
Proper Clearances .............................................. 5, 6
Suspension of Units ............................................ 5, 6
Gas Supply Piping .............................................. 7, 8
Pipe Installation ...................................................... 8
ELECTRICAL CONNECTIONS ........... 9, 10, 11, 12, 13
NOTICE: It is the equipment owner's responsibility to provide any scaffolding or other apparatus required
to perform emergency service or annual/periodic maintenance to this equipment.
The Power Vented gas unit heater is a factory assembled,
power vented, low static pressure type propeller fan heater
designed to be suspended within the space to be heated.
THESE HEATERS ARE NOT TO BE CONNECTED TO
DUCTWORK. The designs are certified by ETL as

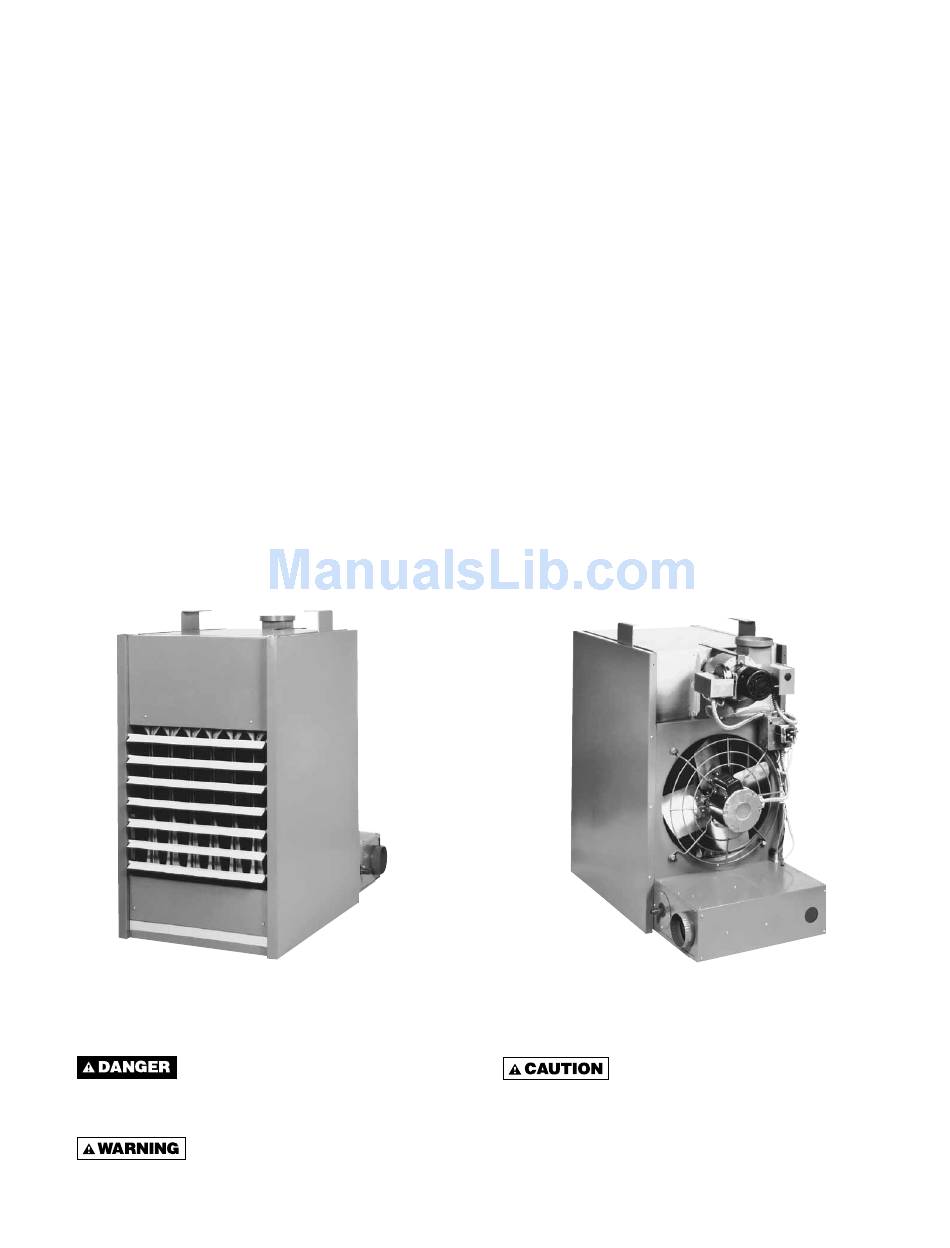

Figure 1 - Power Vented Separated Combustion Propeller Unit Heaters
Front
View
The following terms are used throughout this manual, in addition to ETL requirements, to bring attention to the
presence of potential hazards or to important information concerning the product:
Indicates an imminently hazardous
situation which, if not avoided, will result in death,
serious injury or substantial property damage.
Indicates an imminently hazardous
situation which, if not avoided, could result in
death, serious injury or substantial property
damage.

TABLE OF CONTENTS

Combustion Air Venting & Piping .......................... 14
Exhaust Venting .................................. 14, 15, 16, 17
OPERATION ................................................. 18, 19, 20
Adjustments .................................................... 18, 20
Servicing & Cleaning ............................................ 21
IDENTIFICATION OF PARTS .................... 4, 19, 22, 27
TROUBLESHOOTING GUIDE ................ 23, 24, 25, 26
Replacement Parts ............................................... 27
WARRANTY .............................................................. 28
UNIT NUMBER DESCRIPTION ................................ 29
INSPECTION SHEET ................................................ 32
DESCRIPTION
providing a minimum of 80% thermal efficiency, and
approved for use in California. Do not alter these units
in any way. If you have any questions after reading this
manual, contact the manufacturer.
See Identifi cation of Parts Section
for unit components.
situation which, if not avoided, may result in
minor injury or property damage.
NOTICE: Used to notify of special instructions on
installation, operation or maintenance which are
important to equipment but not related to personal
injury hazards.
2
Indicates an imminently hazardous
Rear
View
