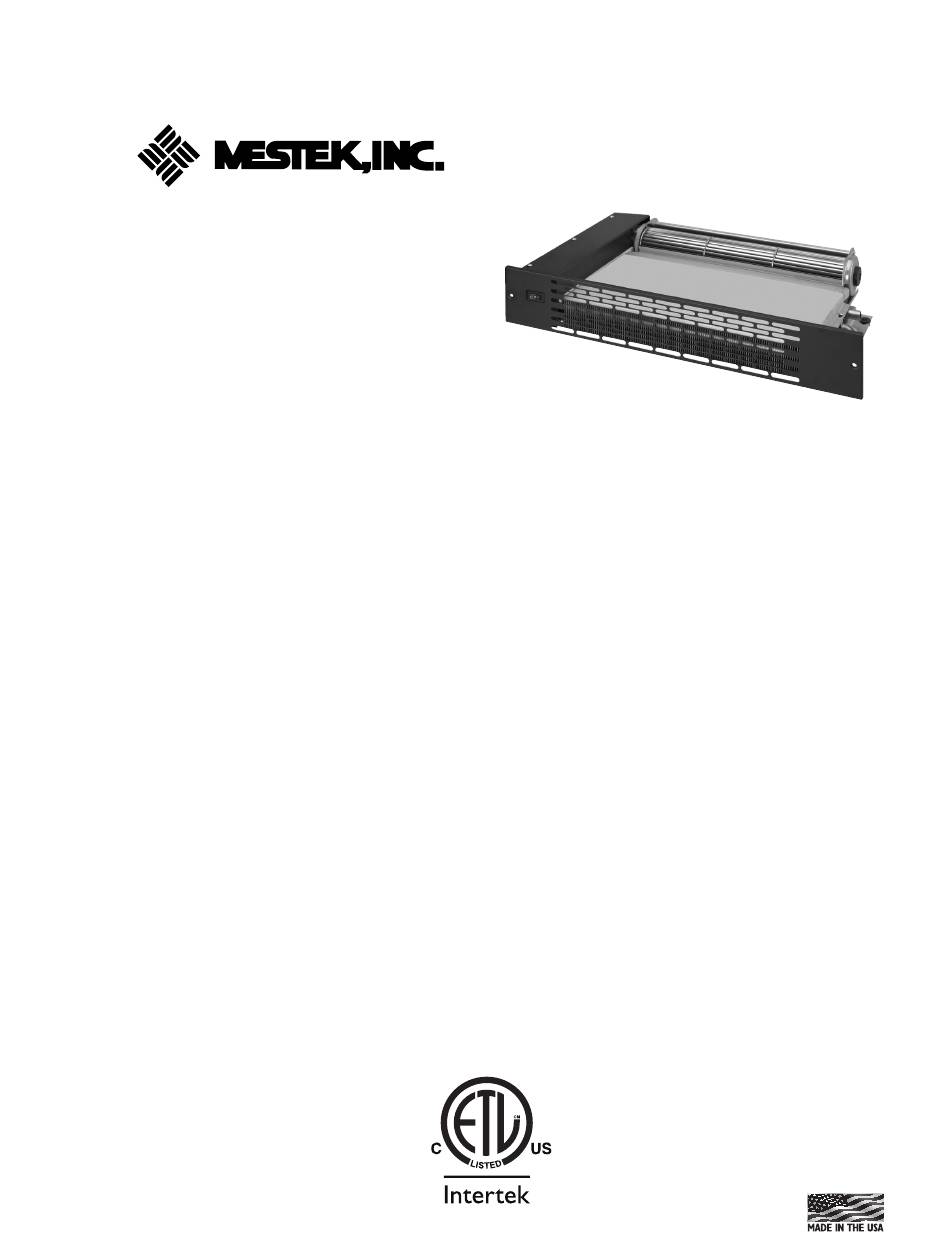

KICKSPACE
HEATER
INSTALLATION INSTRUCTIONS
ATTENTION: READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE, OR
SERVICE THE KICKSPACE HEATERS! RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
INSPECT THE SHIPMENT IMMEDIATELY WHEN RECEIVED TO DETERMINE IF ANY DAMAGE HAS OCCURRED
DURING SHIPMENT.
PRIOR TO INSTALLATION, CHECK FOR ANY VISIBLE DAMAGE. MAKE CERTAIN THAT ANY LOOSE PARTICLES
ARE REMOVED (ESPECIALLY IN THE BLOWER ASSEMBLY AREA).
SAFE TO USE WITH POTABLE WATER.
GENERAL DESCRIPTION

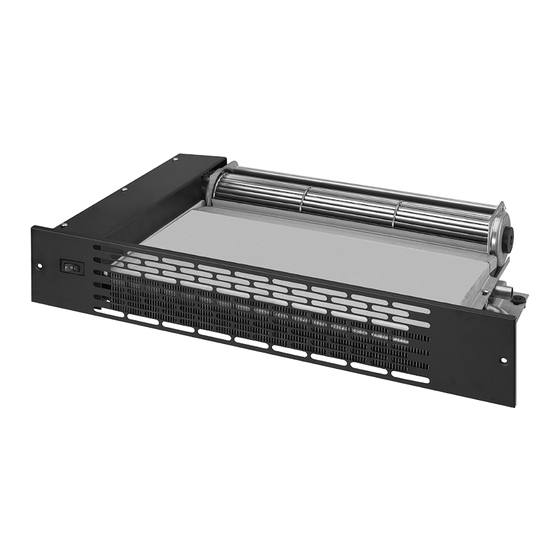

Kickspace heaters are for use with forced hot water residential heating systems and consist of a copper tube, aluminum
finned heating element, with an electric motor and blower of unique cross flow design. Their purpose is to deliver a
comfortable stream of warmed air, at or near floor level, and their construction is extremely compact so minimum space
is required for installation. The type K & T heaters are primarily used in horizonal floor installation, for example: under a
kitchen counter cabinet, or bathroom sink enclosure. They are ideal for radiant systems with the use of a low temperature
aquastat designed to turn the unit on at 110°F. Type W is for vertical mounting, fully recessed in the wall studs, with the
air discharged upward through a flush mounted, louvered front panel. Type F is a surface mounted wall unit, with the
air discharged evenly through a louvered front panel in an upward direction. All types have heating elements with 1/2"
nominal (5/8 O.D.) copper tube connections, and 115V. electric blower motor, interwired with a 120°F (49°C) reverse
acting aquastat that prevents operation until hot water is circulating. These units are NOT intended to be used on one or
two pipe steam systems. See bottom of page 5. For gravity fed systems, it is recommended that a separate circulator pump
be installed for the kickspace heater.
10/2019
TYPE K & T
1.
TFII-16
J17-63967
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mestek Kickspace Series
Summary of Contents for Mestek Kickspace Series
-
Page 1: Installation Instructions
TFII-16 J17-63967 KICKSPACE HEATER INSTALLATION INSTRUCTIONS TYPE K & T ATTENTION: READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE, OR SERVICE THE KICKSPACE HEATERS! RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INSPECT THE SHIPMENT IMMEDIATELY WHEN RECEIVED TO DETERMINE IF ANY DAMAGE HAS OCCURRED DURING SHIPMENT. -
Page 2: Dimensional Data
DIMENSIONAL DATA KICKSPACE MODEL 42 FIGURE 1 KICKSPACE MODEL 84 FIGURE 2 KICKSPACE MODEL 120 FIGURE 3 Dimensions shown in English and metric ( ). -
Page 3: Electrical Connections
INSTALLING KICKSPACE TYPE K & T 1. Select a location under the bottom shelf of a cabinet that meets the minimum dimensions shown in Fig. 1. 2. CUT AN ACCESS PANEL THROUGH THE BOTTOM OF THE CABINET AT THIS LOCATION, LARGE ENOUGH FOR INSTALLATION AND SERVICE. -
Page 4: System Considerations
115V LINE TWIN-FLO CIRCULATOR ZONE VALVE LOW VOLT W/AUX. SW. ROOM T'STAT (NEUTRAL) BLOWER MOTOR SPDT TRANS 115/24V (HOT) BLUE BLUE T-STAT LINE IN 115/1/60 WIRING DIAGRAM C CAT-68254-A WIRING DIAGRAM 3 MOTOR INFORMATION FRICTION LOSS (HEAD) MODEL WATT VOLTAGE CFM (HIGH SPEED) MODEL .17'... -
Page 5: Maintenance And Service
MAINTENANCE & SERVICE Properly installed, the Kickspace heater should require very little attention. Since the heating element is carefully constructed and tested, and of non-ferrous materials, it should never require service. The cross- flow blower has been thoroughly engineered, with ball bearings for 10,000 hrs. bearing life expectancy. As with any electrical rotating device, a yearly inspection and cleaning is recommended. - Page 6 Kickspace Heater Troubleshooting 1. If Kickspace heater does not turn on check below for possible solutions: A. Verify the following: a) Check to see if there is a call for heat • Turn up thermostat, wait for water to come up to temperature and unit blower/motor should turn on. b) Verify aquastat is clipped firmly to copper tube.
-
Page 7: Replacement Parts List
REPLACEMENT PARTS LIST Model Description Part No. BMKR02020-001 Motor-Fan Assembly BMKR02020-002 BMKR02020-003 BMKR02024-001 Standard Aquastat Assembly (120° – 105°F) BMKR02024-002 BMKR0204-L01 Low Temp. Aquastat Assembly (110° – 95°F) BMKR0204-L02 BMKR02017-001 Heating Element BMKR02017-002 J37R52064 2 Speed Fan Switch J11R02029-001 BMKR08778-B42 Outlet Grille w/ screws (Model K only) (Black) BMKR08778-B84 BMKR08778-B12... -
Page 8: Limited Warranty
LIMITED WARRANTY MESTEK KICKSPACE HEATER The “Manufacturer” warrants to the original owner at the original installation site that the Kickspace Heaters (the “Product”) will be free from defects in material or workmanship for five (5) years from the date of shipment from the factory.
