POWER SUPPLY
____V/3/60
____ FLA
TO FACTORY MOUNTED BASEBOARD HEATER
WITH THERMOSTAT FOR SPRAY ENCLOSURE
POWER WIRING BY GENERAL CONTRACTOR
CONTROL WIRING BY MECHANICAL CONTACTOR
FACTORY WIRING BY SPRING AIR SYSTEMS
TEN (10) WIRES TO THE
TO REMOTE CONTROL STATION LOCATED IN
IN THE KITCHEN AREA MODEL RPD10 OR
RPW10 - 120V/1/60 - 10 AMPS.

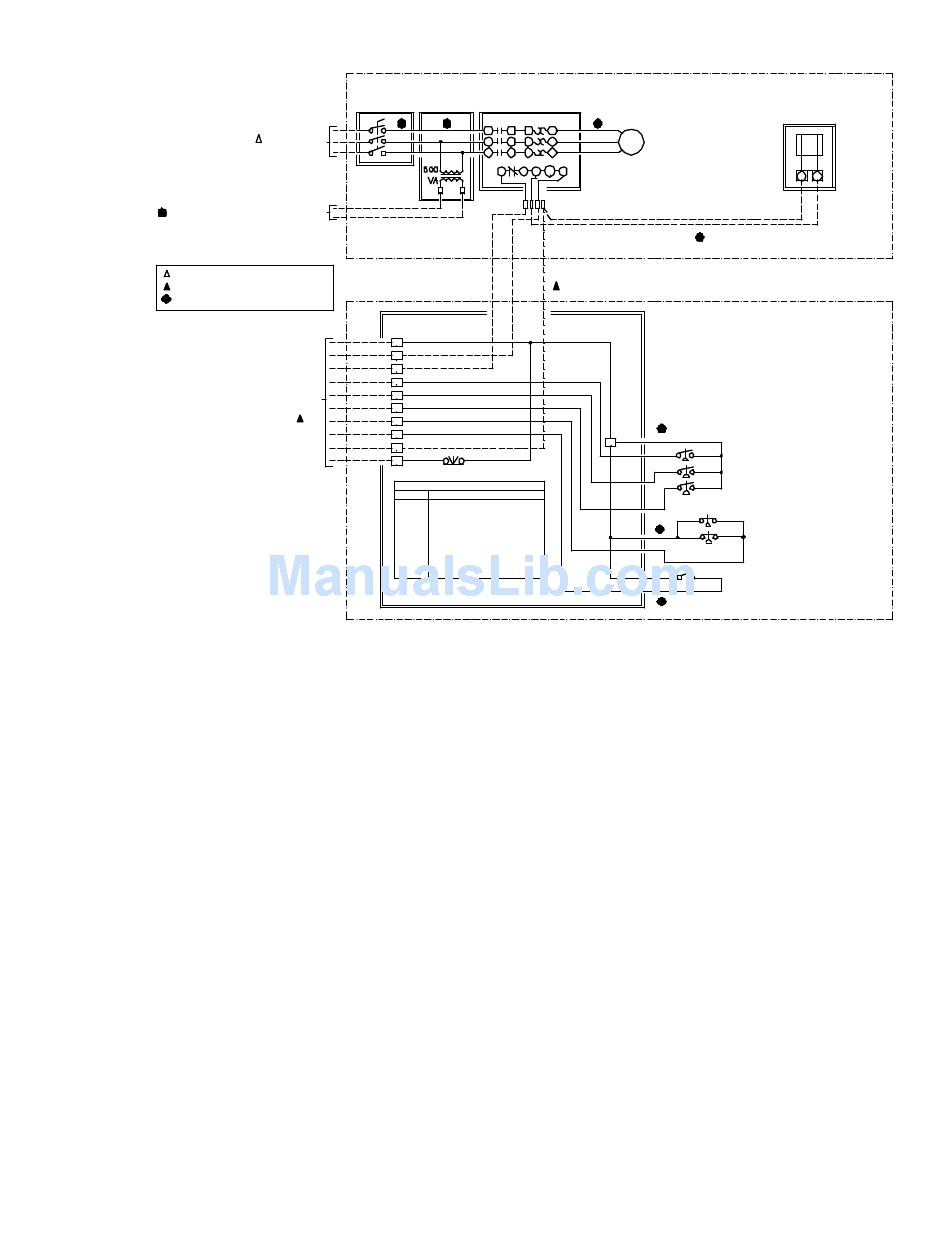

Wiring diagram for Outdoor KES, motor starter, LV10 J-Box, and odor unit
Enviro Maintenance Manual 2004
30 AMP EEMAC4 KES TELE MOTOR STARTER
EEMAC3R TRANSFORMER IN EEMAC4 ENCLOSURE
ENCLOSURE MOUNTED ON FAN UNIT
DISCONNECT
M 1 O/L
L1
T 1 L1
L2 T 2 L2
L3 T 3 L3
G1
XXXV
96 95 A2
120V
1 3 7 6
1
4
5
12
13
14
15
16
17
RESET
18
LEGEND
TERMINAL DESCRIPTION
1&4 POWER FROM RPD10
5 KES FAN/NORMAL OPERATION
12 PREFILTER CLOGGED
13 BAG FILTER CLOGGED
14 BOX FILTER CLOGGED
15 FILTER OUT/LOW AIR
16 FIRESTAT - HIGH LIMIT
17 0DOR SPRAY UNIT
18 LV10 RESET
Figure 21
T1
EXHAUST FAN MOTOR
T2
____ HP
T3
M 1
A 1
WIRING HARNESS IN
MOTOR STARTER
WIRING FROM EXHAUST FAN MOTOR STARTER
TO THE ODOUR CONTROL UNIT 120V/1/60
4.2 AMPS. MAXIMUM. WIRES BY SPRING AIR
THREE WIRES FROM LV10 PANEL TO EXHAUST FAN MOTOR STARTER BY
MECHANICAL WHEN KES FAN AND FILTER SECTIONS ARE SPLIT 120V/1/60, 5 AMPS
LV10 PANEL
LOCATED ON
KES FILTER
UNIT
1
P1
P2
P3
TH1
KESF FAN SECTION
OPTIONAL ODOUR CONTROL PANEL
LOCATED ON KES FAN SECTION
17 4
KES-ISH FILTER SECTION
FILTER CLOGGED PRESSURE SWITCHES
P1 - PREFILTER (SET AT 1.0" W.C.)
P2 - BAG FILTER (SET AT 1.0" W.C.)
P3 - BOX FILTER (SET AT 1.2" W.C.)
FILTER REMOVED SWITCHES
P4
P4 - BAG FILTERS (SET AT 0.25" W.C.)
P5
P5 - BOX FILTERS (SET AT 0.25" W.C.)
HI TEMP STAT LOCATED IN THE
EXHAUST INLET SET AT 225 °F
