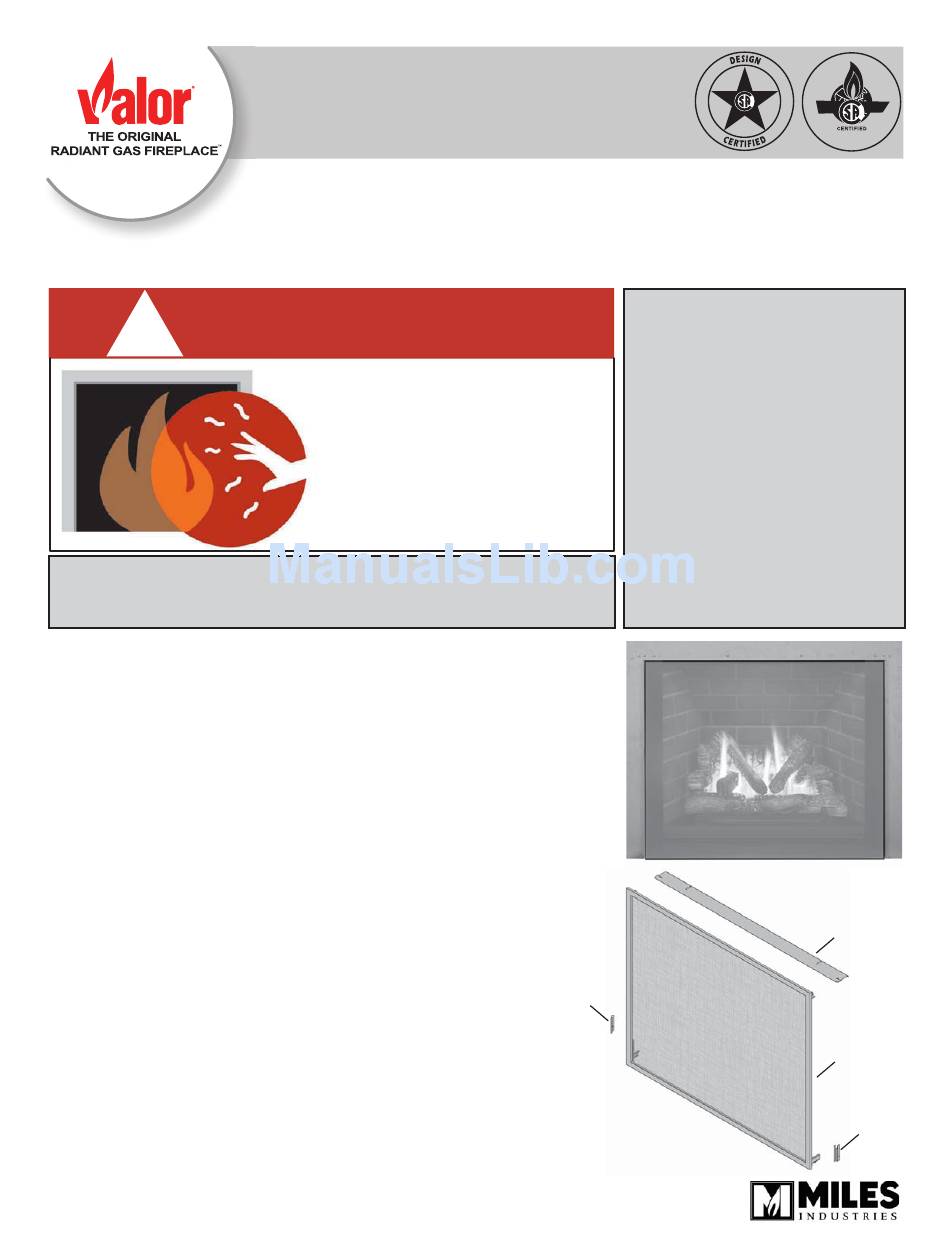

BSK1200 Barrier Screen Kit
WARNING
!
A barrier designed to reduce the risk of burns from the hot viewing
glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
Barrier Screen
A Barrier Screen is provided to install with the Ventana 3-sided surrounds
1235 and 1240, the 4-sided surrounds 1237 and 1241 or on a Ventana
fi replace without a surround.
The barrier screen is designed specifi cally to prevent any contact with the
glass of the fi replace which becomes hot during operation and remains hot
when cooling.
Kit content
The BSK1200 kit contains a barrier screen as well as 2 mounting brackets
and a convection baffl e to be fi tted directly to the Ventana heater 1200.
4003639-04
© Copyright Miles Industries Ltd., 2014.
V
ENTANA
CSA approved for use ONLY with Valor Ventana 1200
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
IN STA LLER
Leave this manual
with the appliance.
CO N SUM ER
Retain this manual
for future reference.
LH hook
4003654AZ
Convection
baffl e
4004473AZ
Barrier
screen
assembly
4003365
RH hook
4003655AZ
