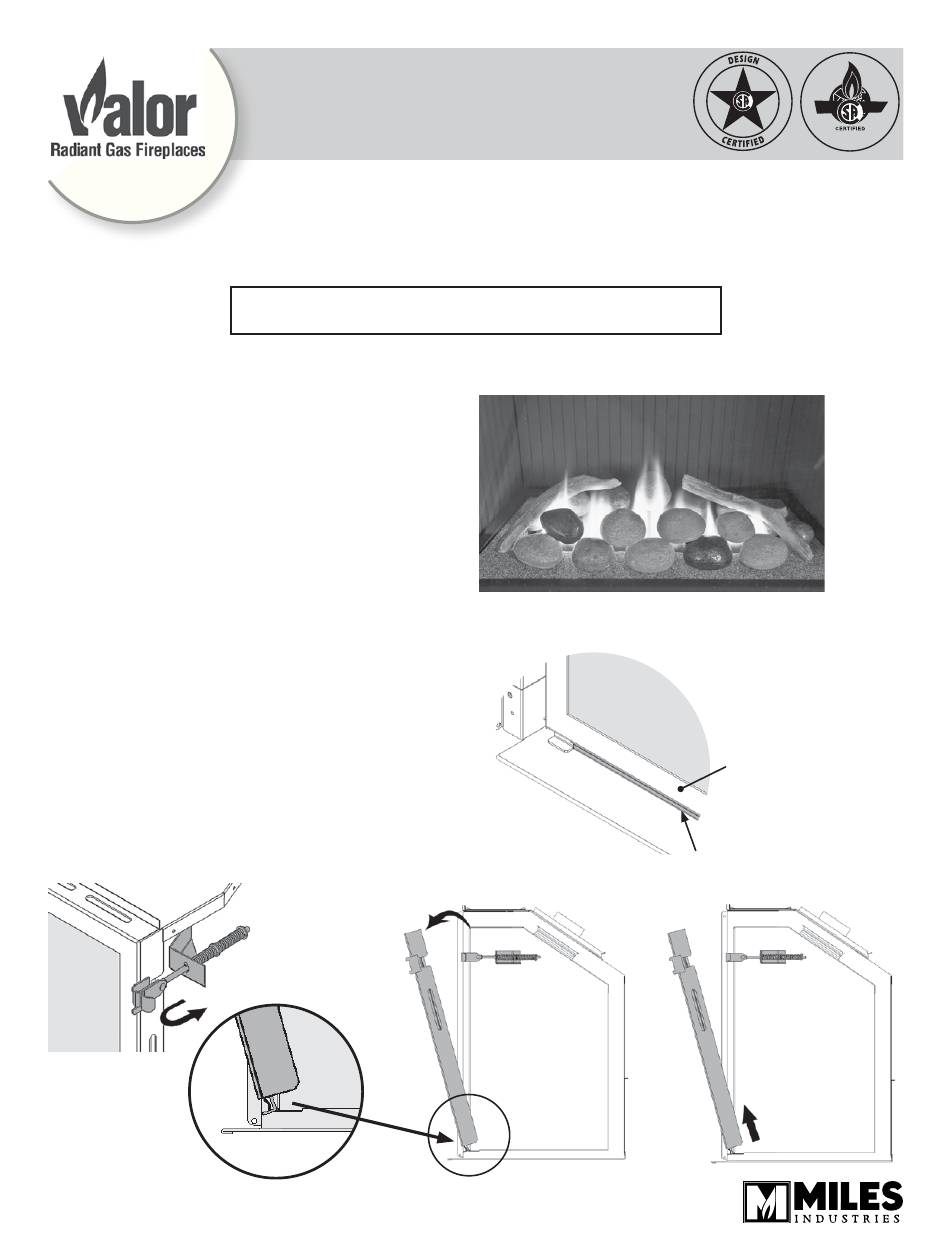

Miles Industries 781RSK Installation Instructions Manual

Rock set use with valor 780 models only
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

The 781RSK Rock Set is intended to be used with Valor heaters models 780 only to replace the existing log set.
Installation Planning
If the fireplace is already installed with logs:
1. Check that you have all the components you need
to convert.
2. Unhook the trim and side access panels from the
appliance.
3. Remove the window.
4. Remove the logs, the grate and the front bricks.
Discard them or recycle them.
Window Removal
The window is held in place by a spring-loaded lever on
each side.
1. To remove the window, locate the levers on each
side of the window towards the top. Using your
finger, pull the lever towards you and unhook it from
the window frame bracket.
2. Gently pull the top of the window outward.
3. Lift the window out of its bottom railing and set it
aside in a safe place to avoid damage.
Section Views
©2010, Miles Industries Ltd.
L
egend
781RSK Rock Set
Installation Instructions
Use with Valor 780 Models only
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
g4
Window frame
Bottom railing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 781RSK and is the answer not in the manual?

Questions and answers

Related Manuals for Miles Industries 781RSK

Summary of Contents for Miles Industries 781RSK

  • Page 1 INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. The 781RSK Rock Set is intended to be used with Valor heaters models 780 only to replace the existing log set. Installation Planning If the fireplace is already installed with logs: 1.

  • Page 2: Ceramic Rocks Installation

    Ceramic Rocks Installation Unpack the ceramic rocks very carefully to avoid damaging them. Install the rocks as shown. Please note that the position of some of the rocks identified in the following instructions is critical to ensure proper performance of the appliance. Note: The rocks 17 and 18, as well as the twigs may be installed or omitted at the customer’s choice.
  • Page 3 4. Each rock is embossed 8. Identify the rocks 7, 9, 11 and 14. These rocks underneath with a number have one hole underneath and fit on the peg of and an arrow indicating the rocks 6, 8, 10 and 13 respectively. Install these its position.

  • Page 4: Window Refitting

    11. Optional: Lay the twigs on the rocks. They can be IMPORTANT: The rocks of the top row (14, 11, 9 placed as suggested below or elsewhere on the and 7) overhang slightly over the burner. rocks as long as they do not block the pilot flame or the burner flame.

  • Page 5: Spare Parts

    Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel.

  • Page 6: Directives D'installation

    Pour modèles Valor 780 seulement INSTALLATEUR : Laissez cette notice avec l’appareil. CONSOMMATEUR : Conservez cette notice pour consultation ultérieure. L’Ensemble de pierres 781RSK est conçu pour installation dans un foyer Valor 780 seulement pour remplacer l’ensemble de bûches. Planification de l’installation Lorsque le foyer est déjà...
  • Page 7 Installation des pierres de céramique Déballez les pierres de céramique avec précautions car elles sont fabriquées d’un matériau fragile. Installez les pierres selon les directives suivantes. Veuillez noter que la position de certaines pierres identifiées dans les directives suivantes est essentielle au bon rendement de l’appareil et à...
  • Page 8 4. Sous chaque pierre se 8. Identifiez les pierres numéro 7, 9, 11 et 14. Chaque trouve un numéro et pierre possède un trou en dessous servant à une flèche indiquant la fixer aux chevilles des pierres 6, 8, 10 et 13 sa position.
  • Page 9 11. Facultatif : Déposez les morceaux de simili-bois IMPORTANT : Les pierres de la rangée du dessus sur les pierres. Ils peuvent être placés tel qu’indiqué (14, 11, 9 et 7) dépassent légèrement au-dessus ou ailleurs sur les pierres en autant qu’ils ne du brûleur.
  • Page 10 Parce que nous favorisons une politique de développement continu, certains détails de la présente publication peuvent varier. Conçue et fabriquée par / pour Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1 Tél. 604-984-3496 Téléc. 604-984-0246...
