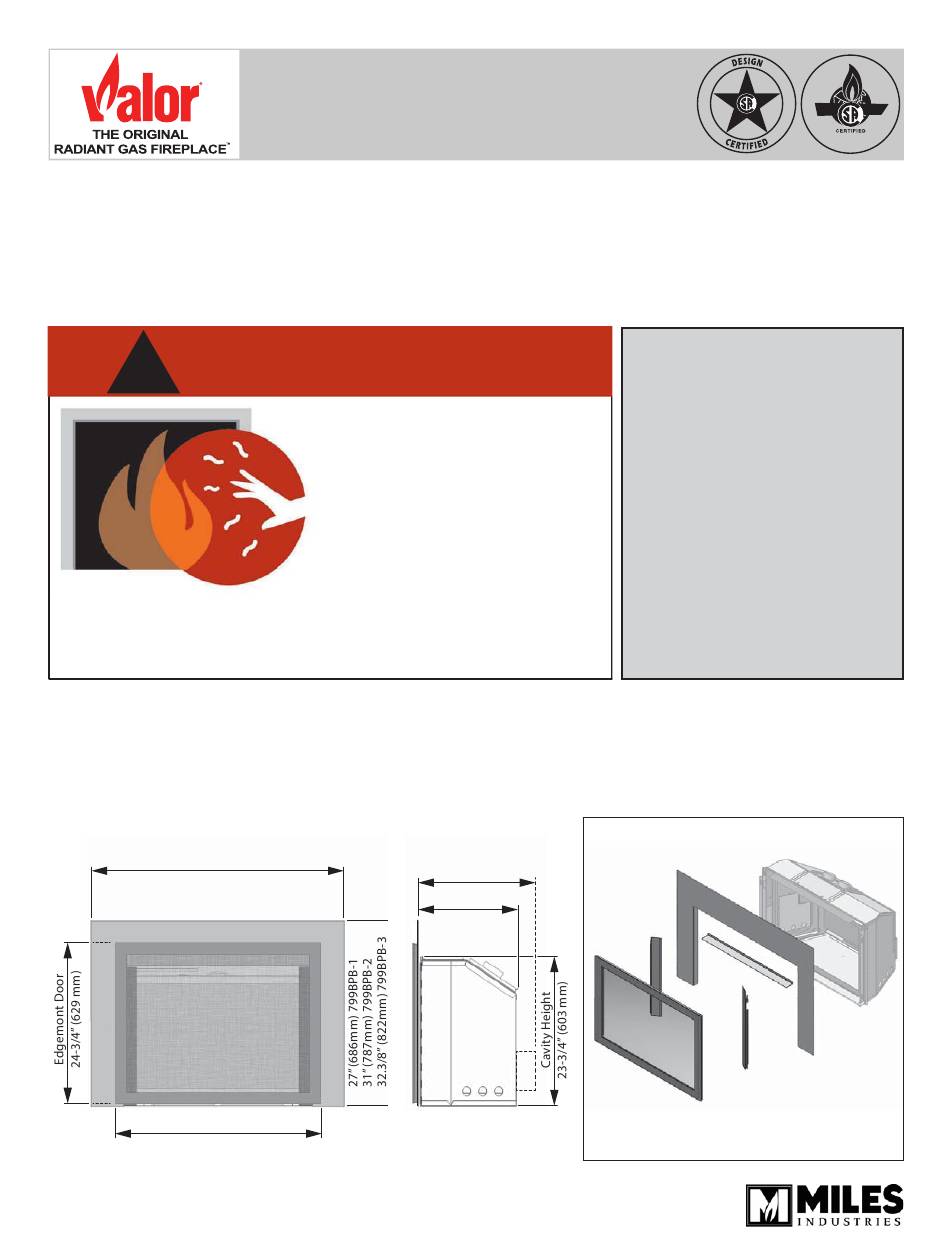

799EDF Edgemont Door Front Kit
includes installations instructions for Valor 799BPB-1, 799BPB-2 and 799BPB-3
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
The 799EDF Edgemont Door Front Kit is intended to be used on
Valor heater model 780 & 785 with a required choice of Backing
Plate 799BPB-1, 799BPB-2 or 799BPB-3.
Mounting of the 799 aff ects cavity dimensions —see below and
Installation manual supplied with the heater for more information.
Minimum Cavity Dimensions for 799
39.1/2" (1003 mm) 799BPB-1
46" (1168 mm) 799BPB-2
48" (1219 mm) 799BPB-3
Cavity Width / Edgemont Door
35-3/4" (908 mm)
4005620-04
© Copyright Miles Industries Ltd., 2017
Legend G4
Use with Valor 780 and 785 Models only
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Cavity Depth
19-3/4" (502 mm)
with fan
16-3/4"
(426 mm)

Overview

I NS TA LL ER
Leave this manual
with the appliance.
C ON SU MER
Retain this manual
for future reference.
G4 engine
799BPB
Sold seperately
799EDF
Including doors &
convection baffl e
