INSTALLATION MANUAL

Remote Battery and Wall Switch Kit RBWSK

Approved for use with Valor heater models using GV60 control system ONLY

If this kit is to be used on a Valor fireplace

installed outdoor, the position and

mounting of this assembly must be in

a sheltered place protected from the

elements (dry location).

The Remote Battery and Wall Switch Kit (RBWSK)

makes the fireplace batteries more accessible while

consolidating their location with the wall switch.

The batteries of the RBWSK are connected to the

fireplace receiver and therefore, no batteries are

necessary in the receiver or battery box.

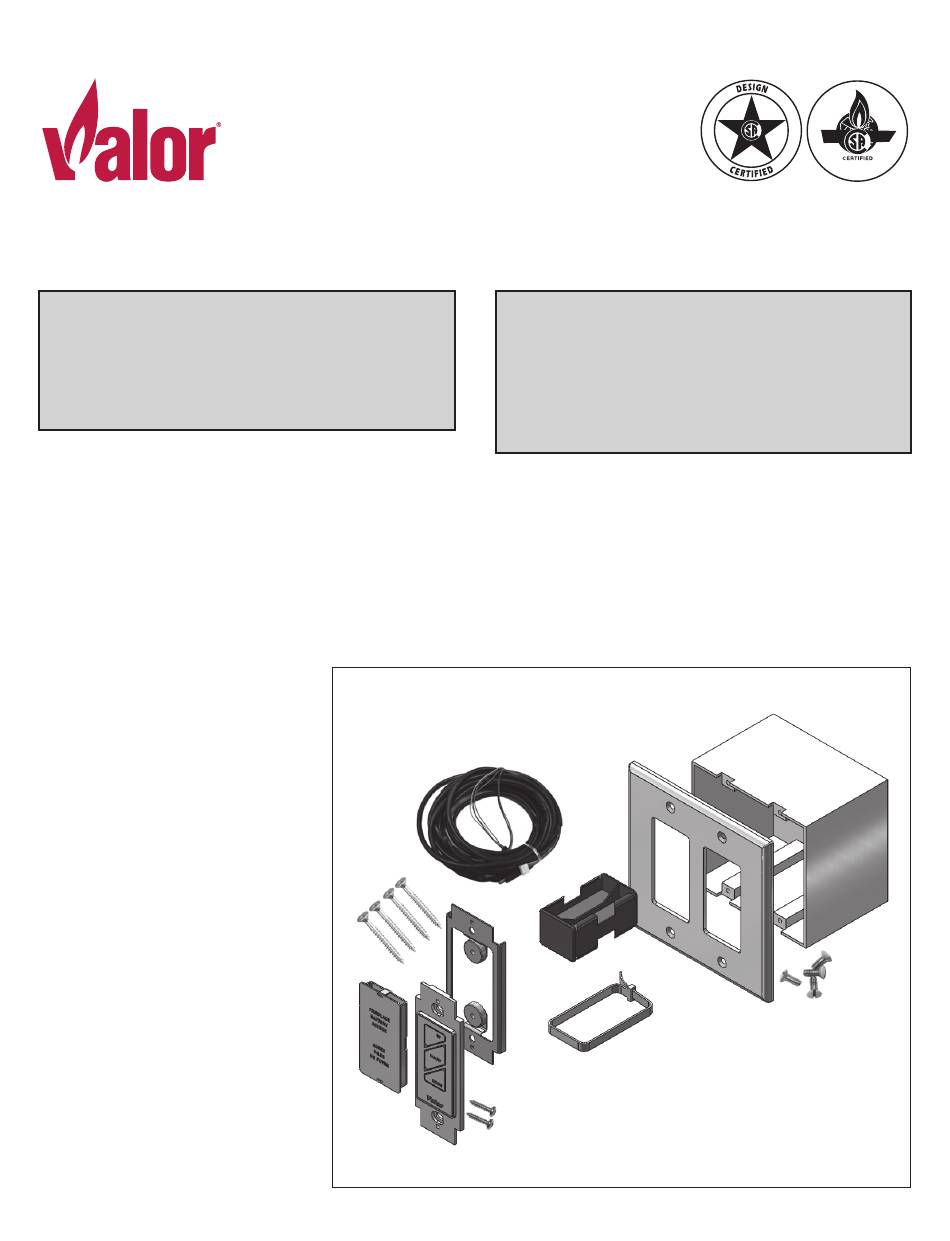

Kit Contents

1 Wall Switch

4 Screws

1 Battery Holder

1 Plate with magnets

1 Battery Cover assembly

1 Harness assembly - 35 ft

1 Junction Box

1 Cover plate and Screws

1 Cable tie

4005530-04

RBWSK

This kit must be installed or serviced by a

qualified installer, service agency or gas

supplier. These instructions are to be used

in conjunction with the main installation

instructions for the above listed heater

models.

Need help?

Do you have a question about the Valor RBWSK and is the answer not in the manual?

Questions and answers

Summary of Contents for Miles Industries Valor RBWSK

Page 1 Kit Contents 1 Wall Switch 4 Screws 1 Battery Holder 1 Plate with magnets 1 Battery Cover assembly 1 Harness assembly - 35 ft 1 Junction Box 1 Cover plate and Screws 1 Cable tie 4005530-04 ©2022, Miles Industries Ltd.
Page 2 Installation 4. Run harness assembly to mounted position of junction box, securing harness to framing using insulated staples (not included). NOTE 5. Feed harness assembly through a restrain on rear of If retrofitting this kit to an existing installed junction box, feeding through until harness sheath fireplace, disconnect the battery box from the is pinched by retainer and providing sufficent length receiver, remove the batteries and discard the...
Page 3 9. Locate and secure magnet plate using 2 ‘long’ 13. Make the snap connection, load 4 new alcaline AA screws provided. battery into holder (included with fireplace) then feed back into junction box assembly. DO NOT put batteries in the receiver, only in the battery holder by the wall switch.
Page 4 Wiring Diagram Remote Battery Holder Wall 4 AA Switch Batteries 5-pin connector 9-Volt connector GV60 Wiring Diagram...
Page 5 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel.
Page 6 4 Vis 1 Porte-piles 1 Plaque avec aimants 1 Couvercle du compartiment à piles 1 Harnais de connexion - 35 pi (10,67 m) 1 Boîte de raccordement 1 Plaque de couverture et vis 1 Attache autobloquante ©2022, Miles Industries Ltd.
Page 7 Installation 4. Faites passer le fil du harnais de connexion en- dessous de la boîte de foyer et jusqu’à l’endroit où sera monté la boîte de raccordement. Fixez le fil aux NOTE poteaux d’encastrement à l’aide de broche isolantes Si vous installez ce kit à un foyer déjà existant, (non-incluses).
Page 8 9. Placez la plaque à aimants à côté de l’interrupteur 13. Branchez le connecteur à boutons-pression, insérez et fixez-la à la boîte de raccordement à l’aide de 2 4 piles alcalines AA dans le porte-piles (fournies longues vis fournies. avec le foyer) et insérez le porte-piles à l’intérieur de la boîte de raccordement.
Page 9 Schéma des connexions Bouton manuel Bouton principal de la soupape Soupape combinée Porte- Interrupteur piles mural Terminal Bloc interrupteur rouge Câble de 8 ﬁ ls Connecteur à 5 broches 4 piles AA Connecteur 9-volt Câble de l’électrode Jaune Rouge Antenne Étincelle Étincelle Interrupteur...
Page 10 Notre politique en est une de développements et améliorations constants; certains détails peuvent varier de ceux donnés dans cette publication. Conçue et fabriquée par / pour Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1 Tél.
