Miles Industries 700I Installation

Model 700I

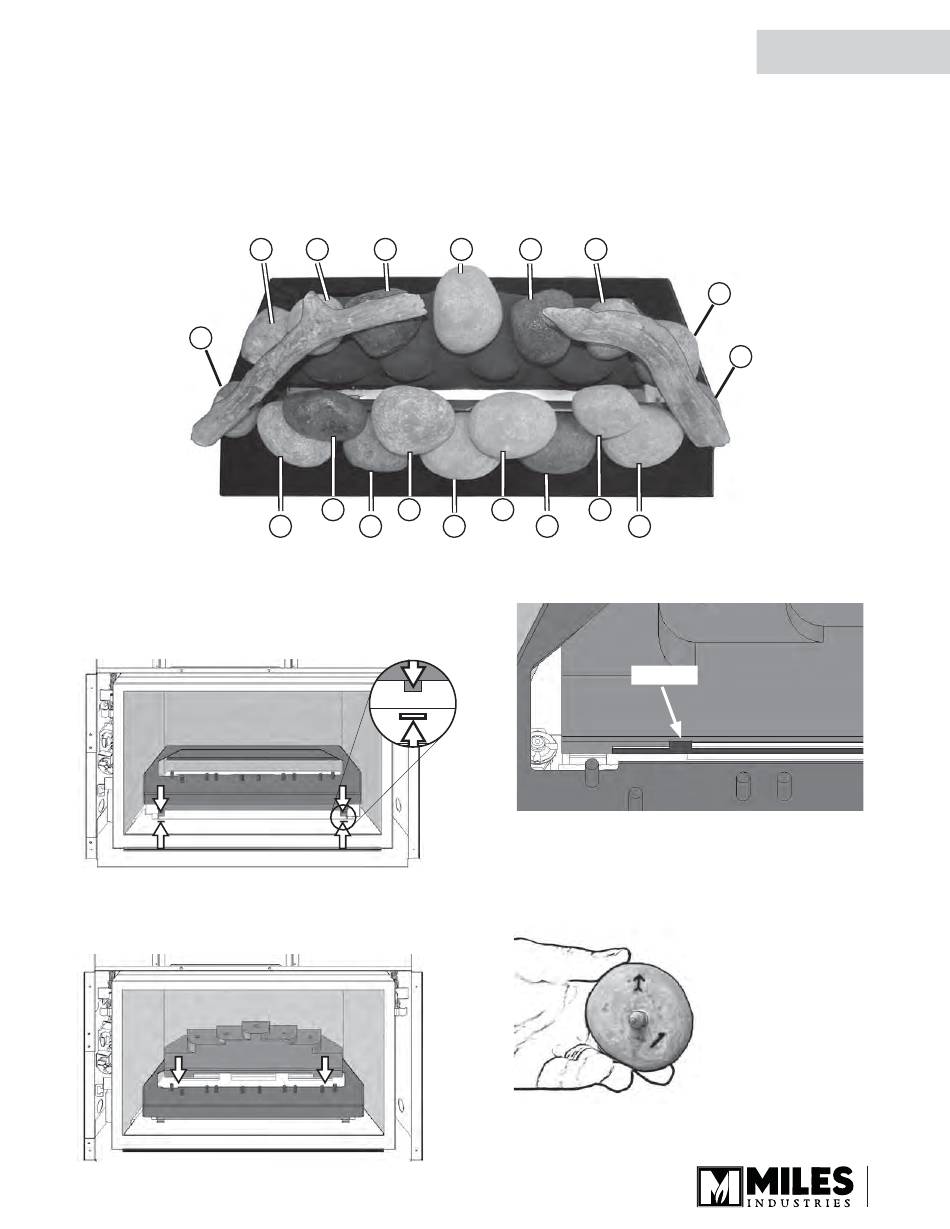

For ceramic logs, see previous section. Unpack the ceramic rocks very carefully to avoid damaging them. Install
the rocks as shown.
Please note that the position of some of the rocks identifi ed in the following instructions is critical to ensure
proper performance of the appliance.
Note: The rocks 17 and 18, as well as the twigs may be installed or omitted at the customer's choice.
17
1. Install the platform into the fi rebox on top of the
burner. The metal tabs at the bottom of the platform
slide into the slots in front of the burner.
2.
3. Insert the ceramic rock base in the platform behind
the burner. Ensure that the base lies against the
metal tabs behind the burner.
Ceramic Rocks Installation
15 1 2
14 11
13 12
3 4 5
9 7
10 8
4. Each rock is embossed underneath with a number
and an arrow indicating its position. The arrow
points to the front of the fi replace when the rock
is installed. See the image at the beginning of this
section to help you identify and position the rocks.
QUALIFIED
INSTALLER
16
18
6
Metal tab
31
