Summary of Contents for Kunzle ARIES

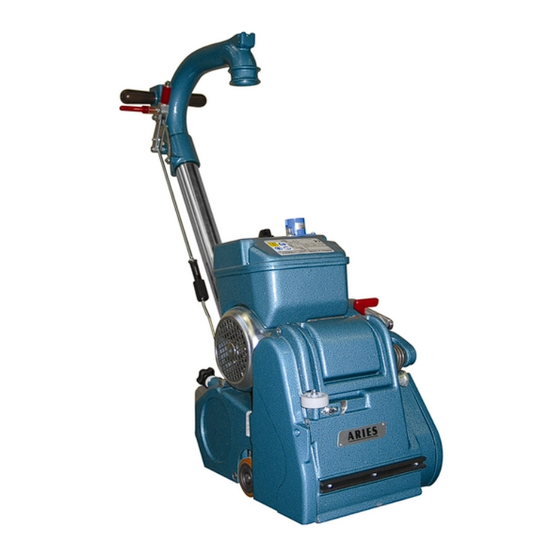

- Page 1 ARIES WOOD SANDER USER & MAINTENANCE MANUAL...
- Page 2 ARIES User Manual_ March 2013 Edition Foreword This manual contains important information on the safe use and operation of this machine. Failure to read this manual before operating, adjusting or servicing this machine could cause injury or damage to persons or objects.
-
Page 3: Table Of Contents
ARIES User Manual_ March 2013 Edition Contents Key for machine symbols Operator safety instructions Storage Transporting and handling the machine Transport with one person Transport with two people Introduction Information on safe use Correct use Machine data plate Commencing operation... -
Page 4: Key For Machine Symbols
HAZARD: Failure to read the ARIES machine manual before operating, adjusting or performing maintenance operations on the machine could cause injury or damage to persons or objects. Anyone operating the machine should understand how to use and operate it before starting it up. -
Page 5: Storage
ARIES User Manual_ March 2013 Edition Storage It is advisable to store the machine in its original packaging. Doing so makes it possible to form a column of two packages maximum, with one on top of the other. If the machine is removed from the original packaging and is not used for some time ensure the wheels and drum are not in contact with the ground. - Page 6 ARIES User Manual_ March 2013 Edition Transporting and handling the machine Transport with one person 3. Loosen the belt tightener using the lever pos. 2 fig. A and remove the belts. 4. Once the nut has been loosened (pos. 3 fig. A), turn it towards the inside of the machine until the hollow washers positioned on the motor support spindle come out of their support housings.
-
Page 7: Transport With Two People
ARIES User Manual_ March 2013 Edition Transporting and handling the machine Transport with one person 7. Loosen the handle (pos. 9 fig. A) and 8. Lift the base frame by clasping the front and back. Bring remove the tube from its housing and the belt guard to the edge and take it to the work area. -
Page 8: Introduction
If a situation arises which has not been described in this manual contact your retailer or Kunzle & Tasin s.r.l. Correct use The ARIES wood flooring sander is suitable for the dry sanding of wood floors. Any other use without the consent of the manufacturer is prohibited. -
Page 9: Commencing Operation
ARIES User Manual_ March 2013 Edition Commencing operation Instructions for assembly following transportation To re-assemble the machine following transportation proceed as follows: 1. Open the belt guard. 2. Position the motor in its housing. 3. Secure the motor by tightening the knob (pos. 3 Fig A). - Page 10 ARIES User Manual_ March 2013 Edition Commencing operation Instructions for assembly following transportation CAUTION Excessive belt tension may cause the premature failure of the ball bearings. ± The drum belt must have a 10.5 mm stretch with a centre load of 30 3N.
-
Page 11: Instructions For Electrical Connection
ARIES User Manual_ March 2013 Edition Commencing operation Instructions for assembly following transportation 7. Lift the drum with the lever (pos. 4 fig. A). 8. Connect the power supply cable to the machine and power supply. Instructions for electrical connection... -
Page 12: Instructions On Removing Sawdust Generated During Use
ARIES User Manual_ March 2013 Edition Commencing operation Cables, extensions and plugs WARNING MACHINE WITH 230V∼ 50Hz / 220V∼ 60Hz SINGLE PHASE MOTOR For machines with a 230V~50Hz single phase motor (Europe), a HO5VV-3x2,5 mm HAR approved power supply cable must be used along with an approved 2P+T 16A 200-250V plug. -
Page 13: Compliance With Safety Measures And Warnings
ARIES User Manual_ March 2013 Edition Recommendations on prevention measures for users Compliance with safety measures and warnings HAZARD Using the machine when not fully assembled may cause injury or damage to people or objects. Do not use the machine when it is not fully assembled. Keep all fittings tightly closed. - Page 14 ARIES User Manual_ March 2013 Edition Recommendations on prevention measures for users Compliance with safety measures and warnings WARNING Failure to comply with instructions on this machine and in this manual may cause serious injury and/or damage. Read and comply with all safety instructions. Ensure that all plates, labels, warnings and instructions are secured to the machine.
-
Page 15: Machine Specifications
ARIES User Manual_ March 2013 Edition Machine specifications 750 x 203 mm Abrasive belt dimensions 200 mm Drum width Ø 150 mm Drum diameter Drum speed 2400 revs/min 50 Hz 2500 revs/min 60 Hz Motor 230V ∼ 50 Hz 2.2 kW (A15) 220V ∼... -
Page 16: Machine Warnings
ARIES User Manual_ March 2013 Edition Machine warnings Prohibited use WARNING This equipment is not to be used by anyone (children included) with physical or mental disabilities, or anyone without the relevant experience and knowledge, unless they have received instructions on using the equipment and are supervised by a responsible person to ensure their safety. - Page 17 ARIES User Manual_ March 2013 Edition Starting the machine 5. Open the side guard (fig. C). 6. Lower the tensioning unit using the drum tensioning lever. 7. Insert the abrasive belt ensuring it Tension the drum using the drum tensioning lever.
- Page 18 ARIES User Manual_ March 2013 Edition Starting the machine 11. To start the machine: Stand behind the handle. Turn the knob on the switch pos. 10 fig. B from the 0 position to the START position). Keep it in this position until the motor has reached a sufficient rotation speed.
-
Page 19: Machine Adjustment Procedures
ARIES User Manual_ March 2013 Edition Starting the machine IMPORTANT If starting the machine is difficult in winter when temperatures are very low remove the abrasive belt and start the motor, letting it idle for several minutes. Replace the belt and repeat the start up operations described above. -
Page 20: Adjusting Sanding Pressure
ARIES User Manual_ March 2013 Edition Machine adjustment procedures Adjusting sanding pressure To vary drum pressure on the floor, use the adjustment knob (pos. 14 fig. E and proceed as follows: Turn the adjustment knob clockwise to Turn the adjustment knob anti-clockwise to decrease drum pressure on the floor. -
Page 21: Wheel Adjustment (On A Surface Parallel To The Axis Of The Drum)
ARIES User Manual_ March 2013 Edition Machine adjustment procedures Wheel adjustment (on a surface parallel to the axis of the drum) Before sanding check drum operation on the work surface. The diagram shows the two possible cases: OK = drum and wheels are... -
Page 22: Routine Maintenance To Be Performed
ARIES User Manual_ March 2013 Edition Machine adjustment procedures Sawdust chamber (for the user) To keep the machine in good working condition the following items must be checked and serviced regularly: Sawdust chamber (for the user) Hoover the sawdust chamber regularly. -
Page 23: Dust Bag (For The User)
ARIES User Manual_ March 2013 Edition Machine adjustment procedures Dust bag (for the user) Remove the bag and shake it well to remove sawdust. Turn the bag inside out and wash it in the machine in cold water to prevent blockage of the pores and a decrease in dust collection ability. -
Page 24: Bearings (Only For Technical Support Service)
ARIES User Manual_ March 2013 Edition Routine maintenance to be performed Bearings (only for Technical Support Service) Check bearings regularly for wear or damage according to the following timescales: WHEELS: after the first 2500 hours BELT TIGHTENING PULLEY after the first... -
Page 25: Emergency Situations (For The User)
ARIES User Manual_ March 2013 Edition Emergency situations (for the user) FAULTS CAUSES SOLUTIONS Insufficient cutting Unsuitable or worn abrasive Replace the abrasive Insufficient drum pressure Increase drum pressure Insufficient belt tension Increase belt tension Worn belt Replace the belt... -
Page 26: Declaration Of Conformity
ARIES User Manual_ March 2013 Edition DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY 2006/95 EC, 2006/42 EC 2004/108 EC, 2002/95 EC 2002/96 EC KUNZLE & TASIN S.r.l. Manufacturer and entity authorised to compile and maintain the technical file Registered headquarters Business Management and Production Site Via Circonvallazione Est. -
Page 27: Disposal
ARIES User Manual_ March 2013 Edition Disposal Smaltimento di apparecchiature da rottamare da parte di privati nell’Unione Europea. Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme ad altri rifiuti domestici. Gli utenti devono provvedere allo smaltimento delle apparecchiature da rottamare portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature elettriche ed elettroniche. -
Page 28: Diagrams
ARIES User Manual_March 2013 Edition Diagrams Diagrams Diagrams... - Page 29 ARIES User Manual_March 2013 Edition Diagrams...
-
Page 30: Notes
ARIES User Manual_March 2013 Edition Notes _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________... - Page 31 ARIES User Manual_March 2013 Edition Notes _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________...
- Page 32 March 2013 Edition...
