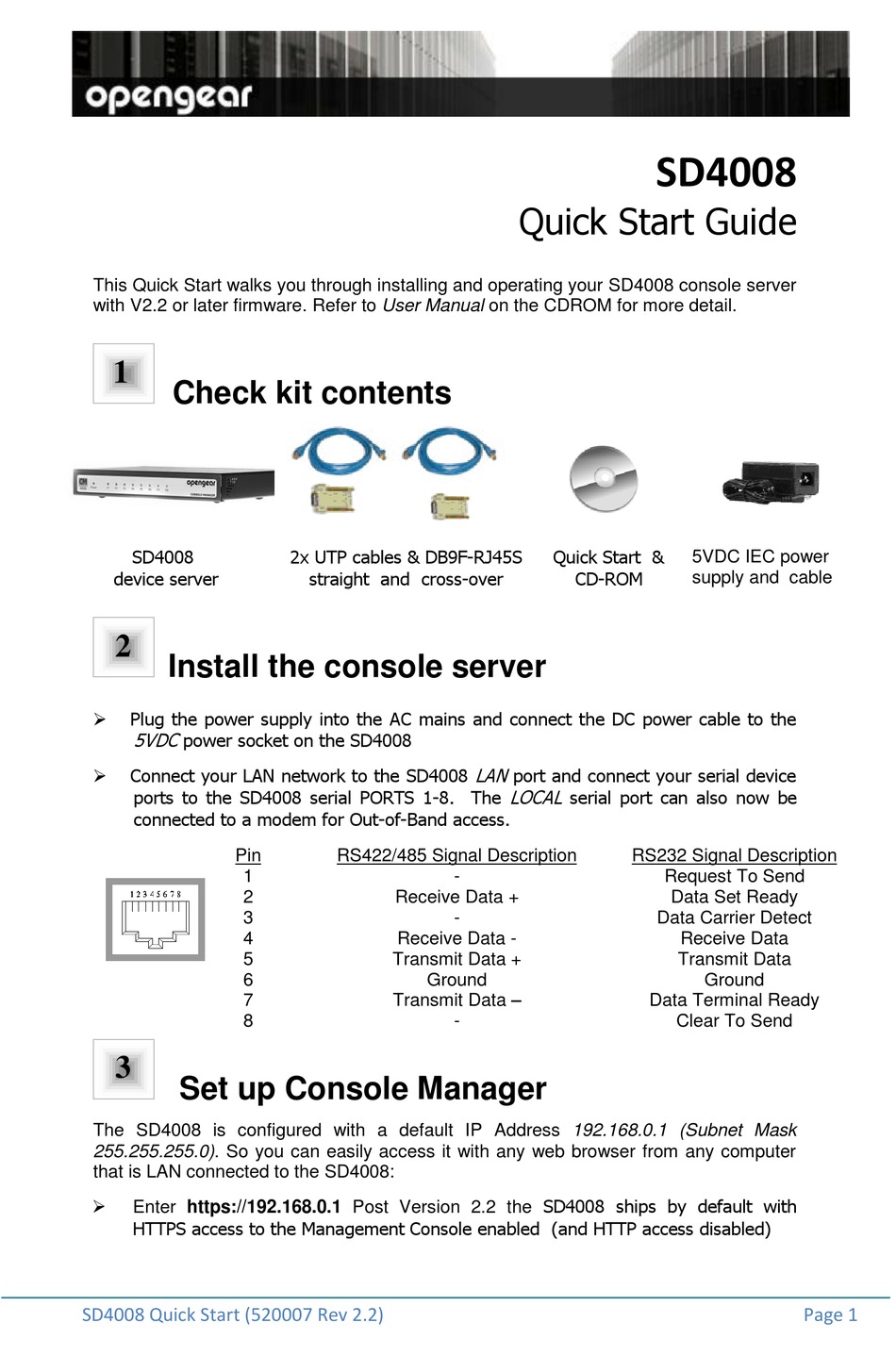

This Quick Start walks you through installing and operating your SD4008 console server
with V2.2 or later firmware. Refer to User Manual on the CDROM for more detail.
1
Check kit contents
SD4008
device server
2
Install the console server
Plug the power supply into the AC mains and connect the DC power cable to the
5VDC
power socket on the SD4008
Connect your LAN network to the SD4008
ports to the SD4008 serial PORTS 1-8. The
connected to a modem for Out-of-Band access.
Pin
1
2
3
4
5
6
7
8
3
Set up Console Manager
The SD4008 is configured with a default IP Address 192.168.0.1 (Subnet Mask
255.255.255.0). So you can easily access it with any web browser from any computer
that is LAN connected to the SD4008:
Enter https://192.168.0.1 Post Version 2.2 the SD4008 ships by default with
HTTPS access to the Management Console enabled (and HTTP access disabled)
SD4008 Quick Start (520007 Rev 2.2)
2x UTP cables & DB9F-RJ45S
straight and cross-over
RS422/485 Signal Description
-
Receive Data +
-
Receive Data -
Transmit Data +
Ground
Transmit Data –
-
Quick Start Guide
Quick Start &
CD-ROM
LAN
port and connect your serial device
LOCAL
serial port can also now be
RS232 Signal Description
SD4008
5VDC IEC power
supply and cable
Request To Send
Data Set Ready
Data Carrier Detect
Receive Data
Transmit Data
Ground
Data Terminal Ready
Clear To Send
Page 1
