Opengear ACM5004-GV Quick Start Manual

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Thank you for purchasing the ACM5004-GV. This Quick Start walks you through both
installation and configuration. For more details refer to the

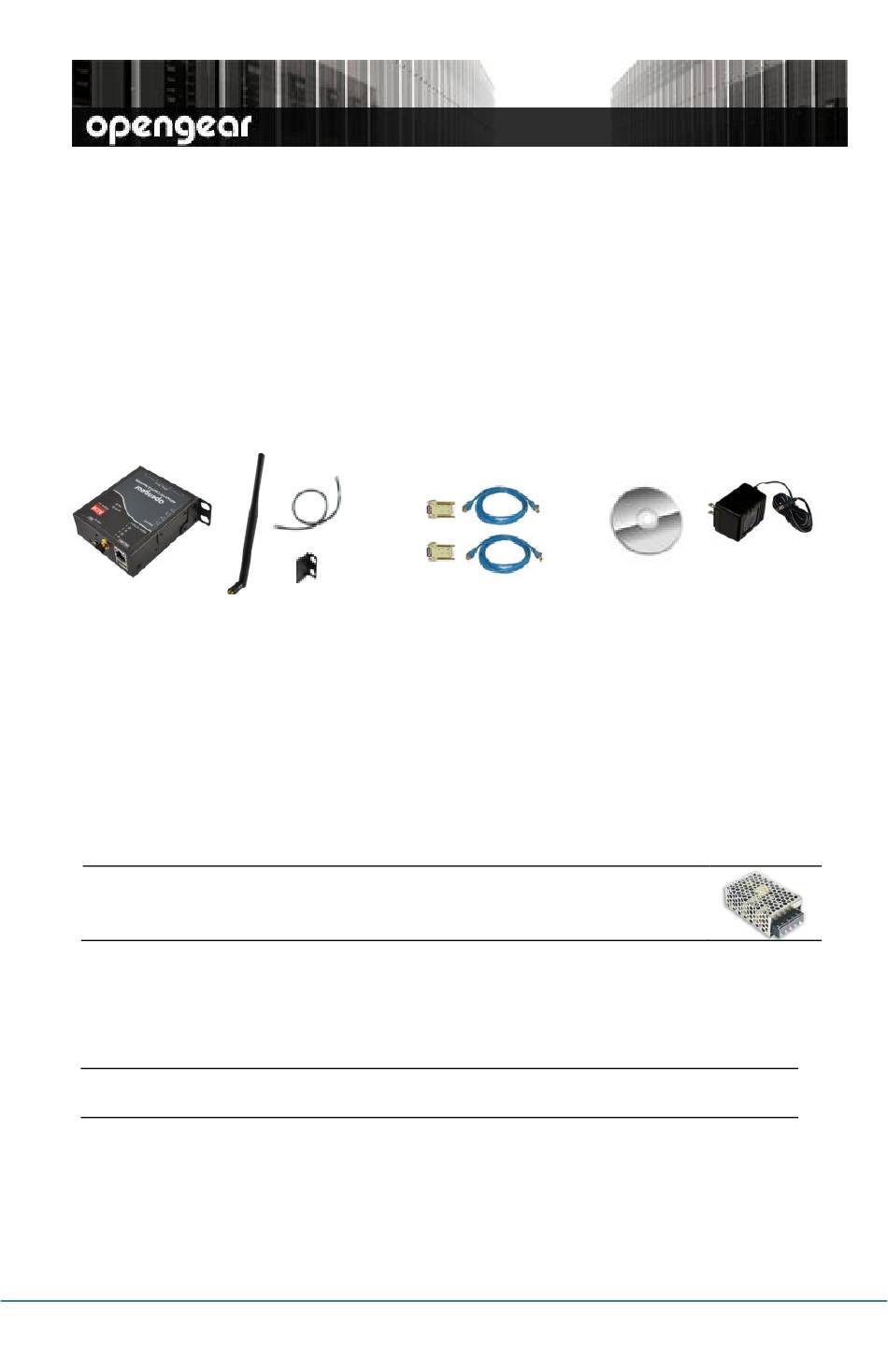

Step1 Check kit contents
ACM5004-GV
3G antenna, cable
& mounting tab
& mounting tab
Ensure you have the correct model. The ACM5004-GV works with Verizon.

Step 2 Configure the hardware

Attach rubber feet to base. Also attach the mounting tab and 3G antenna
Slide the appropriate AC socket adapter into the power pack and plug it into the
AC mains. Connect the DC power cable to the PWR socket. Use the provided DC
Power barrel connector lock tab to securely keep the power connector attached
The -SDC models have an external DC-DC power converter (input
Note:
voltage +/- 36V DC to 72V DC. The converter power
cable/connector plugs into the PWR socket on the ACM5000
Connect the Ethernet port (LAN USB1) to your network. Plug your serial console
devices in to the Serial Ports. The RJ45 sockets on the ACM5004-GV use the
standard Cisco console pin-out
Screw on the antenna Screw on the antenna
Note: Newer revisions may come with a second AUX antenna connector for receive
diversity. Also requires an external antenna Part# 569006 and cable 449041

Step 3 Set up console server/cellular router

The default IP Address is
on any computer that is network connected to the ACM5004-GV:
ACM5000-GV Quick Start (520029-Rev 1.7)
UTP cables & straight (319014) &
crossover (319015) DB9F-RJ45S
192.168.0.1
(subnet mask
ACM5004-GV

Quick Start Guide

User Manual
on the CDROM.
Quick Start
& CDROM
255.255.255.0
). With a web browser
12VDC
power pack
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACM5004-GV and is the answer not in the manual?

Questions and answers

Related Manuals for Opengear ACM5004-GV

Summary of Contents for Opengear ACM5004-GV

  • Page 1: Quick Start Guide

    Connect the Ethernet port (LAN USB1) to your network. Plug your serial console  devices in to the Serial Ports. The RJ45 sockets on the ACM5004-GV use the standard Cisco console pin-out Screw on the antenna Screw on the antenna ...
  • Page 2 Select System: Administration. Enter and confirm a new System Password  and click Apply To assign your ACM5004-GV a static IP address or to permanently enable DHCP  on the primary Ethernet network, select System: IP then Network Interface and check DHCP or Static for Configuration Method. Leave the Failover...
  • Page 3 High and ON=Strong Step 5 OoB access To directly access the ACM5004-GV, it needs to have a Public IP address and it must not have SSH access firewalled. Almost all carriers offer corporate mobile data service/plans with a Public (static or dynamic) IP address. These plans often have a service fee attached.
  • Page 4 (refer to the User Manual) Step 6 Enable cellular router features The ACM5004-GV can provide cellular routing (although this is disabled by default). In this mode the connection to the carrier cellular network is always on, but IP traffic is selectively routed between the cellular connected network and the local Ethernet network (LAN): Select the Forwarding &Masquerading tab on System: Firewall...
