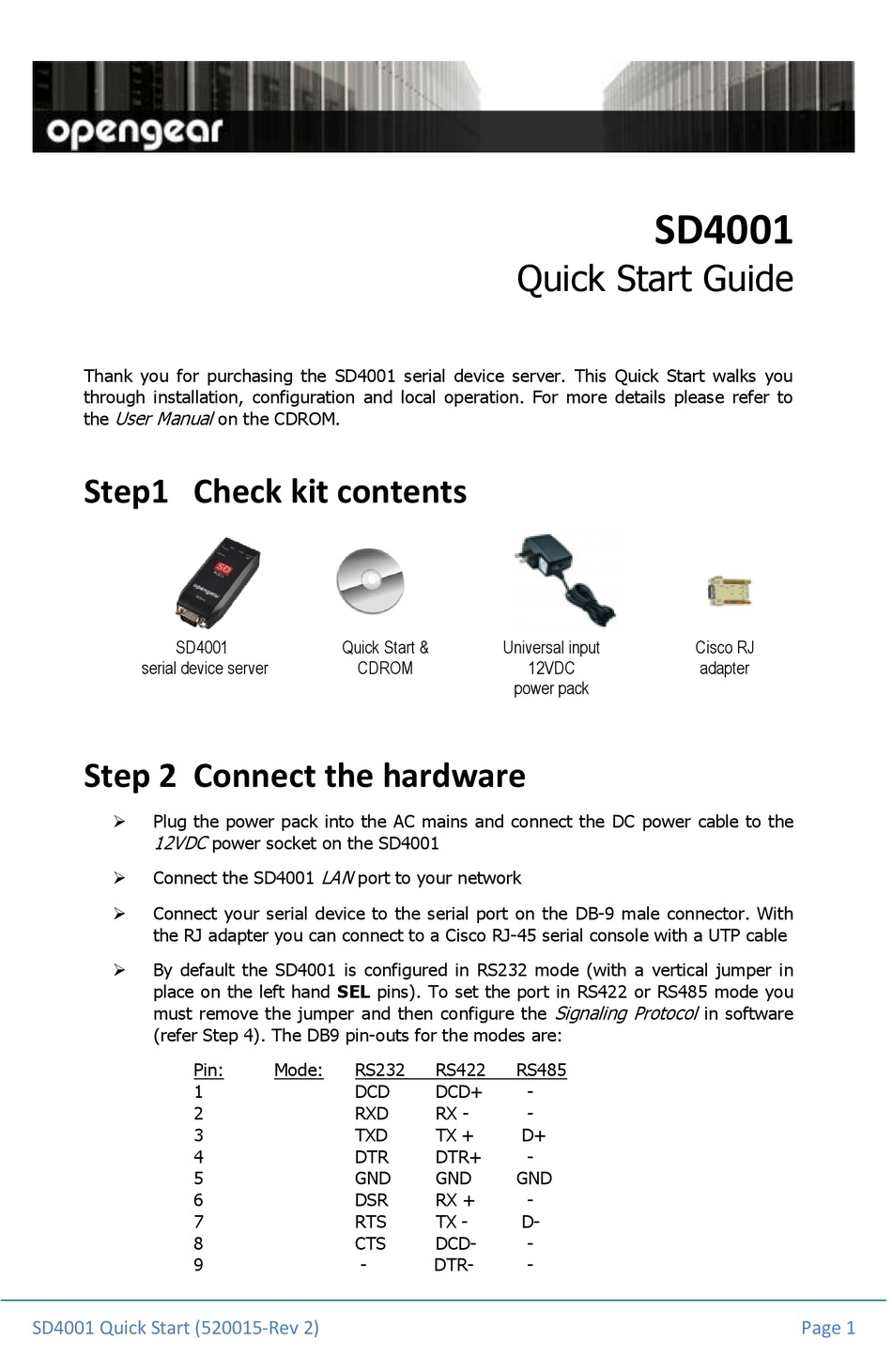

Opengear sd4001 Quick Start Manual

Thank you for purchasing the SD4001 serial device server. This Quick Start walks you
through installation, configuration and local operation. For more details please refer to
User Manual
the
Step1 Check kit contents
SD4001
serial device server
Step 2 Connect the hardware
Plug the power pack into the AC mains and connect the DC power cable to the

12VDC
Connect the SD4001

Connect your serial device to the serial port on the DB-9 male connector. With

the RJ adapter you can connect to a Cisco RJ-45 serial console with a UTP cable
By default the SD4001 is configured in RS232 mode (with a vertical jumper in

place on the left hand SEL pins). To set the port in RS422 or RS485 mode you
must remove the jumper and then configure the
(refer Step 4). The DB9 pin-outs for the modes are:
Pin:
1
2
3
4
5
6
7
8
9
SD4001 Quick Start (520015-Rev 2)
on the CDROM.
Quick Start &
CDROM
power socket on the SD4001
LAN
port to your network
Mode: RS232
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
-

Quick Start Guide

Universal input
12VDC
power pack
Signaling Protocol
RS422 RS485
DCD+ -
RX - -
TX + D+
DTR+ -
GND GND
RX + -
TX - D-
DCD- -
DTR- -
SD4001
Cisco RJ
adapter
in software
Page 1
