P C X 2 5 6 U S E R M A N U A L
If Timed is selected the system will arm after the exit time has expired.
If Final Door is selected, the system will only arm after the entry/exit door has been opened/closed.
If PTS (Push To Set) is selected, the system will only arm after the Push To Set button has been
pushed.

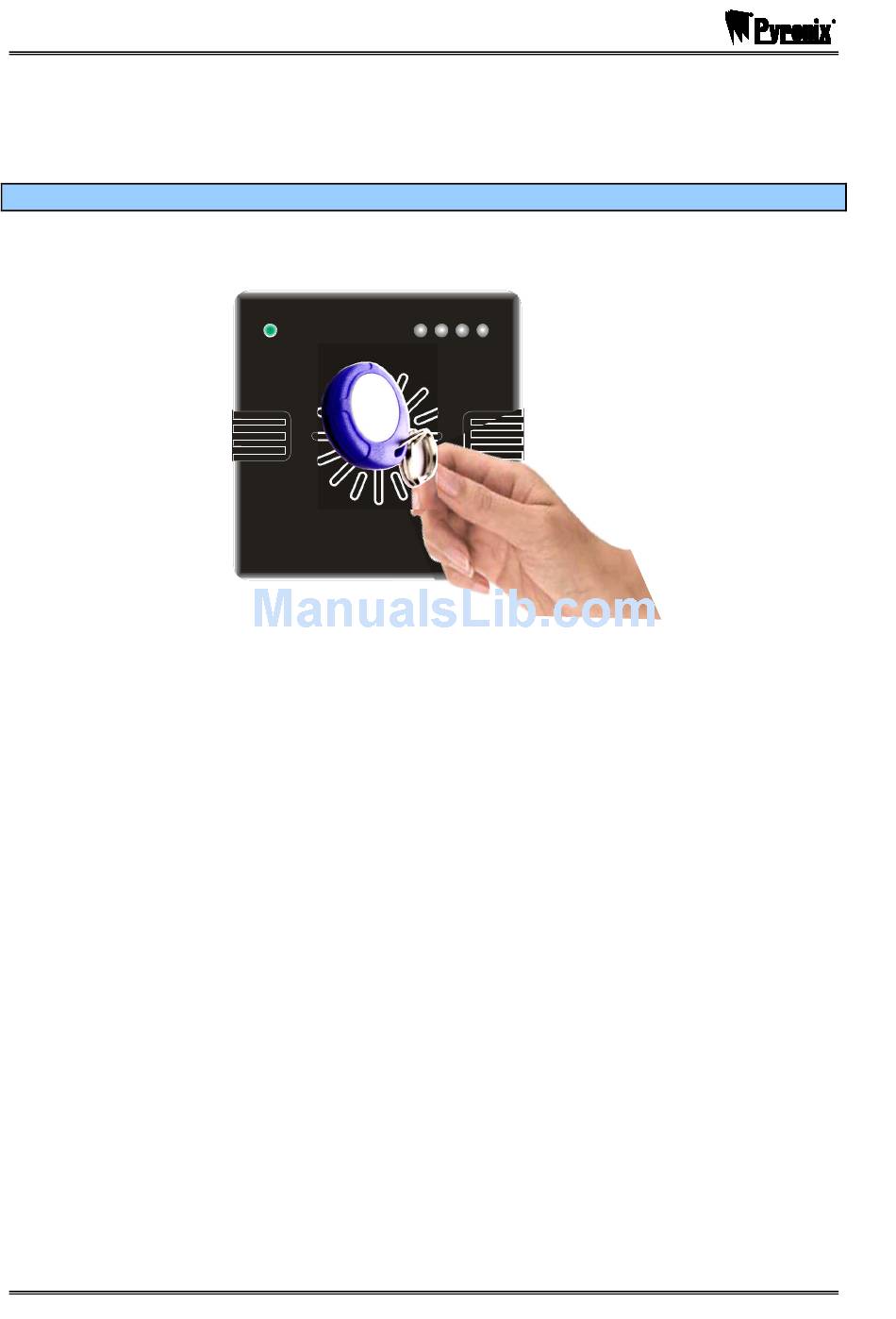

2.4.2 Disarming Partitions / Arm Modes via the External Tag Reader

1. To disarm the system, hold up a valid card/tag until the left GREEN LED comes on, and
remove the card/tag.
2. Hold up the card/tag again, the system will disarm the assigned Partition(s) / Arm Mode.
Remove the card/tag.
3. Once the assigned Partition(s) / Arm Mode have been disarmed, the GREEN LED will
extinguish after 15 seconds.
Page: 16 RINS867-2
