- Page 1 PCX 46 User Manual RINS1604-3 Software Revision >V9.26...
-
Page 2: Table Of Contents
F: Arming / disarming with the tag reader G: Open doors / Arm and Disarm (Entry Control) H: SMS Commands (GSM V9.2 or above only) I: Pyronix SMS Control Mobile Phone Application J: Chime Feature K: Personal Attack From Keypad... -
Page 3: A: Introduction
A: Introduction Hybrid Integrated System with Automation Control The PCX46 is hybrid alarm system. It integrates the award winning Enforcer 2-way wireless technology with 30 automation outputs and a host of high security features. The PCX46 is easy to use and designed to communicate to you about any system activations via SMS messages. It also can send alarms to the Alarm Receiving Centre and maintenance company. 2-Way Wireless Technology Using the wireless input expansion module RIX32-WE, the PCX46 convers into a high security wireless system taking full advantage of Pyronix’s innovative wireless technology using the Pyronix High Security Wireless Encryption Protocol. This module also allows the access to all Enforcer system 2-way wireless peripherals. No inhibitions: The two way wireless movement detectors are fully operational when the system is armed, making your system more secure, compared to other wireless systems, where devices are disabled for up to five minutes after every activation to save battery, therefore compromising your security. Battery Monitoring/Saving: The Enforcer wireless system uses advanced technology to preserve the battery life of each wireless device. However, the system informs you when a battery needs replacing a month in advance before the device stops working. This key feature gives you enough time to change the battery in the specific device. Other wireless alarm systems may not give you a low battery warning signal, meaning that devices could stop working, leaving your environment unprotected. High Security Encryption: The wireless protocol is encrypted with 128 bit making it impossible to replicate or copy its wireless peripherals. It also uses an intelligent wireless jamming detection technology. -

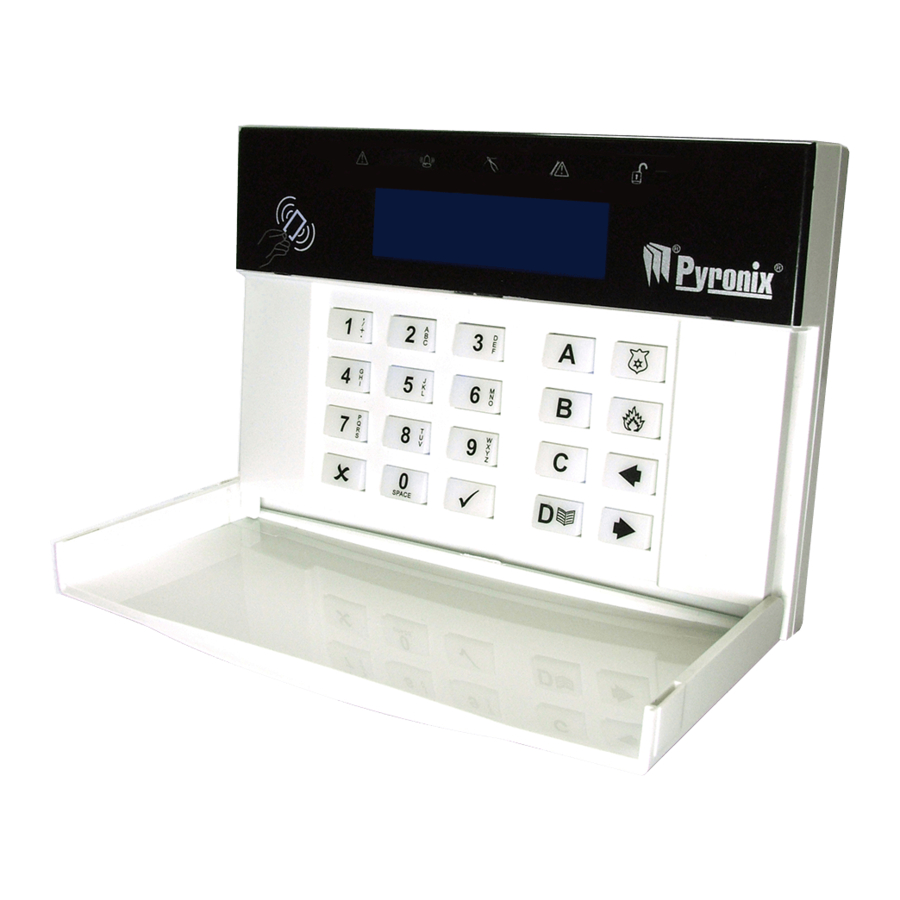

Page 4: B: Keypads / Readers
Arming/Disarming Methods: There are three different devices that may be used in the process of arming/disarming the alarm = Enables chime and displays additional C H A P T E R 2 : K E Y P A D S / R E A D E R S PCX 46 system; these are the keypad, tag reader and keyfob. Control Panel Keypad Time 4:40am = Quick exit manager menu. -
Page 5: C: Using The Keyfob
Push to set: Press the push to set If a PCX-RIX32-WE (Enforcer wireless expander) is connected to the PCX 46, it is possible to learn up to 32 button installed by your engineer to wireless 4 button keyfobs that may be programmed for specific functions: no action, show system status, arm the system arm area, disarm area, operate user automation outputs and PA alarm activation. -
Page 6: D: Arming The Pcx 46
D: Arming the PCX 46 E n t e r Y o u r C o d e A r m A r e a s P l e a s e W a i t P C X 4 6... -
Page 7: E: Disarming The Pcx 46
E: Disarming the PCX 46 E n t e r Y o u r C o d e D i s a r m A r e a s P C X 4 6 P C X 4 6 User... -
Page 8: F: Arming / Disarming With The Tag Reader
F: Arming / disarming with the tag reader If you have a tag reader installed, then it will be possible to arm and disarm the alarm system using a tag. Disarmed Armed NOTE: If the PCX 46 has failed to set, a fault will be displayed on the internal tag reader Disarmed Armed or a fail to set sound will activate on the external tag reader buzzer. G: Open doors / Arm and Disarm (Entry Control) A tag reader can also be used to unlock entry doors. Disarmed Locked Armed... -
Page 9: H: Sms Commands (Gsm V9.2 Or Above Only)
Description: Example SMS command response: 123456 Arm A 123456 = User Code. Arm A = Will arm the PCX 46 in Area A. Final Arm; Area A 123456 Arm ABCD 123456 = User Code. Arm ABCD = Will arm the PCX 46 in Area ABCD. - Page 10 H: SMS Commands (GSM version only) - Continued... Checking the System Status via SMS text command Example SMS command send: Description: Example SMS command response: 123456 Status 123456 = User Code. Status Area A Disarmed No Faults Area B Disarmed No Faults Area C Disarmed No Faults Area D Disarmed No Faults Operating the User Automation Outputs via SMS text commands...
-
Page 11: I: Pyronix Sms Control Mobile Phone Application
I: Pyronix SMS Control Mobile Phone Application There is a mobile phone application (Android only) that is available to download via our website and will control certain aspects of your control panel from your mobile phone. 1) Download the Pyronix SMS control application from www.pyronix.com/downloads. 2) Install the application on your mobile phone (making sure “download from unknown sources” is enabled in your security settings). 3) Open the application, it will then be installed on your phone automatically. -
Page 12: J: Chime Feature
NOTE: If using wireless movement detectors on the system it is not recommended to have chime enabled for these detectors as this will drain the battery. PCX 46 Alarm Silenced Alarm Silenced Time 4:40am Keypad PA Keypad Fire... -
Page 13: M: Master Manager Menu Options
Allow Engineer Menu If this function is enabled, the engineer will require authorisation from you before they can access the engineer menu. Check Credit Checks the credit level of the SIM Card installed on the PCX 46 GSM modem only Block Remote Arming Blocks any attempt at arming the system remotely via the upload/download software Block UDL... -
Page 14: N: Entering The Master Manager Menu
N: Entering the Master Manager Menu P C X 4 6 E n t e r C o d e B Y P A S S I N P U T S ? Default Master User Code: 1234 T i m e 0 2 : 5 3 [ * * * * ] 1 Master Manager Menu: Bypass Inputs B y p a s s I n p u t... -
Page 15: Master Manager Menu: Configure Date & Time
3 Master Manager Menu: Configure Date & Time* D A T E & T I M E ? Y e a r 0 0 - 9 9 M o n t h 1 - 1 2 D a y 1 - 3 1 H o u r s 0 - 2 3 M i n u t e s... -
Page 16: Master Manager Menu: Change Codes (Configure User Codes, Learn Tags And Keyfobs)
4 Master Manager Menu: Change Codes (Configure user codes, learn tags and keyfobs)* 4.1 Change Codes: Configure User Codes P r e s s C K e y t o D E L E T E c o d e L E A R N U S E R C O D E S U s e r C o d e s / T a g s / E m p t y... - Page 17 4.2 Change Codes (configure proximity tags) P r e s s C K e y t o D E L E T E t a g U s e r T y p e L e a r n U s e r C o d e s / E m p t y [ 0 1 ] E n t e r U s e r C o d e...
- Page 18 [ 8 ] B u t t o n s U N L O C K + I I NOTE: Keyfobs can only be learnt to the PCX 46 control panel if a PCX-RIX32-WE is installed (Enforcer wireless expander) PA: To activate a PA on the keyfob, 2 different buttons must be pressed together.
-
Page 19: Master Manager Menu: Review Logs (Event Memory Logs)
5 Master Manager Menu: Review Logs (Event memory logs) R E V I E W L O G ? P a n e l L o g ? 0 1 / 0 1 0 0 : 1 1 : 4 4 R e p e a t f o r a l l S t a r t o f L o g A l a r m S i l e n c e d... -
Page 20: Master Manager Menu: Sms Phonebook
6 Master Manager Menu: SMS Phonebook S M S P H O N E B O O K ? S M S N u m b e r U s e r M o b i l e [ 0 1 ] D o n o t u s e SMS Number [00]-[25]... -
Page 21: Master Manager Menu: Pc Connect Menu
9 Master Manager Menu: PC Connect Menu P C C O N N E C T M E N U ? S e l e c t P C t o S e l e c t O p e r a t i o n C a l l i n g R e m o t e P C d i a l [ 1 ]... -
Page 22: Master Manager Menu: Block Remote Arm
11 Master Manager Menu: Block Remote Arm B L O C K R E M O T E B l o c k R e m o t e A r m ? This function will block any attempt made to arm and disarm A R M I N G ? [ 0 ] the UDL software if enabled. -
Page 23: Master Manager Menu: Exit Master Menu
13 Master Manager Menu: Exit Master Menu E X I T E N G I N E E R S P C X 4 6 B Y P A S S I N P U T S ? P C X 4 6 M O D E ? T i m e 0 : 2 5 T i m e 0 : 2 5... -
Page 24: O: Engineer Contacts And Table
O: Engineer Contacts and Table Alarm Company Date of Installation Site Reference Engineer Name Engineer Contact Number Installed to which Grading? Environmental Class Other Comments... -
Page 25: P: Input Tables
P: Input Tables Inputs Input Name Input Areas Description Wireless Wired 9 (RIX Address 0) 10 (RIX Address 0) 11 (RIX Address 0) 12 (RIX Address 0) 13 (RIX Address 0) 14 (RIX Address 0) 15 (RIX Address 0) 16 (RIX Address 0) 17 (RIX Address 1) - Page 26 P: Input Tables Wired Inputs Input Name Input Areas Description Wireless Wired 33 (RIX Address 3) 34 (RIX Address 3) 35 (RIX Address 3) 36 (RIX Address 3) 37 (RIX Address 3) 38 (RIX Address 3) 39 (RIX Address 3) 40 (RIX Address 3) 41 (Keypad Address 0) 42 (Keypad Address 0)
-
Page 27: Q: User Tables
Q: User Tables User Name Code/Tag/Keyfob User Name Code/Tag/Keyfob User Name Code/Tag/Keyfob... -
Page 28: R: Outputs
R: Outputs Wired Outputs Latched / Timed Type Action PGM (Onboard) STRB (Onboard) BELL (Onboard) XPGM1 (Input 7) XPGM2 (Input 8) PGM1 (ROX Address 0) PGM2 (ROX Address 0) PGM3 (ROX Address 0) PGM4 (ROX Address 0) PGM5 (ROX Address 0) PGM6 (ROX Address 0) PGM7 (ROX Address 0) PGM8 (ROX Address 0) - Page 29 R: Outputs Wired Outputs Latched / Timed Type Action PGM12 (ROX Address 1) PGM13 (ROX Address 1) PGM14 (ROX Address 1) PGM15 (ROX Address 1) PGM16 (ROX Address 1) PGM1 (RIX Address 0) PGM2 (RIX Address 0) PGM3 (RIX Address 0) PGM4 (RIX Address 0) PGM1 (RIX Address 1) PGM2 (RIX Address 1)
-
Page 30: S: Wireless Outputs
S: Wireless Outputs Wireless Outputs Timed Type Action (PCX-RIX32-WE) BELL 1 STRB 1 BELL 2 STRB 2 T: Product Information For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste. Please recycle where facilities exist. -
Page 31: U: Notes
U: Notes...
