Replacement Procedures
Installing the LCD Module
Install the LCD panel according to the following procedures and Figure 4.39.
1. Connect the LVDS cable to the LCD panel connector, and adhere the clear tape to the
back of the LCD panel.
2. Align the LCD hinges with the LCD panel and secure them with six M2x2.5 screws,
according to the following procedures indicated in Figure 4.39.
3. Place the LCD module in the LCD cover assembly.
4. Connect the camera module cable to the camera module.
5. Secure the LCD panel to the LCD cover assembly with two M2.5x5 screws.
Satellite P770/P775 Series Maintenance Manual [CONFIDENTIAL]
M2×2.5*6

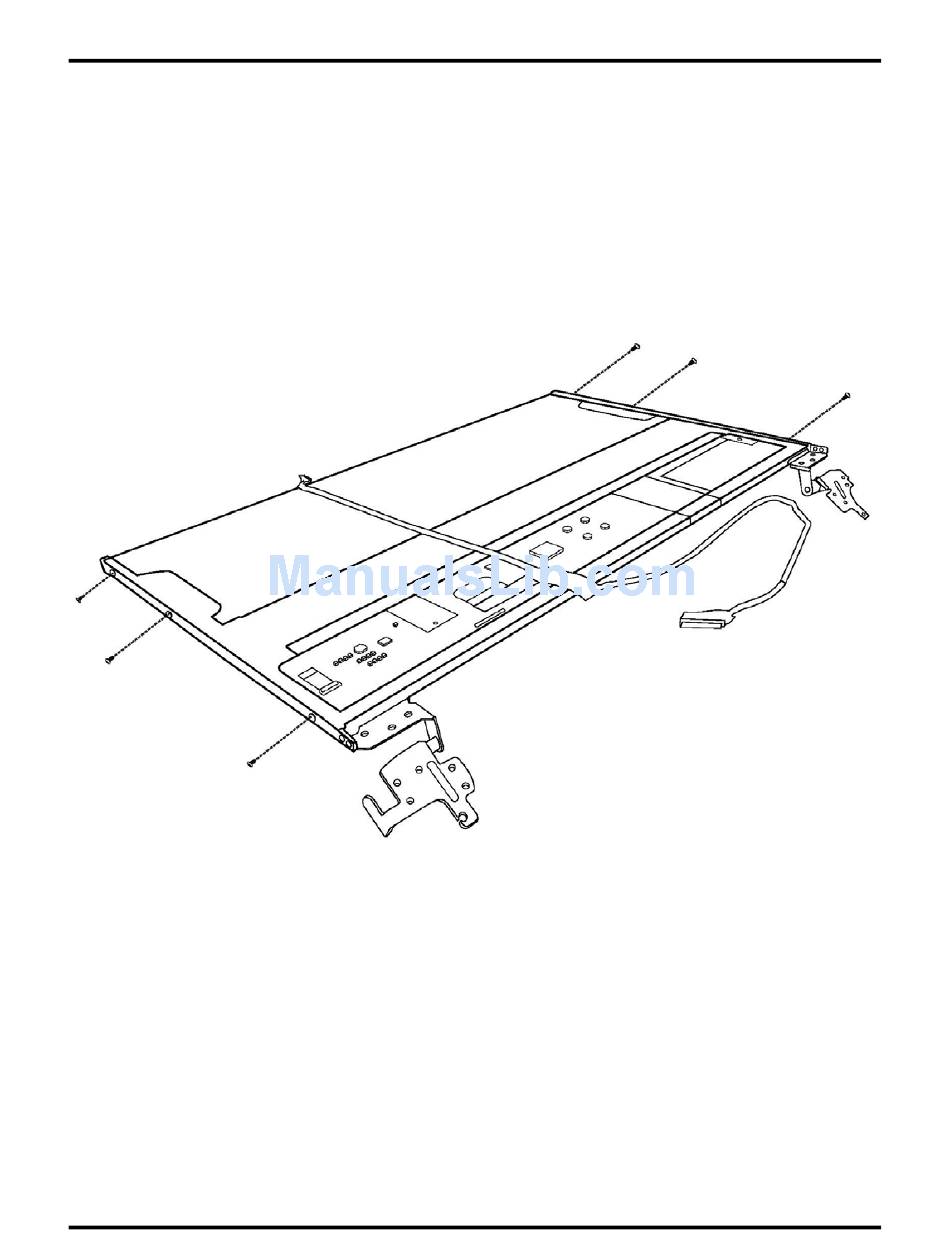

Figure 4.39 Installing the LCD hinges
4
4-53
