4 Replacement Procedures
specified style in document.
1. Rotate the cam on the CPU socket counterclockwise to the unlock position with a flat
blade screwdriver.
2. Remove the CPU.

Installing the CPU and Thermal Module

Install the CPU and Thermal Module according to the following procedures.
1. Make sure the cam is in the unlock position.
2. Seat the CPU on the socket, using care not to damage the pins. Align the CPU with the
CPU socket by using the triangle as a guide.
3. Rotate the cam clockwise to the lock position with a flat blade screwdriver.
CAUTION:
When installing the thermal module, keep the following in mind:
1. Be sure to confirm the correct position for the module.
2. Secure the relevant screws on the thermal module to the motherboard according to the
number sequence sealed on the thermal module.
4. Reapply Shinetsu 7762 grease on the CPU thermal module as shown in Figure 4.32. If you
use a new CPU thermal module, remove the release papers on the thermal pads first.
Error! No text of specified style in document. Error! No text of

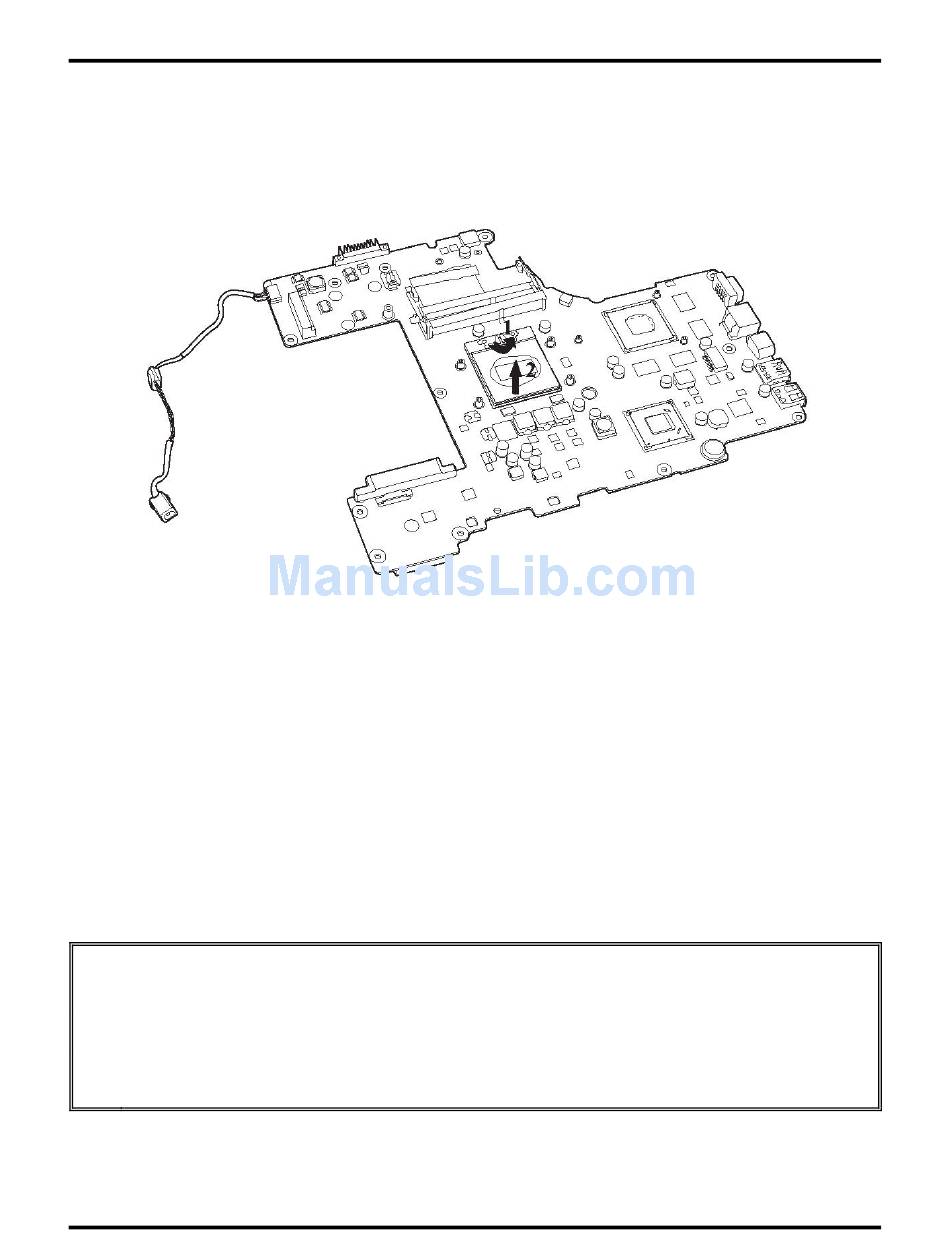

Figure 4.31 Removing the CPU
[CONFIDENTIAL] Satellite P770/P775 Series Maintenance Manual
