Thermal Fan; Removing The Thermal Fan; Installing The Thermal Fan - Toshiba Satellite P775 Series Manual

4 Replacement Procedures
specified style in document.
4.15

Thermal Fan

Removing the Thermal Fan

Remove the thermal fan according to the following procedures and Figure 4.25.
1. Disconnect the thermal fan cable from the motherboard and remove the one M2.5x5 screw.
2. Remove the thermal fan from the logic lower assembly.
M2.5×5*1

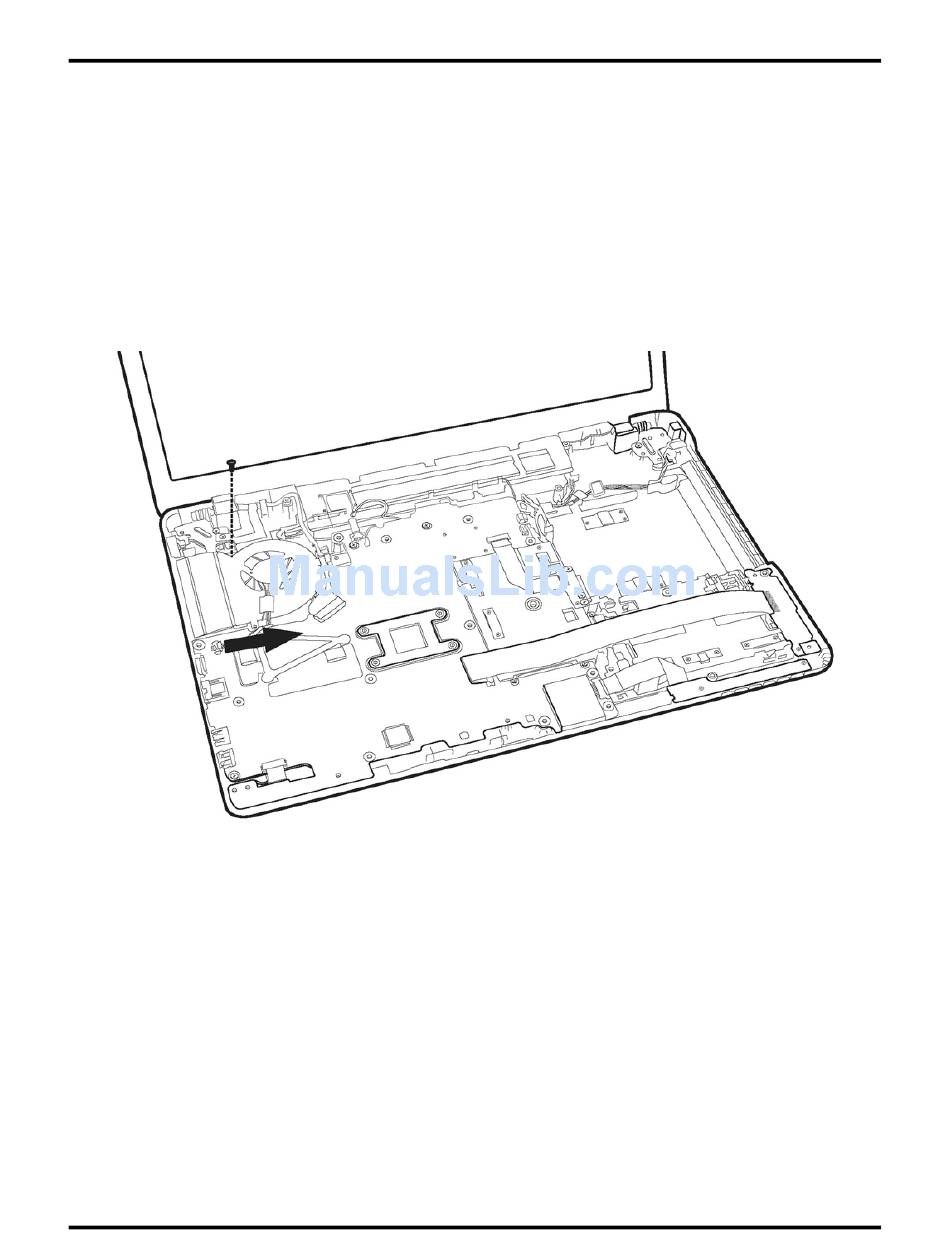

Figure 4.25 Removing the thermal fan from the logic lower assembly

Installing the Thermal Fan

Install the thermal fan according to the following procedures.
1. Seat the thermal fan in the logic lower assembly.
2. Secure the thermal fan with one M2.5x5 screw. Connect the thermal fan cable to the
motherboard.
