Summary of Contents for Prestigio GeoVision 430

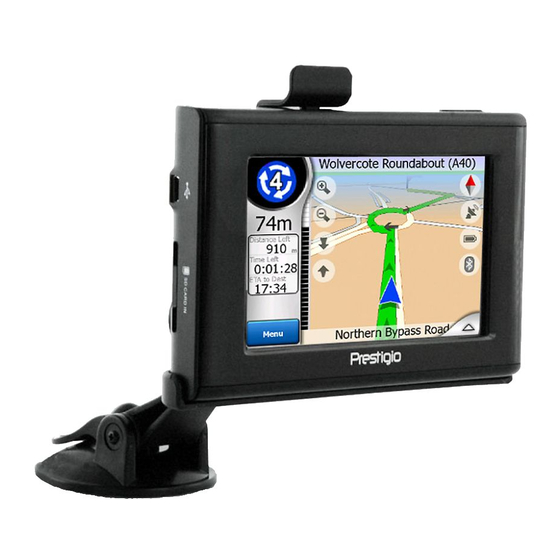

- Page 1 Prestigio GeoVision 430 GPS Navigational and Multimedia System User Manual Version 1.6...
- Page 2 The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
-
Page 3: Table Of Contents
Table of Contents 1. Getting Started 1.1 Safety Precautions 1.2 Package Content 2. Product Views 2.1 Front and Top Views 2.2 Left and Right Side Views 2.3 Rear View 3. System Connections 3.1 Connecting to External GPS Antenna 3.2 Connecting to Earphone 3.3 Connecting to PC 3.4 Inserting/Removing SD Memory Card 3.5 Connecting to AC Adaptor... -
Page 4: Getting Started
Getting Started 1. Getting Started Thank you for purchasing Prestigio GPS Navigational and Multimedia System. You have made an excellent choice and we hope you will enjoy all of its capabilities. The product offers a fully functional personal navigation system together with multimedia players such as MP4 player, MP3 player, and photo viewer. -
Page 5: Package Content
Getting Started 1.2 Package Content Item Description Quantity Prestigio GeoVision 430 User Manual Driver DVD GPS Antenna AC Adaptor Car Adaptor Mounting cradle USB Cable Mounting Bracket Touch Pen... -
Page 6: Product Views
Product Views 2. Product Views The images in this document are for user reference only. The actual product may look slighly different from these images. 2.1 Front and Top Views 4.3” LCD screen Power Button Press and hold the button to exit or activate standby mode. 2.2 Left and Right Side View USB Port Connect to PC for map updates. -
Page 7: Rear View
Product Views Earphone Jack Connect to earphone. On board speaker automatically mutes when earphone is connected. Volume Control Adjust the volume of earphone or on board speaker. 2.3 Rear View External GPS Antenna Jack Connect to external GPS antenna. Power Swtich Switch power on/off. -
Page 8: System Connections
System Connections 3. System Connections WARNING: Switch off and unplug the unit and any other external device connected to the unit before attempting to connect the unit to any external device. Failure to comply may result damages to both the unit and the connected device. -
Page 9: Connecting To Pc
System Connections WARNING: Excessively loud volume may detriment hearing. Turn down the volume before connecting to the earphone and then raise the volume to appropriate level. 3.3 Connecting to PC WARNING: Please install ActiveSync software from the driver DVD before connecting device to host computer. -
Page 10: Connecting To Ac Adaptor
System Connections 3.4 Inserting SD Memory Card The unit is designed with a SC memory slot for multimedia access. Insert the SD memory card into the unit and press until it locks in place as shown below. To remove SD memory card, gently press it with fingernail. -
Page 11: Connecting To Car Adaptor
Disconnect the unit from the Car Adaptor when starting the vehicle. WARNING: Prestigio GeoVision 430 comes with a built-in rechargeable battery. Please review the following details for precautions and maintenance: Battery should only be used and charged when temperature is between 32°... -
Page 12: Navigation
Navigation 4. Navigation Please refer to GPS navigation manual on the manual CD for detailed instructions of how to use navigation function. To view the manual, simply insert manual CD into a computer optical drive. The files are sorted by languages under the path X:\manuals\ where X denotes the optical drive name. -
Page 13: Photo
Photo 5. Photo Prestigio GeoVision 430 is built in with SD memory card slot. MP3, JPEG, and MPEG-4 files can be stored in the SD memory card and played via the unit. 5.1 Loading Files WARNING: Do not store MP3, JPEG and MPEG-4 format files in the flash storage, for the flash storage is strictly used for map data storage. -
Page 14: Viewing Files
Photo 5.2 Viewing Files in the main menu to enter photo viewer main screen as shown at the left. At the photo viewer main menu, tap to enter folders menu. Double tap on the “MMC_Storage” folder icon to explore files stored in the card. - Page 15 Photo to rotate file 90∘counter clockwise. to go to previous file, go to next file. to zoom in or out. 10. Tap to play the file in full screen mode. Double tap the screen to return to photo viewer main screen. 11.
-
Page 16: Setting
Setting 6. Setting to enter the setting menu. The screen is displayed as shown below. to return to main menu. 6.1 Languge to enter the language setting menu. The screen is displayed as shown below. -
Page 17: Date & Time
Setting to cycle through language options. to confirm or to return. 6.2 Date & Time to enter the date & time menu. The screen is displayed as shown below. to select appropriate time zone. of date group to change the corresponding date. of time group to change the corresponding time. -
Page 18: Volume
Setting 6.3 Volume to enter the volume menu. The screen is displayed as shown below. or drag the slider to adjust volume. to confirm or to return. 6.4 Backlight to enter the backlight menu. The screen is displayed as shown below. -
Page 19: Screen
Setting or drag the slider to adjust backlight brightness. to cycle through time duration before system enter sleep mode. Time duration is measured in the unit of minutes. to confirm or to return. 6.5 Screen to enter the screen calibrating menu. The screen is displayed as shown below. -
Page 20: Power
Setting 6.6 Power to enter the power menu. The screen is displayed as shown below. The gauge bar indicates the current battery status. to confirm. -
Page 21: Mounting Accessories
Mounting Accessories 7. Mounting Accessories When operating the unit in vehicle, the unit can be mounted on wind shield using the supplied mounting accessories (mounting bracket and mounting cradle) to prevent unnecessary accidents. Take the following steps to operate: WARNING: Do NOT operate the unit when the vehicle is in motion, for it may interfere with driving operations causing accidents. -
Page 22: Troubleshooting
Troubleshooting 8. Troubleshooting Take steps described in the tables below to solve simple problems before contacting customer service. WARNING: Immediately turn off the unit and disconnect the power adapter if the unit is not working properly. Never try to repair the unit without authorized professionals for it may damage the unit. - Page 23 WARNING: Static or other external interference may cause Prestigio GeoVision 430 to function abnormally. In order to remove abnormality, please unplug the power cord and then plug it into the outlet again to reset the device. If the problem persists, please unplug the power cord and consult local service center or the qualified technician.
-
Page 24: Appendix
We made every effort to ensure that the information and procedures in this user manual are accurate and complete. No liability can and will be accepted for any erros or omissions. Prestigio reserves the right to make any changes without further notice to any products herein. -
Page 25: Trademark Acknowledements
Appendix 9.4 Trademark Acknowledements IBM is a registered trademark of International Business Machines Corporation. iBook and iMac are tradmarks of Apple Computer, Inc. PowerBook and Power Macintosh are trademarks of Apple Computer, Inc. Microsoft, Windows, Windows 98, Windows ME, Windows 2000, Windows XP, Windows Vista, and Windows 2003 Server are either registered trademarks of Microsoft Corporation in the United States and/or other countires.
