The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
CAUTION
To reduce the risk of electric shock, do not remove the cover (or back). No
1.
user-serviceable parts inside. Refer servicing to qualified service personnel.
The manufacturer should not hold responsibility for the damage caused by any
2.
substitutions and modifications of the product without authorization from the
manufacturer or authorized unit
WARNING
The device should not be exposed to dripping or splashing and no objects filled with
liquids should be placed on the device.
To prevent the GPS from being damaged, be sure to keep the GPS out of direct
sunlight or heat. Maintain well-ventilated conditions around the unit to avoid
overheating.
Important Safety
.
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RoadScout 4150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Prestigio RoadScout 4150

  • Page 1: Important Safety Instructions

    Important Safety Instructions The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION To reduce the risk of electric shock, do not remove the cover (or back). No user-serviceable parts inside.
  • Page 2 Accessories Accessories List ITEM NAME Car Charger Mounting Cradle USB Cable Stylus Pen Leather Carrying Case (RS5150 only) Driver/Documentation CD User Manual Warranty Card EN - 1...
  • Page 3: View Of Main Unit

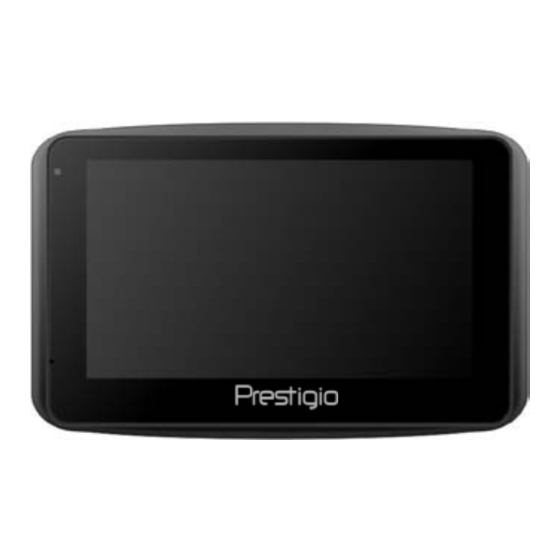

    View of Main Unit Front and Side View LCD Touch Screen Tap the screen with a finger to select commands or use the included stylus. Battery Status Indicator The indicator glows in bright amber color when battery is fully charged and in red color when charging.
  • Page 4: Device Connection

    Device Connection Inserting microSD Card  To insert a microSD card, place connector towards device and card label towards the front side of the device.  To remove a microSD card, gently press the edge of the card to release the safety lock and pull the card out of the slot.
  • Page 5: Connecting To Earphones

    Device Connection Connecting to Car Charger  Flip open the protective rubber cover towards the left side of the device.  Insert USB connector into the appropriate USB port.  Insert car charger connector into vehicle 12V accessory/cigarette socket to start charging.
  • Page 6: Cautions On Battery Charging

    Cautions on Battery Charging About Rechargeable Battery The device is equipped with a built-in rechargeable battery. Please fully charge the battery (for at least 8 hours) before initial use. The battery status indicator glows in red color when charging and turns bright amber color when charging is complete. Charging time is approximately 2 hours.
  • Page 7: Using Mounting

    Using Mounting Device Mounting Procedures The device can be securely mounted on vehicle dashboard or windshield with the mounting cradle included. Please follow procedures below to operate mounting cradle: Select an appropriate location on windshield or dashboard where the device and mounting cradle will not obstruct driver field of vision.
  • Page 8: Getting Started

    Getting Started 1. Press and hold Power Button to turn on device. 2. Shortly after the startup screen is shown, the main menu will be displayed. 3. Tap the corresponding buttons with touch pen included to navigate various functions. 4. Press and hold Power Button to turn off the device or to allow device to enter sleep mode.
  • Page 9: Program Interface

    Program interface Name Function Next maneuver on the way and distance up to it. Press this Icon Next maneuver to open route options menu. Press the compass loon to edit map rotation mode, map view Compass and day/night mode. Sound Press this button to turn on/off voice and sound effects.
  • Page 10 Program interface Name Function Return to You can see the green arrow at the top of the screen if the map current was moved relative to your position. Press it to return view to location your current location. If you zoom In/out with ~Autozoom~ function activated, this Autoscale function will deactivate for a period according to settings.
  • Page 11 Program interface Name Function Waypoints are manually created by the user and display with Waypoint red flags on a map. “SaveWP” Saves current mark on map as a waypoint. EN - 6...
  • Page 12 Program interface Name Function “Cursor” Shows the menu of mark on map Touch the screen with a stylus to set a mark. You can save this Mark on map mark as a way point add it to the route or see object’s characteristics the mark was set on.
  • Page 13 Autorouting Autorouting In order to create a route automatically, from the current position to the destination point, tap with the stylus pen on the place on the map where the final point is, tap on the “Cursor” button and in the context menu choose "Go to" (Fig. 1). The calculated route will be shown on the map in blue color with highly visible dark border (Fig.
  • Page 14 Autorouting Autorouting using search Find an object of interest using “Search” and press it with stylus, then select “Go To” item from the menu. Apart from this item there are also “Insert” — add a point between two points of existing route, and “Add” — point is added to the end of a route and continues it.
  • Page 15: Additional Features

    The special window will appear on the screen when you receive the Navitel.SMSI2]. Select “Hide” to hide it or ”Accept” to see options. Note: For more detailed information regarding the functionality of Navitel 5.0 software, please, refer to the compete user manual on CD, or to www.prestigio.com. EN - 8...
  • Page 16: Music Mode

    Music Mode NOTE: Do NOT store audio files in the built-in flash storage for it may result in system malfunction. The flash storage is used to store system data and should not be tempered at anytime. Reminders regarding music playback function ...
  • Page 17: During Music Playback

    Music Mode  Tap on Music icon to enter music files list. During Music Playback  Tap on to return to previous/skip to next song.  Tap on to play.  Tap on to pause.  Tap on to stop playback. ...
  • Page 18: Video Mode

    Video Mode NOTE: Do NOT store video files in the built-in flash storage for it may result in system malfunction. The flash storage is used to store system data and should not be tempered at anytime. Reminders regarding video playback function ...
  • Page 19: During Video Playback

    Video Mode  Tap on the Video icon to enter video files list. During Video Playback  Tap on to return to video files list.  Tap on to play.  Tap on to stop playback.  Tap on to pause. ...
  • Page 20: Picture Mode

    Picture Mode NOTE: Do NOT store photo files in the built-in flash storage for it may result in system malfunction. The flash storage is used to store system data and should not be tempered at anytime. Reminders regarding photo viewing function ...
  • Page 21: During Photo Viewing

    Picture Mode During Photo Viewing  Tap on to zoom image in / out.  Tap on to rotate image.  Tap on to display in full-screen mode. Double tap the screen to resume.  Tap on to return to previous / skip to next image file.
  • Page 22: Document Mode

    Document Mode NOTE: Do NOT store document files in the built-in flash storage for it may result in system malfunction. The flash storage is used to store system data and should not be tempered at anytime. Reminders regarding Document Viewer function ...
  • Page 23: During Document Playback

    Document Mode During Document Playback  Tap on to return to document files list.  Tap on to return to previous / skip to next page. EN - 12...
  • Page 24 Settings  Tap on Settings icon to enter submenu. Language  Tap on on submenu to enter language setting.  Tap on to cycle through language options.  Tap on to cancel / confirm. Date/Time  Tap on to enter date / time setting.
  • Page 25 Settings Backlight  Tap on on submenu to enter backlight setting.  Tap on to adjust backlight brightness.  Tap on to cancel / confirm. Calibrator  Tap on Calibration icon on submenu to enter the screen calibrating menu.  Tap the center of “+”...
  • Page 26: Troubleshooting

    Troubleshooting Take steps described in the tables below to solve simple problems before contacting customer service. NOTE: Immediately turn off the device and disconnect the power adapter if the device is not working properly. Never try to repair the unit without authorized professionals for it may damage the unit.
  • Page 27 Troubleshooting POSSIBLE CAUSE POSSIBLE SOLUTION PROBLEM Use the adaptor to supply The built-in rechargeable power or charge the The unit can battery is weak. battery. receive signals now but can’t The unit may be obstructed then; signals Remove the veil. by veil, such as heat received are not insulation paper.
  • Page 28 PC Connection To establish connection with PC for data access and synchronization, please execute setup file included in the Driver/Documentation CD or download the file from Microsoft website to install: Microsoft Active Sync® software for operating system Microsoft XP or earlier versions (http://www.microsoft.com/windowsmobile/en-us/downloads/microsoft/activesync-dow nload.mspx)
  • Page 29: Technical Specifications

    Technical specifications MODEL RS4150 RS5150 Navitel 5.0 Navitel 5.0 Navigation Software Atlas V 500MHz Atlas V 500MHz GPS Chipset Channels Internal Internal Antenna Interface 4.3" 5” Display size Resolution 480*272 800*480 TFT Touch screen TFT Touch screen Display type 128MB, DDR2 128MB, DDR2 Flash Micro SD-Card slot, max...
  • Page 30 10% to 90% 10% to 90% humidity non-condensing non-condensing Disclaimer As the Prestigio products are constantly updated and improved, your device may have a slightly different appearance or modified functionality than presented in this Quick start Guide. EN - 15...

This manual is also suitable for:

Roadscout 5150
