  6. User manual

BuckMaster 384 User Manual

Insert
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

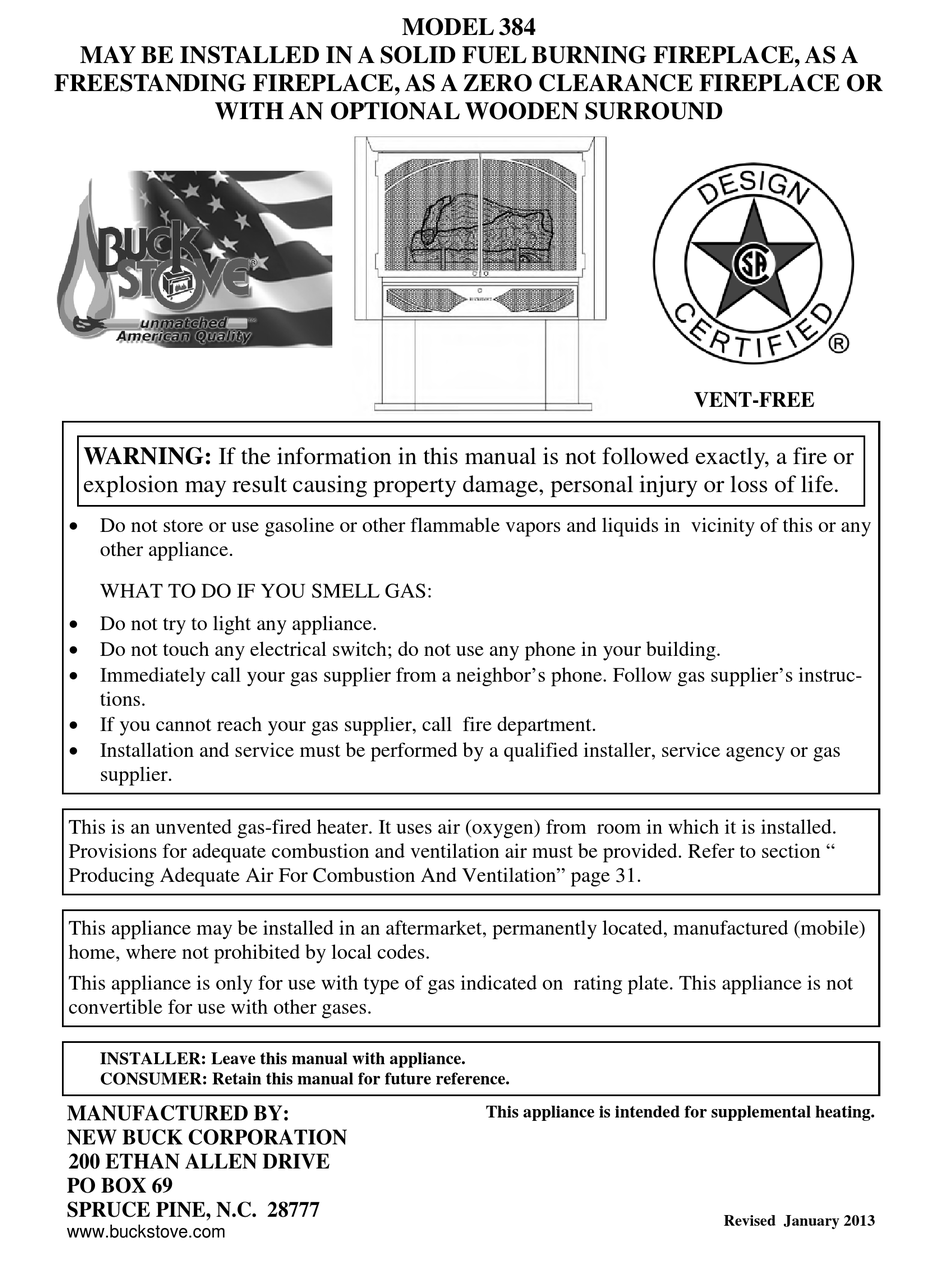

MAY BE INSTALLED IN A SOLID FUEL BURNING FIREPLACE, AS A
FREESTANDING FIREPLACE, AS A ZERO CLEARANCE FIREPLACE OR
WITH AN OPTIONAL WOODEN SURROUND
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
 Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor's phone. Follow gas supplier's instruc-
tions.
 If you cannot reach your gas supplier, call fire department.
 Installation and service must be performed by a qualified installer, service agency or gas
supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to section "
Producing Adequate Air For Combustion And Ventilation" page 31.
This appliance may be installed in an aftermarket, permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with type of gas indicated on rating plate. This appliance is not
convertible for use with other gases.
INSTALLER: Leave this manual with appliance.
CONSUMER: Retain this manual for future reference.
MANUFACTURED BY:
NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE
PO BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com
MODEL 384
This appliance is intended for supplemental heating.
VENT-FREE
Revised January 2013
