Summary of Contents for Teltonika GH1201

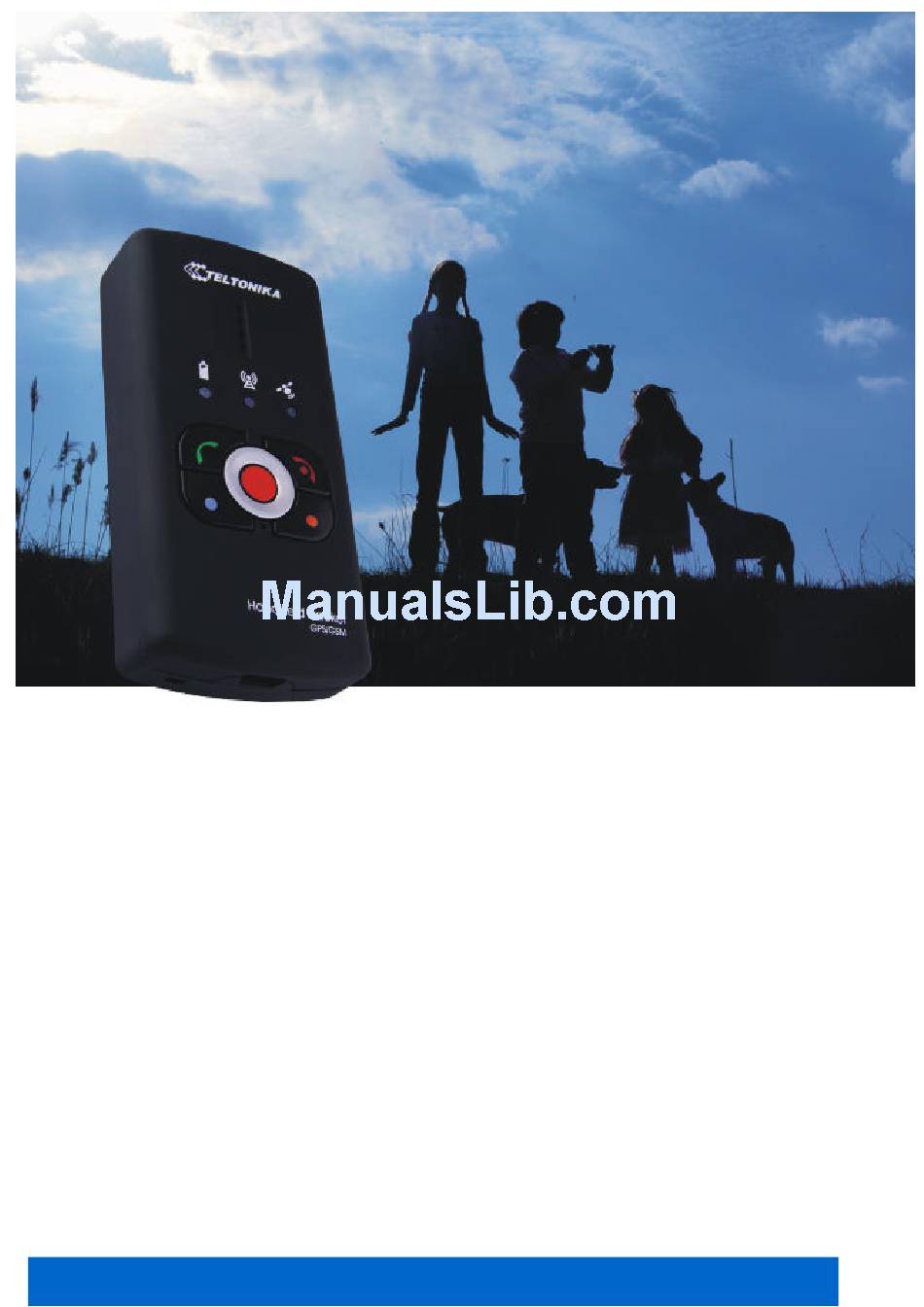

- Page 1 Handheld GPS/GSM Tracker GH1201 User‘s Manual v1.05...
-
Page 2: Table Of Contents
Track Assistant Configuration Tool ....................14 CONFIGURATION OF GH1201 USING A PC................14 7.1.1 PIN code ..........................19 Track Assistant Monitoring Tool ....................19 MONITORING OF GH1201 USING A PC ................19 7.2.1 General view of the Monitoring Tool ..................20 7.2.2 Transfer of the logged data to a PC..................22 7.2.3... -
Page 3: Preface
1. PREFACE INTRODUCTION GH1201 is a device with built-in functions characteristic of a mobile phone and an integrated GPS receiver. This device is intended for the surveillance and protection of people, cargo and objects. The GPS receiver may define the current location of the device and sends this data to a person in charge or the operation centre. -
Page 4: For Your Safety
Handheld GPS/GSM Tracker GH1201 User’s Manual v1.05 FOR YOUR SAFETY Please read these basic explanations. In disregarding them you may face danger or trespassing of the law. In case you wish to have more information, please read the concise user’s manual. - Page 5 Handheld GPS/GSM Tracker GH1201 User’s Manual v1.05 PREPARE YOUR COMPUTER Personal or portable computers to be connected to the device must comply with the requirements of LST EN 60950-1.2003. CONNECT THE DEVICE TO THE COMPUTER Computers to be connected to the device may be stationary or portable with an USB connection.
- Page 6 Handheld GPS/GSM Tracker GH1201 User’s Manual v1.05 Household socket Protect. grounding Electricity Phase-wire distributing board 230 V Zero-wire Automatic switch off device USB connection GH1201 Charger 230- USB cable SAFELY DISCONNECT THE DEVICE The device may be disconnected from the PC or charger by pulling out the USB connection from the computer USB socket or by pulling out the mini USB connection from the device.
-
Page 7: General Information
User’s Manual v1.05 2. GENERAL INFORMATION Parts of the set The tracker GH1201 is supplied to the client packed in a cardboard box with all supplements which are necessary for operation. The set consists of: Handheld GPS/GSMTracker GH1201 Li-Ion or Li-Pol 750mAh battery 3.7V USB –... -
Page 8: Electronic Specifications
Handheld GPS/GSM Tracker GH1201 User’s Manual v1.05 Electronic specifications Parameter Norm Supply voltage (DC) 4.5V 5.5V Use of electric current 360mA 2500mA (10ms) Battery voltage (DC) 3.7V 4.2V Charger voltage (DC) 4.5V 5.5V Charger electric current 600mA 1000mA 3. GETTING STARTED Inserting SIM card and battery All SIM cards must be kept in a place out of small children’s reach. -
Page 9: Charging The Battery
Plug the charger in the alternating current wall socket. After the device is connected to the PC or alternating current wall socket, the battery charging will start. Charging is indicated by the indicator which is present on the GH1201 (see Indicators of the device). -
Page 10: Installing Software
Drivers and software necessary for installing are filed on a compact disk supplied with the device. If you have Internet access, please check if there is any updated software version (www.teltonika.eu). The software version available in the device may be indicated on the splash screen. -
Page 11: Keys And Parts
Connecting to a PC GH1201 can be connected to the stationary computer or portable computer by using an USB data cable. Connect one end of the cable to the device while using the mini USB connection and the other end to one of the computer USB connections. -
Page 12: Device Indicators
/ reloading Indicating a button push If GH1201 is in Standby Mode you can check if the device is powered with a short button push. The Standby check is possible with each button on the keyboard. If the device is powered, the Battery LED will lighten green. -
Page 13: Sound Indication
Handheld GPS/GSM Tracker GH1201 User’s Manual v1.05 heard. Now the button has to be released and device will execute the button function. The button function can be recalled directly: If you keep on pushing the button after the first sound signal a second signal (deeper signal, cancellation... -
Page 14: Track Assistant Programs
Click the button Connect Modem if you did connect a Teltonika GSM modem and wish to If you wish to start, click the button Next. configure your GH1201 remotely. Click the button... - Page 15 You can turn the list of authorised SMS number of the SIM card inserted into the numbers on or off within the box Device. If the GH1201 and additional information about the list is activated, the user must type in the owner of the device.
- Page 16 You can also activate a signal this funciton by clicking on the respective warning about incoming or outgoing SMS button on your GH1201. Please view the messages. section “Indicating a button push” in this Choose the ringing tone of the device and set manual as well.
- Page 17 Handheld GPS/GSM Tracker GH1201 User’s Manual v1.05 When you open the Alarm window, please You can fix the automatic data update interval choose the type of the warning signal (Alarm (GPS Logging Interval). If this function has Send Method) first. There are two options: by...
- Page 18 GH1201 device below boxes. Then, the device will ignore all via SMS. calling numbers which are not available in this list. GH1201 will acknowledge you with a SMS about its configuration changes. If the function Everybody has been activated, all subscribers’...
-
Page 19: Pin Code
MONITORING OF GH1201 USING A PC The Track Assistant Monitoring Tool is designed in such a way as to enable the user to manage GH1201 directly from his personal or portable computer which is connected to a GSM modem. With a GSM Modem (i.e. -
Page 20: General View Of The Monitoring Tool
Handheld GPS/GSM Tracker GH1201 User’s Manual v1.05 7.2.1 General view of the Monitoring Tool The tool consists of five information windows (3, 4, 5, 8, 9) and four configuration tools (1, 2, 6, 7). Sytem tools menu Image menu User list... - Page 21 Assistant Monitoring Tool. Options ... Ctrl+O – activate the window of the device configurations. 2 – IMAGE MENU GH1201 device is not connected Hide the additional tool menu GH1201 device is connected Show the additional tool menu GSM Modem is not connected...
-
Page 22: Transfer Of The Logged Data To A Pc
Here, you will be able to view the information on the current status of the device, whether it is a Modem or GH1201. If the device is connected to the system, you will be able to see the message Device Connected,... -
Page 23: Geofence Zones And Their Detection
Handheld GPS/GSM Tracker GH1201 User’s Manual v1.05 After having copied the data from the device, the program will inquire if you wish to save it (by clicking Yes, you can save all the data read under the name of your choice, by clicking No, you will recall the process of data saving). -
Page 24: Maps
3, 4 – select the zone (Select on Map), 5 – confirm the selection of the zone (Done), 6 – save the updates into GH1201 or send the settings via SMS message by clicking the button Write to Device if a GSM Modem is connected. -
Page 25: Maintenance And Repair
In case you have problems with the use of the product beyond your possibilities to solve it, please address them to the Technical Assistance Department by e-mail support@teltonika.lt. We would be pleased to be of any assistance to you.
