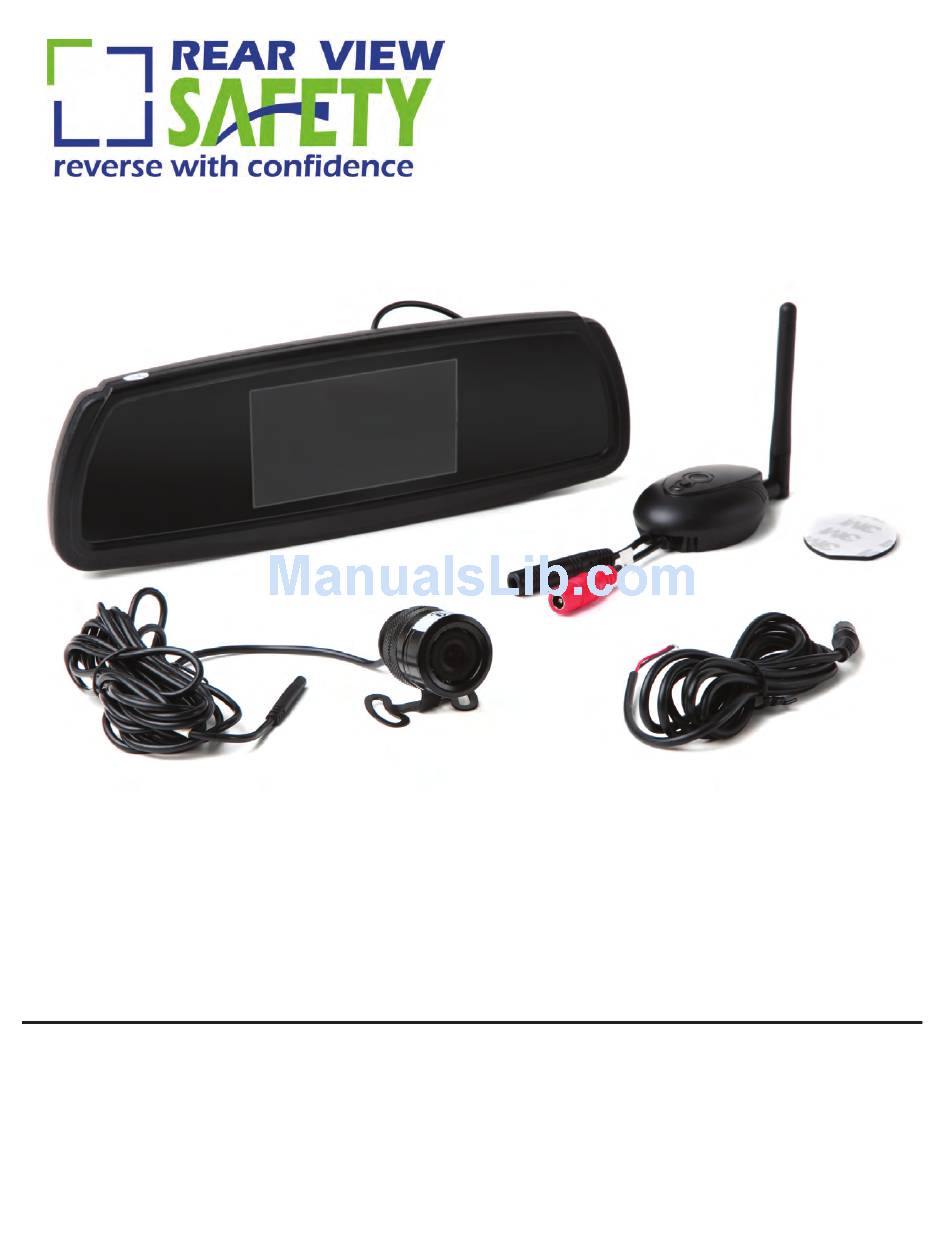

Page 1: Installation Instructions
™ Product Manual Installation Instructions Rear View Camera Systems Model # RVS-091407 © 2009-2013 Rear View Safety Inc. -
Page 2: Table Of Contents
Table of Contents Introduction ............4 Safety Information .........5 Package Contents ..........6 Settings/ Maintenance ........7 Installation Guide ..........8 Positioning .............11 Pairing and Connecting .........12 Operation Guide ..........12 LCD Parametres ..........13 Monitor Dimensions ........14 Product Info ............15 Warranty ............17... -
Page 3: Introduction
Introduction Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System. With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. -
Page 4: Safety Information
If you have any questions OF ANY NATURE, OR LOSSES about this product, contact: OR EXPENSES RESULTING FROM ANY DEFECTIVE Customer Service: PRODUCT OR THE USE OF Rear View Safety ANY PRODUCT. 1680 Atlantic Ave #301 Brooklyn, NY 11213 Tel: 800 764-1028... -
Page 5: Package Contents
Package Contents... -
Page 6: Settings/ Maintenance
Settings You can adjust the contrast and brightness of the Monitor according to your desired level. Note: Contrast and Brightness setting ONLY works while the backup image is on the screen. 1.To Adjust Contrast Press the arrow key up or down The system has 2 program functions: 1. - Page 7 Installation Diagram Diagram A Dc female Dc male BMW male BMW female Diagram B Diagram C DC12V (Black) (Red) DC12V (Black) (Red) Mounting the monitor: The monitor mounts on to the existing rear view mirror in your vehicle. The monitor uses a special pressurized mechanism (see diagram A) which clips onto the existing rear view mirror.
-
Page 8: Installation Guide
Installation Guide Locate the reverse taillights wiring behind your reverse light. You may need to remove the interior panel in order to locate. You only need to attach the signal booster power wire to ONE of the reverse lights, not both. If you cannot manually locate the tail light cables, please contact the vehicle manufacturer or reference a wiring diagram for your vehicle At your taillight, remove the light bulb socket from the reverse... - Page 9 Installation Guide Installation Plug the attached wire from the Camera into the Wireless Transmitter. Ensure that the wires are not tangled. While sitting in the driver’s seat of the car with the key in the ignition position. The monitor will automatically start when vehicle is put in reverse.
-
Page 10: Positioning
Positioning... -
Page 11: Pairing And Connecting
Pairing & Connecting Pairing is not necessary as the unit has already been paired. If you are not able to connect the camera, please try to pair the camera by the following steps: 1. Press “Pair” button on the Wireless Digital Transmitter. You will see the LED Blinking in RED/BLUE. -
Page 12: Lcd Parametres
LCD Parametres TFT LCD Digital Monitor Screen Size 4.3" Dot Resolution 1440(H)x234(V) Display Format 16:9 Display Brightness Viewing Angle 90° Min Video Input 1 channel Video Source 1Vp-p, 75Ω Power Supply DC 12V Power Consumption Operating Temperature 10°C ~ +65° C Video System Auto NTSC/PAL Overall Dimensions... -
Page 13: Monitor Dimensions
Monitor Dimensions Display Image Size:... -
Page 14: Product Info
Product Info Camera Picture Elements MT9V36 Gamma Correction r=0.45 to 1.0 Image Sensor 480TV lines NTSC:510(H)*492(V) Lens 2.1mm View Angle 130° Sync System Internal Synchronization Infra-red distance 30 Feet (9 Infrared IR) Usable Illuminatiom 0 Lux (IR On) Power Source DC 12V(+/- 10%) S/N Ratio More than 48dB... -
Page 15: Warranty
Rear View Safety Inc. system after partial failure or use with improper accessories. - Page 16 ™ Rear View Safety, Inc. 680 Atlantic Ave # 301 Brooklyn, N.Y. 11213 (800) 764-1028 www.rearviewsafety.com...
