Data Encryption
Signal Strength
Advanced
Displays the encryption type the driver is using.
Configure the encryption type on the Security tab.
Shows the strength of the signal.

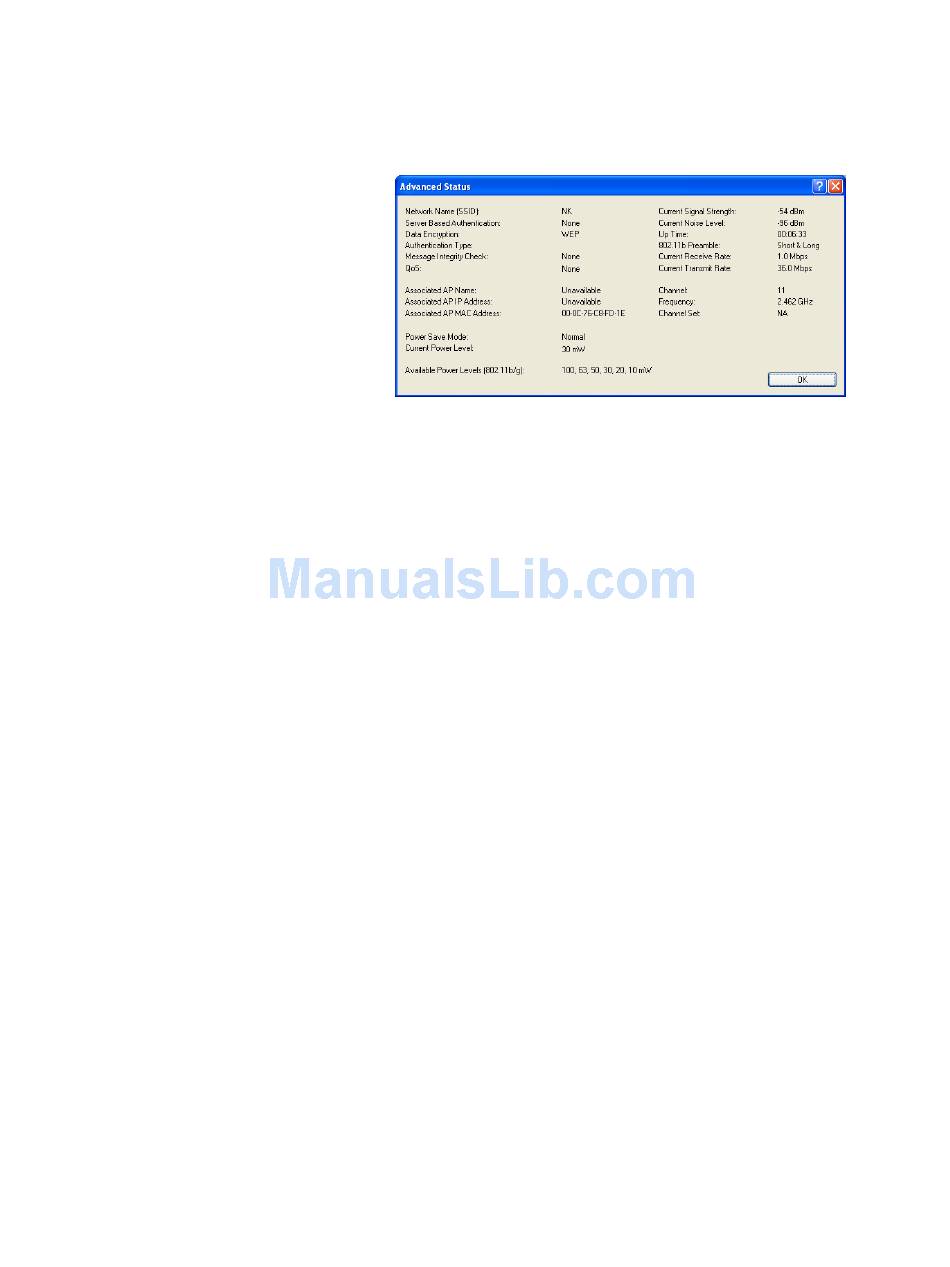

Press Advanced button to see the window below.
Network Name (SSID): Displays the wireless network
name. Configure the network name on the General tab.
Server Based Authentication: Shows whether the
server that based on the authentication is used.
Data Encryption: Displays the encryption type the
driver is using. Configure the encryption type on the
Security tab.
Authentication Type: Displays the authentication
mode. Configure the authentication mode on the
General tab.
Message Integrity Check: Shows whether MIC is
enabled. MIC prevents bit-flip attacks on encrypted
packets.
Associated AP Name: Displays the name of the access
point that the Wireless Adapter is associated to.
Associated AP IP Address: Shows the IP address of
the access point that the Wireless Adapter is associated
to.
Associated AP MAC Address: Displays the MAC
address of the access point that the Wireless Adapter is
associated to.
Power Save Mode: Shows the power save mode. Power
management is disabled in ad hoc mode. Configure the
power save mode on the Advanced tab.
Current Power Level: Displays the transmit power
level rate in mW. Configure the transmit power level on
the Advanced tab.
Available Power Levels: Shows the 802.11a and/or
802.11b/g available power levels.
Current Signal Strength: Shows the current signal
