This section will introduce all configurations using Vigor600 Super G Wireless
Adapter Utility (the Utility) in detail, including common operations, function
explanation in each tab and status icons meaning. Also it will introduce Windows XP
Zero Configuration Service (WZCS) if you choose it as configuration tool.
1 &
1 &

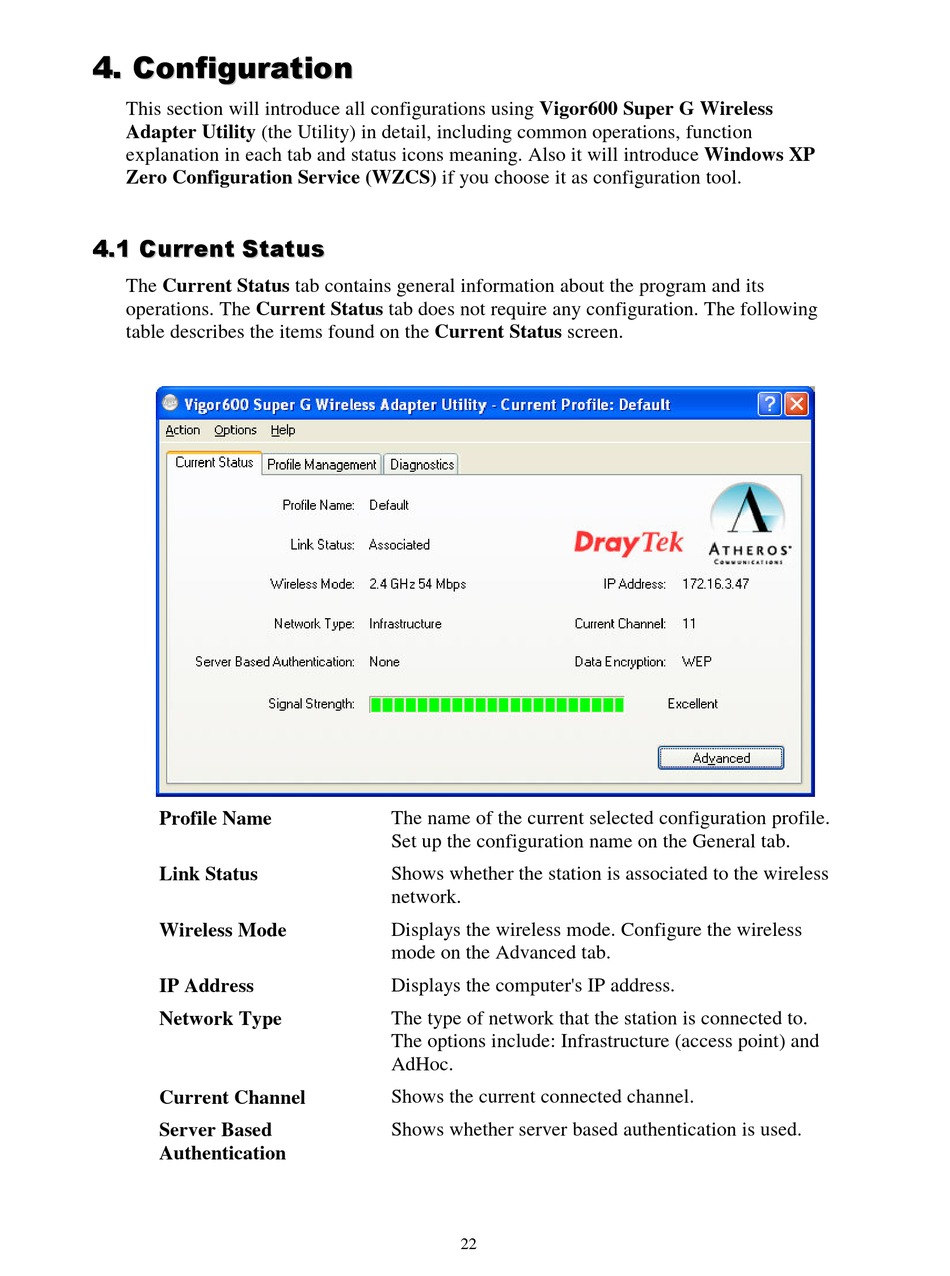

The Current Status tab contains general information about the program and its
operations. The Current Status tab does not require any configuration. The following
table describes the items found on the Current Status screen.
Profile Name
Link Status
Wireless Mode
IP Address
Network Type
Current Channel
Server Based
Authentication
The name of the current selected configuration profile.
Set up the configuration name on the General tab.
Shows whether the station is associated to the wireless
network.
Displays the wireless mode. Configure the wireless
mode on the Advanced tab.
Displays the computer's IP address.
The type of network that the station is connected to.
The options include: Infrastructure (access point) and
AdHoc.
Shows the current connected channel.
Shows whether server based authentication is used.
