- Page 2 Alternatively, fill in the registration card and mail it to the address found on the reverse side of the Owner card. Due to the continuous evolution of DrayTek ATA technology, all routers will be regularly Firmware & Tools upgraded. Please consult the DrayTek web site for more information on newest firmware, tools Updates and documents.http://www.draytek.com/...
-
Page 3: Table Of Contents
VigorTalk ATA Table of Contents 1 Introduction 1.1 Brief Overview 1.2 Highlights 1.3 Front Panel LEDs and Rear Panel Interfaces 1.4 Packet Contents 2 Installation and Configuration 2.1 Connect VigorTalk to Your Phone and Network 2.1.1 With General ADSL Router 2.1.2 With Enthernet-based Cable or DSL Modem... -
Page 4: Introduction
IP devices and delivers feature-rich carrier-class-clear Voice over IP service to small-businesses and residences. The VigorTalk ATA enables customers to extend their investment by leveraging the existing cable or DSL Internet connection for lower Internet phone rates and all of the other available special features from their service provider, such as Caller ID, Call Waiting etc. -

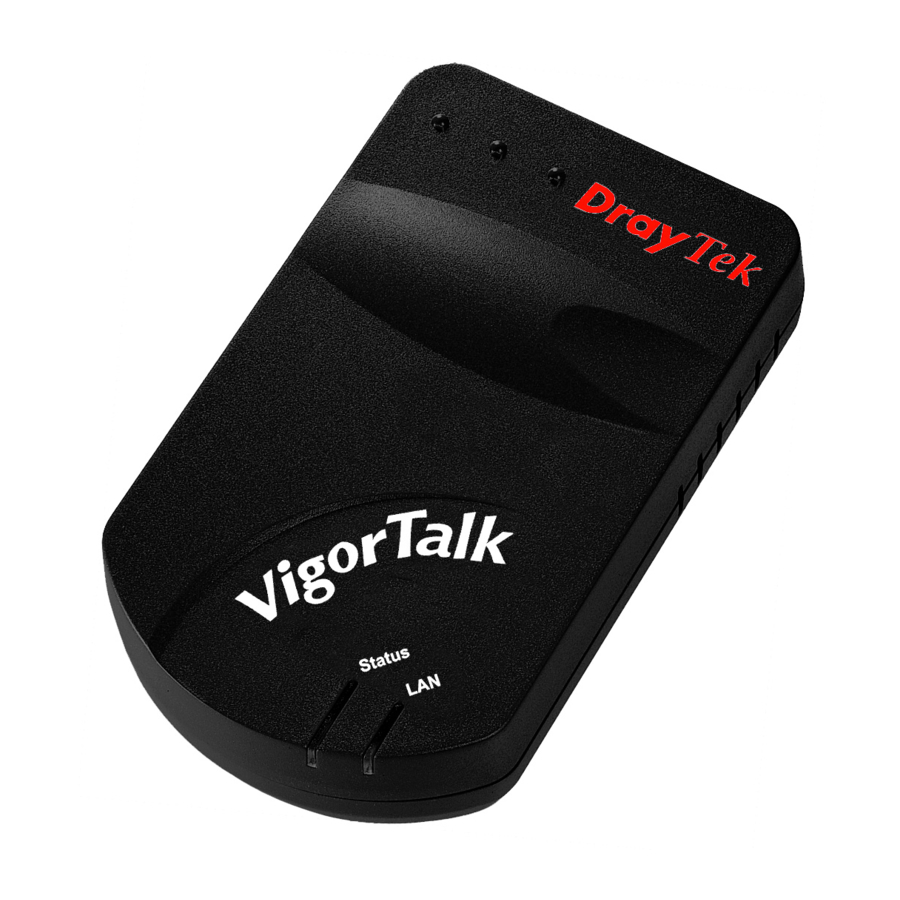

Page 5: Front Panel Leds And Rear Panel Interfaces
VigorTalk ATA 1.3 Front Panel LEDs and Rear Panel Interfaces Status Explanation Status Solid light when the phone is off hook. green Blinking when the unit is running properly. Solid light when the unit is under configuration by phone key pad. -
Page 6: Packet Contents
VigorTalk ATA 1.4 Packet Contents Quick Start Guide UK-type power adapter EU-type power adapter USA/Taiwan-type power dapter AU/NZ-type power adapter... -
Page 7: Installation And Configuration
IP Address Subnet and Gateway Address or DHCP availability. 4. SIP Proxy Address and Registration Information from SIP Registrar (e.g. DrayTEL) DrayTek provides two interfaces for configuration. You may need to use both for initial installation. DrayTek IVR(Interactive Voice Response)*... -
Page 8: Connect Vigortalk To Your Phone And Network
VigorTalk ATA 2.1 Connect VigorTalk to Your Phone and Network 2.1.1 With General ADSL Router If the router act as an DHCP server, to use the Web GUI, you only need to connect both the PC and VigorTalk to the router. They should be assigned IP addresses at the same subnet by the router. -
Page 9: With Enthernet-Based Cable Or Dsl Modem
VigorTalk ATA 2.1.2 With Enthernet-based Cable or DSL Modem To use Web GUI, you need to set the IP address of your VigorTalk and PC in the same subnet. (For example,192.168.1.1 for VigorTalk and 192.168.1.2 for the PC) 1 Use a standard RJ-45(Ethernet) cable to connect the LAN port of VigorTalk and the Ethernet adapter of the PC. -
Page 10: Configure Vigortalk Web Gui
VigorTalk ATA 2.2 VigorTalk Web GUI The VigorTalk has an embedded web GUI and comes with DHCP Enabled. By Following the procedure described in the previous section, you may have accessed the Web GUI and see the main page (as shown in section 2.2.1 below). In the following sections, the detail description of settings in Web GUI will be provided 2.2.1 System Information... - Page 11 VigorTalk ATA Info Shows the information of Model name, Firmware Version and Build Date/Time, and LAN MAC Address. Provision Shows the paths of Profile Rule and Upload Rule. Shows the type of LAN connection, IP Address of the LAN interface, IP Address of Default Gateway, Primary and Secondary DNS.
-
Page 12: Lan
VigorTalk ATA 2.2.2 LAN LAN Profile and Profile Name Set up profiles and profile names for a set of configuration. Once you set, you can directly set connection profile via IVR without getting into Web GUI. Time Server and Time Zone Select the server where you can obtain precise time from and select appropriate time zone for your location. - Page 13 VigorTalk ATA PPPoE Dial on Demand : The router will ONLY connect to your ISP on demand. By “on demand”, it means when any LAN user attempt to send data onto the Internet. When there is no data traffic, the router will close the connection to the ISP because there is no demand.
-
Page 14: Voice
VigorTalk ATA 2.2.3 Voice The port number used to send/receive SIP message for building a session. SIP Port The default value is 5060 and this must match with the peer Registrar when making VoIP calls Enter the domain name (or IP address) of your registered SIP Registrar Registrar server.Enter the domain name (or IP address) of your registered SIP Registrar... - Page 15 VigorTalk ATA Port Setting Use Registrar:With the Registrar domain entered above, check this box to let the VigorTalk use the SIP Registrar. This field contains a name or a number which easily let you identify the person Name who you want to call. It can also be the name for SIP display.
-
Page 16: Configure Your Vigortalk Via Phone Key Pad
VigorTalk on demand. Access the Interactive Voice Response Menu 1. Use a telephone connected to the Phone port of the VigorTalk ATA and pick up. 2. Press “***#” (The star key three times and pound key one time) 3. - Page 17 VigorTalk ATA Press ***# , “VigorTalk Configuration Menu….” STEP 1 STEP 2 STEP 3 STEP 4 Press 01# to 05# Press 1 to Save “Internet Connection Press * to Cancel profile 1…5” Press 10# Press 1 to Save “DHCP Enable”...
