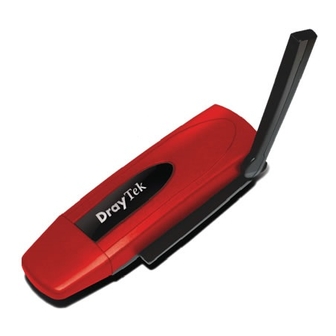

Draytek Vigor610 User Manual

Wireless lan adapter
Hide thumbs Also See for Vigor610:
Table of Contents

Advertisement

Quick Links

Download this manual
Vigor610

Wireless Adapter

User's Guide
Version: 1.1
Date: 2007/12/21
Copyright 2007 All rights reserved.
This publication contains information that is protected by copyright. No part may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright
holders. The scope of delivery and other details are subject to change without prior notice.
Microsoft is a registered trademark of Microsoft Corp.
Windows, Windows 95, 98, Me, NT, 2000, XP, Vista and Explorer are trademarks of Microsoft Corp.
Apple and Mac OS are registered trademarks of Apple Inc.
Other products may be trademarks or registered trademarks of their respective manufacturers.
Please visit www.draytek.com to get the newly updated manual at any time.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vigor610 and is the answer not in the manual?

Questions and answers

Related Manuals for Draytek Vigor610

Summary of Contents for Draytek Vigor610

  • Page 1: Wireless Adapter

    Windows, Windows 95, 98, Me, NT, 2000, XP, Vista and Explorer are trademarks of Microsoft Corp. Apple and Mac OS are registered trademarks of Apple Inc. Other products may be trademarks or registered trademarks of their respective manufacturers. Please visit www.draytek.com to get the newly updated manual at any time.
  • Page 2 This page is left blank. Vigor610 Series User’s Guide...

  • Page 3: Table Of Contents

    For Windows Vista........................17 Configuration ....................19 Wireless Monitor Utility........................ 19 Link Information........................... 20 AP List ............................22 Profile Setting..........................23 About ............................29 Miscellaneous ....................31 Windows Zero Configuration....................... 31 Burst Status ..........................35 B/G Protection..........................35 Vigor610 Series User’s Guide...
  • Page 4 This page is left blank. Vigor610 Series User’s Guide...

  • Page 5: Preface

    Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer to full infrastructure networks, also allow roaming over a broad area. Vigor610 Series User’s Guide...
  • Page 6 This page is left blank. Vigor610 Series User’s Guide...

  • Page 7: Installation Overview

    Before installing Vigor610, make sure that there is already an Access Point existed on the wireless network. It is needed in case of Infrastructure network mode. Here are some steps you will perform in establishing your wireless network connection: Install the USB Driver for Vigor610 by using the Install CD.
  • Page 8 In this page, you have to choose Yes to continue the installation. If you do not accept the agreement, you can click No to exit the wizard. And the driver installation will not be installed to your computer. Vigor610 Series User’s Guide...
  • Page 9 The default destination folder will be specified in this page. Also, you can click Browse... to choose another folder for storing the driver. Click Next. Now, the program is executing the installation by copying corresponding files to your computer. Vigor610 Series User’s Guide...
  • Page 10 When the file copying is completed, the following screen will appear. Please click Finish. Now the system will ask you to restart your computer to complete the whole installation. After choosing the proper setting, please click Finish. Vigor610 Series User’s Guide...
  • Page 11 After restarting your system, now insert Vigor610 (the wireless adapter) into your computer. The system will display next page. The system will find out the hardware (wireless LAN card) automatically. When it locates, a message will be shown on the system tray.

  • Page 12: For Windows Vista

    Follow the step below to install USB driver. Insert the CD into your computer. The following screen will appear. The welcome screen will appear as follows. Please click Next. Vigor610 Series User’s Guide...
  • Page 13 No to exit the wizard. And the driver installation will not be installed to your computer. The default destination folder will be specified in this page. Also, you can click Browse... to choose another folder for storing the driver. Click Next. Vigor610 Series User’s Guide...
  • Page 14 Now, the program is executing the installation by copying corresponding files to your computer. When the file copying is completed, the following screen will appear. Please click Finish. Vigor610 Series User’s Guide...

  • Page 15: Un-Installation Procedure

    Now insert Vigor610 (the wireless adapter) into your computer. The system will find out the hardware (wireless LAN card) automatically. When it locates, a message will be shown on the system tray. 10. Now, you can find the wireless LAN card icon in the system tray. Double click it to open the configuration window of Vigor610 wireless adapter.
  • Page 16 When the following screen appears, please click Next. 5. The system will start to remove the corresponding files. Then the system will ask you to restart your computer. After choosing the proper setting, please click Finish. Vigor610 Series User’s Guide...

  • Page 17: For Windows Vista

    1. Run Start >> Programs>> USB Wireless LAN Card Utility>>Uninstall 802.11g USB Wireless LAN Card Utility. 2. The InstallShield Wizard will appear. 3. When the following screen appears, please click Next. 4. The system will start to remove the corresponding files. Vigor610 Series User’s Guide...
  • Page 18 This page is left blank. Vigor610 Series User’s Guide...

  • Page 19: Configuration

    Note: If the wireless monitor icon is in red color, it means that the wireless status is under poor signal or the connection is failed. The Wireless Monitor window will appear as the following. Basically, the software will scan and display available wireless AP automatically. Vigor610 Series User’s Guide...

  • Page 20: Link Information

    This button will display general wireless information for the AP that you connected. Click Back to exit this dialog and return to the wireless monitor home page. The window of detailed link information by clicking More… is shown as follows: Vigor610 Series User’s Guide...
  • Page 21 It displays the subnet mask set in profile setting for the wireless card. Default Gateway It displays the gateway address set in profile setting for the wireless card. DNS Server It displays the DNS server set in profile setting for the wireless card. Vigor610 Series User’s Guide...

  • Page 22: Ap List

    It starts to build a connection between the station (client) and the AP. Refresh It can re-search available APs on wireless network whenever the user clicks it. By the way, the whole list will be refreshed in a certain time automatically. Vigor610 Series User’s Guide...

  • Page 23: Profile Setting

    Select one of the existed profile and click this button to edit it. Delete Select one of the existed profile and click this button to remove it. Connect Select one of the existed profile for applying with current connected Access Point. Vigor610 Series User’s Guide...
  • Page 24 Network Type It determines the normal operation in infrastructure or Ad Hoc mode. Peer to Peer: This is 802.11 peer-to-peer mode. All the communication will be done from station to station without using Vigor610 Series User’s Guide...
  • Page 25 Off and click Next. Open System For this mode, you have to choose the value for encryption. There are two selections for you to choose, 64 bits and 128 bits. Vigor610 Series User’s Guide...
  • Page 26 For Alphanumeric: Type 5 alphanumeric characters in this field. For Hexadecimal (0-9, A-F): Type 10 hexadecimal numbers in this field. For Passphrase: Type 1 to 32 alphanumeric characters in this field. Vigor610 Series User’s Guide...
  • Page 27 IP Setting If you choose Disable for IP Setting, simply click Complete for finishing the profile setting. If you choose Enable for IP Setting, you can enter fixed IP setting for the wireless card. Vigor610 Series User’s Guide...
  • Page 28 Type the IP address for this wireless card. Subnet Mask The default setting, 255.255.255.0 will be displayed automatically. Default Gateway Type the gateway of this wireless card. DNS Server Type the IP address for the DNS Server if necessary. Vigor610 Series User’s Guide...

  • Page 29: About

    It displays the version number of this utility. Driver Version It displays the driver version of this wireless card. Firmware Version It displays the firmware version of the wireless card. Address It displays the MAC address of the wireless card. Vigor610 Series User’s Guide...
  • Page 30 This page is left blank. Vigor610 Series User’s Guide...

  • Page 31: Miscellaneous

    Locate Wireless Zero Configuration. If you find that the status of WZC is not enabled, please click the wireless monitor utility icon and choose Enable Windows Zero Configuration (WZC) to activate it. Then follow the steps below to configure WZC. 1. Double click the wireless connection icon on the system tray. Vigor610 Series User’s Guide...
  • Page 32 2. Next, the following window will appear. 3. Click Change Advanced Settings and the following window will be shown. Press the Wireless Networks tab. Vigor610 Series User’s Guide...
  • Page 33 WPA-PSK as the Network Authentication and TKIP as the Data encryption. Then, type the encryption key characters. The type for Network Authentication, Data encryption and key must be the same values as configured in the AP that you want to connect. Vigor610 Series User’s Guide...
  • Page 34 5. Press the Authentication tab. Choose the EAP type which is the same as configured in the 6. After click OK, the wireless station can associate with the AP. 7. Open Wireless Connection window. Please choose “Tom” (as an example) and click Connect. Vigor610 Series User’s Guide...

  • Page 35: Burst Status

    Enable – Activate protection mode. Disable – Inactivate protection mode. When B/G Protection is disabled, the transmission rate for Vigor 2700G and receiving rate for Vigor610 will reach more than 30 mbps. Vigor610 Series User’s Guide...
