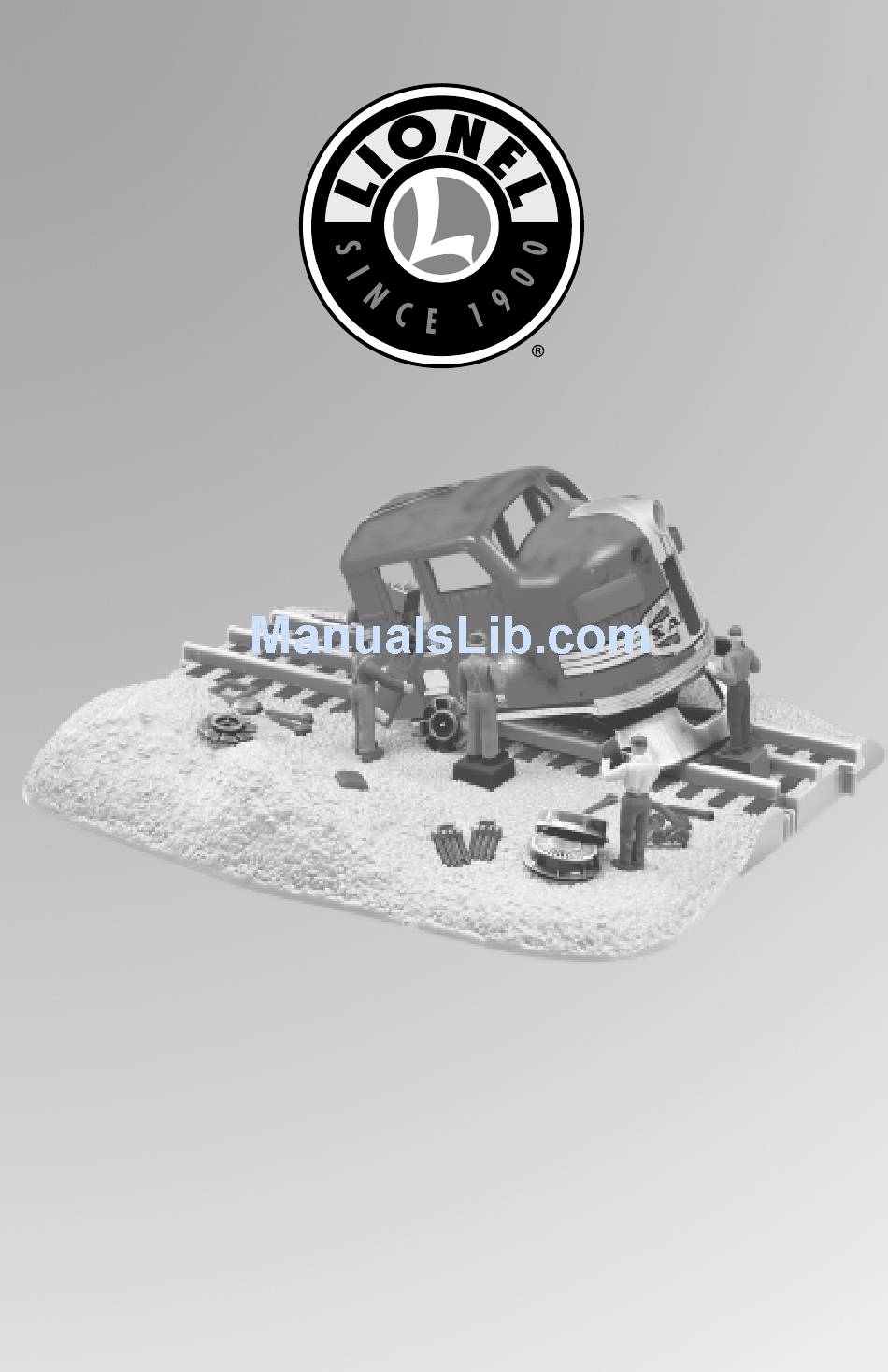

- Page 1 73-4144-250 1/05 Lionel Scrap Yard Owner’s Manual...
- Page 2 Lionel Scrap Yard accessory! Perfect for use on any O gauge layout, this accessory features four animated features and a blue LED to simulate the welder’s torch. You may choose to attach a section of FasTrack track to one end of this accessory. If...
-
Page 3: Powering The Accessory
FasTrack Accessory Power Wire (6-12053), or through a Lionel Lockon for O gauge track. The accessory is not powered through the rails that run across this accessory. To make the proper connections, all wires must be stripped back 1/8”... -
Page 4: Joining The Fastrack Track Sections
Joining the FasTrack track sections ou may choose to connect this accessory to a regular FasTrack track section or an O Gauge Transition Track (available separately, 6-12040). You must remove the rail tabs to attach the roadbed. Caution! Do not attempt to operate your locomotives over the accessory’s rails. 1. -
Page 5: Controlling The Accessory In The Command Control Environment
Controlling the accessory in the Command Control environment (continued) SC-2 wiring and operation hree wires are needed to connect the accessory to the SC-2 Switch and Accessory Controller and a separate accessory transformer. Refer to Figure 4. 1. Attach one wire to the transformer Common/Ground/U terminal and connect it to the accessory COMM (common) position on the SC-2. - Page 6 Controlling the accessory in the Command Control environment (continued) Accessory Switch Controller wiring and operation hree wires are needed to connect the accessory to the Accessory Switch Controller (ASC) and a separate accessory transformer. Refer to Figure 5. 1. Attach one wire to the transformer Power/A terminal and connect it to the COMM terminal on the ASC.
- Page 7 Servicing the LED our accessory features a blue LED to simulate the welder’s torch. This LED is expected to last for the life of the accessory and is not user serviceable. See your authorized Lionel Service Center if service ever becomes necessary.
-
Page 8: Warranty Information
Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
