71-4093-250
2/04
Lionel

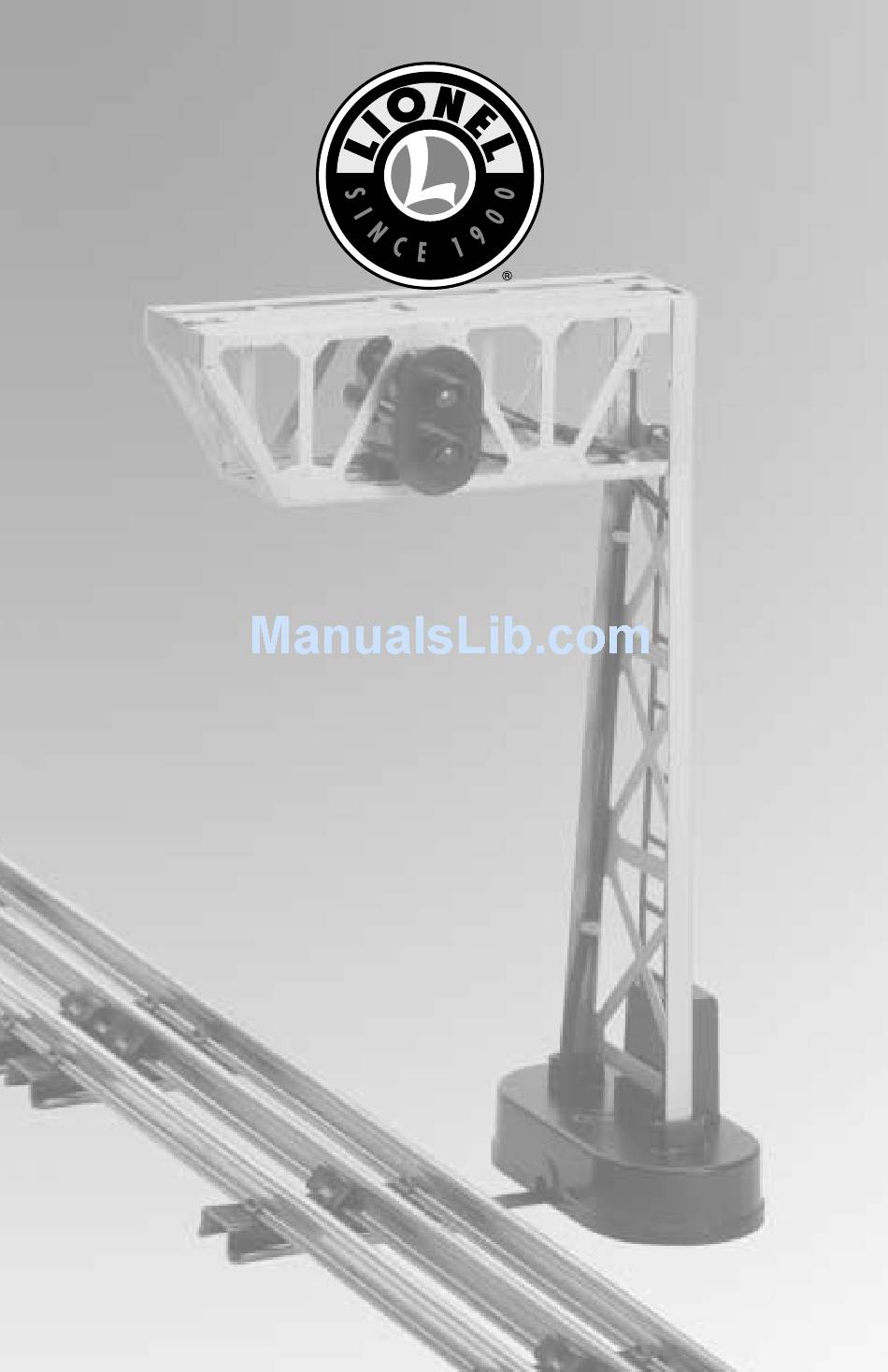

Single Signal Bridge
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Single Signal Bridge and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel Single Signal Bridge

Summary of Contents for Lionel Single Signal Bridge

  • Page 1 71-4093-250 2/04 Lionel Single Signal Bridge Owner’s Manual...

  • Page 2: Table Of Contents

    Connecting your Single Signal Bridge to a 153IR Controller Replacing the lamps on your Single Signal Bridge Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ®...

  • Page 3: Installing The 153C Contactor (Included)

    Installing the 153C Contactor he 153C Contactor is activated by the weight of a passing train. Place the Contactor under the track, as shown in Figure 1. One of the track ties should rest firmly upon the top of the pressure plate. If your layout is fastened to a board, loosen several sections on either side of the Contactor so that the track is able to bend under the weight of the train.

  • Page 4: Wiring Your Single Signal Bridge To A Power Source

    Wiring your Single Signal Bridge to a power source our Single Signal Bridge operates best at 10-14 volts (AC). Have an adult strip 1⁄4" of insulation from both ends of the four wires included with the Single Signal Bridge, if they have not already been stripped.

  • Page 5: Adjusting The Contactor

    Refer to Figure 1 for the location of the adjustment nut. 3. Back up the adjustment nut just enough to cause the lights to change back to green. Operating the Single Signal Bridge hen properly adjusted, the 153C Contactor will respond to light finger pressure on the track.

  • Page 6: Connecting Your Single Signal Bridge To A 153Ir Controller

    Connecting your Single Signal Bridge to a 153IR Controller he 153IR Controller (available separately, 6-14111) is an alternative to the 153C Contactor. While the 153C Contactor relies on the weight of the train to activate the accessory, the 153IR Controller is triggered by an infrared motion sensor. The 153IR also allows you to set the length of time that the accessory remains on.

  • Page 7: Replacing The Lamps On Your Single Signal Bridge

    Replacing the lamps on your Single Signal Bridge uring the course of normal operations, the lamps on this accessory may require replacement. Lamps are available from your authorized Lionel Service Center. Follow these steps and refer to Figure 4 to replace the lamps.

  • Page 8: Limited Warranty/Lionel Service

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
