Summary of Contents for Lionel Santa Flyer

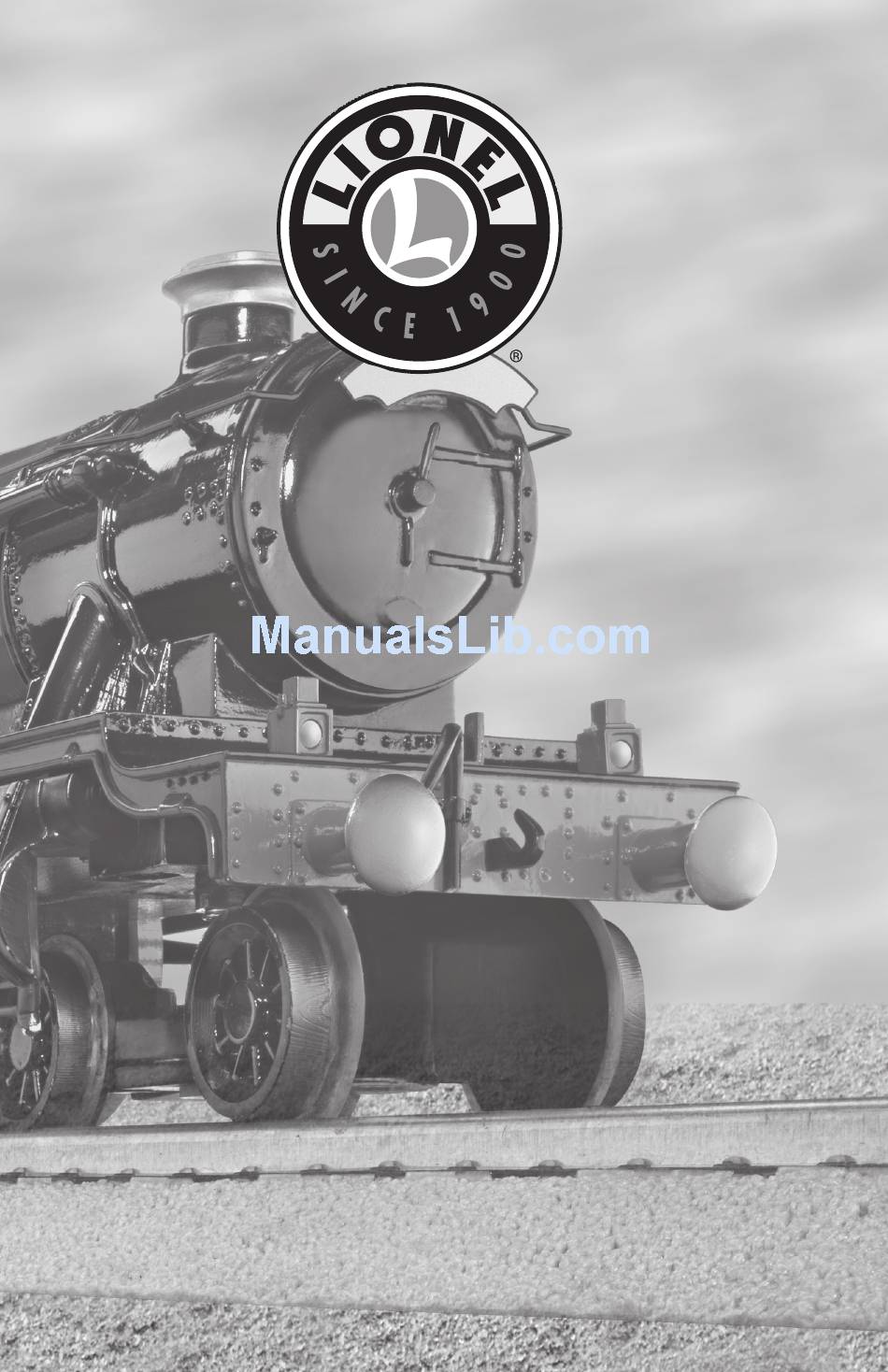

- Page 1 73-8671-250 04/09 Lionel Santa Flyer Owner’s Manual...
- Page 2 • Transformer controlled forward, neutral and reverse operation • Operating coupler on rear of tender • Puffing smoke unit • Operating headlight The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel , TrainMaster...
- Page 3 Table of Contents Transformer operations Running your locomotive with a Lionel transformer Your locomotive’s reverse unit operation Maintaining and servicing your locomotive Tire-Traction Adding fluid to your locomotives smoke generator Replacing your locomotive's headlamp Lubricating your locomotive Limited Warranty/Lionel Service...
- Page 4 Transformer operations Running your steam locomotive & tender with a LIONEL transformer With track power off, place your train set on the track. Refer to page 8 for information on coupling the cars. Connect the drawbar between the locomotive and tender.
- Page 5 Running your train Reverse unit procedure he electronic reverse unit inside your Lionel locomotive acts like the transmission in a car. When you apply power to the track, the locomotive moves in the direction specified by the reverse unit—or it sits in neutral, awaiting another power interruption. Power interruptions are the signal that tells the reverse unit to sequence to the next operational state.
- Page 6 The smoke generator requires the periodic addition of Lionel smoke fluid in order to function. Pierce the tube end with a pin, then add four to eight drops of fluid directly into the locomotive’s stack.
- Page 7 We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do) and avoid getting grease or oil on the locomotive’s wheels, contact roll- ers, or your track.
- Page 8 (requires proof of purchase from the Lionel Authorized Retailer* it was originally purchased). Any products on which warranty service is sought must be sent freight or postage prepaid (Lionel will refuse any package when postage is due). Transportation and shipping charges are not covered as part of this warranty.
