Summary of Contents for Lionel Scale SensorCar Steel Reefer

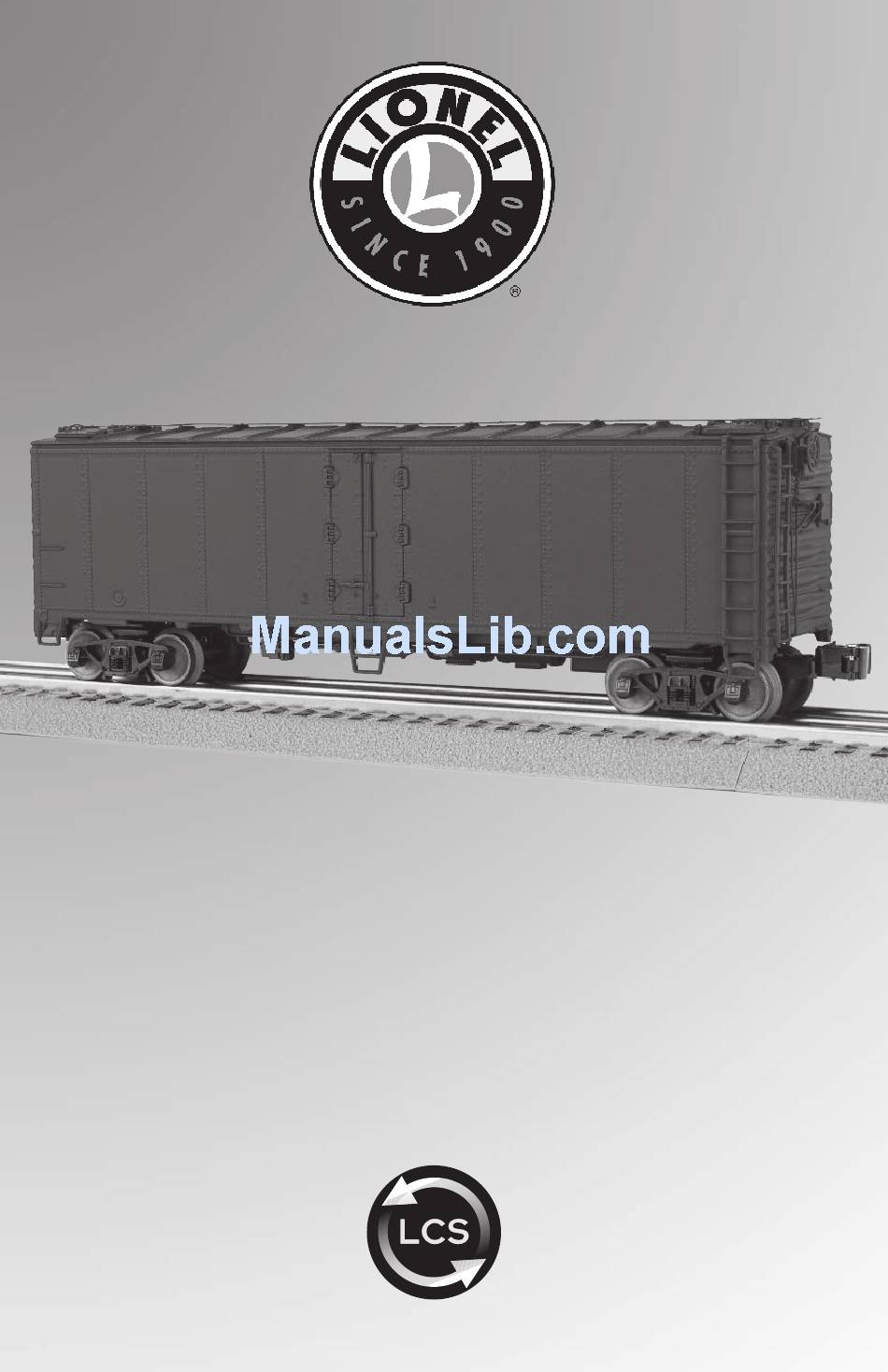

- Page 1 78-3519-250 8/16 Lionel Scale SensorCar ™ Steel Reefer Owner's Manual...
- Page 2 Programming Manually entering the road name and cab number Use of TxIR feature Lionel Limited Warranty Policy and Service The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved. ® ® Lionel ®...
-
Page 3: How It Works
• LCS SensorTrack (one or more) which adds a new level of interactivity with compatible Lionel Legacy and Vision locomotives as well as the SensorCar • LCS SER2 for computer control and use of existing Lionel serial devices like the TPC-300 and TPC-400 How it works! s you know, your Lionel Cab Remote sends commands to your Command Base. - Page 4 LCS SensorTrack™ is a 5” straight FasTrack section equipped with an infrared receiver. This receiver reads data beamed out of all Lionel Legacy and Vision locomotives, and the SensorCar that are equipped with an infrared transmitter. When one of these devices crosses a...
- Page 5 LCS component, please skip ahead to the next section titled “Installing additional LCS devices.” When installing a new LCS system, the process you will follow depends on which Lionel Command Base is to be connected to your LCS system. Following sections describe starting a new LCS installation with a Legacy Base.
- Page 6 6. Plug in the LCS wall-pack power supply. Both SensorTrack LEDs should illuminate briefly on power-up. Legacy command base must have software rev 1.60 or higher installed. Note! Note! One or more Lionel LCS SensorTracks are required for operation of the SensorCar.
- Page 7 Figure 5. A sample LCS system with SensorTrack and a LEGACY Base Once connected and powered-up, the yellow LED on the Legacy Base will blink once every second. With this setup, you can control Lionel locomotives and Layout Control System products using using any combination of LEGACY/CAB-2 and CAB-1L remotes.
- Page 8 The order of devices in the “chain” is up to you. The only exception is that an LCS WiFi must be the first device in the chain if no Lionel Command Base is present. To connect each additional LCS device: 1.
- Page 9 LCS system on your layout. If you’re using Lionel’s LCS App, the location of each passing Legacy locomotive will appear on your iPad screen, next to its corresponding SensorTrack icon.
- Page 10 Programming the SensorCar Programming o program the SensorCar: 1. Slide the PGM/RUN switch on the bottom of the SensorCar to the PGM position. It is required to program the SensorCar with the same ID# as the engine that will be using it.
- Page 11 Programming the SensorCar Manually entering the road name and cab number EGACY engines transmit engine data through the sensor (including road name and cab number). Since the SensorCar is intended for use with engines that do not have the IR sensor, you will need to manually enter the road name and cab number.
- Page 12 Lionel LLC or any Lionel Authorized Service Station MUST be accompanied by the original receipt for purchase (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
