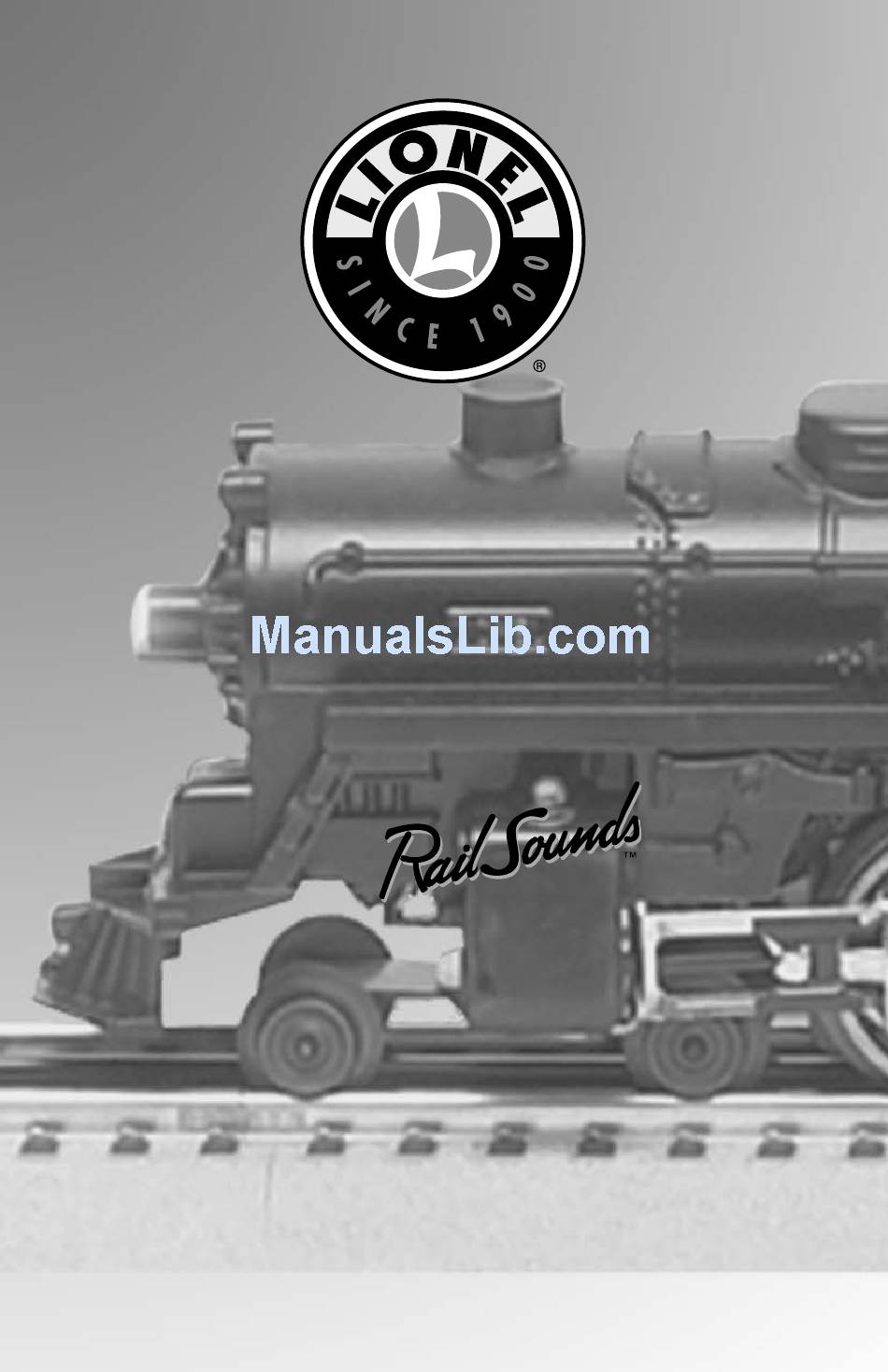

73-1969-250
10/03
New York Central Flyer
Ready-to-Run Train Set
Owner's Manual
featuring
CAUTI O N—ELECTRI C TOY
NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH
ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING
HANDLI N G AND USE TO REDUCE THE RI S K OF ELECTRI C SHOCK.
TRANSFORMER RATINGS—I N PUT:120 VAC; 60 HZ ONLY.
AC OUTPUT:18 V; 80 VA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the New York Central Flyer and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel New York Central Flyer

Summary of Contents for Lionel New York Central Flyer

  • Page 1 73-1969-250 10/03 New York Central Flyer Ready-to-Run Train Set Owner’s Manual featuring CAUTI O N—ELECTRI C TOY NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLI N G AND USE TO REDUCE THE RI S K OF ELECTRI C SHOCK.
  • Page 2 RailSounds sound system! This set features everything you need to get started—a mighty CW- 80 Transformer, a huge loop of FasTrack track, a string of detailed cars, and a powerful Lionel loco- motive. Plus, you get the authentic locomotive sounds of the RailSounds sound system.

  • Page 3: Table Of Contents

    Replacing your locomotive’s traction tire Replacing your Square Window Caboose lamp Troubleshooting Notes Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ® , TrainMaster ®...

  • Page 4: Track Layout Building Your Lionel Layout

    Track layout Building your Lionel layout our set comes with eight curved, three straight, and one terminal section of track. Figure 1 provides some examples of layouts that you can build with these track sections. By adding more FasTrack track sections, you can create an endless number of exciting track arrangements for more fun, action, and variety.

  • Page 5: Joining The Fastrack Track Sections

    Track layout Joining the FasTrack track sections asTrack track sections join together easily. With interlocking roadbed sections and large rail tabs, the track fits together securely so you always get good electrical contact. Take a look at Figure 2 to see how to join the track sections. 1.

  • Page 6: Controller Operations Operating Your Cw-80 Transformer Safely

    • Parents should periodically inspect this product for potential hazards and, if necessary, have them repaired by an authorized Lionel Service Center. In the event that such a condi- tion exists, the transformer should not be used until it has been properly repaired.

  • Page 7: Wiring Your Cw-80 Transformer

    4. If you need to power an accessory (available separately at your authorized Lionel dealer), connect the accessory to the ACCESSORY thumbscrew terminals. Use the accessory wire included with the CW-80 Transformer. 5. Plug the CW-80 Transformer into your wall outlet (120 volts).

  • Page 8: Wiring Your Cw-80 Transformer

    Controller operations Wiring your CW-80 Transformer (continued) FasTrack terminal section Spade-shaped connector TRACK ACCESSORY 120/60z 0~18VAC 0~18VAC Notch Figure 3. Controller connections...

  • Page 9: Advanced Connections: Powering Two Isolated Blocks With Two Transformers

    Controller operations Advanced connections: powering two isolated blocks with two transformers s you expand your layout, you may decide to create two isolated blocks of track. Trains in each block are controlled by separate transformers. Before you operate your trains on this type of layout, be sure that your transformers are in phase.

  • Page 10: Experiencing The Features Of The Cw-80 Transformer

    Controller operations Experiencing the features of the CW-80 Transformer Refer to Figure 5 on page 11 for the location of the Transformer features listed in this section. THROTTLE Push the throttle forward to increase track power. The markings on the throttle approxi- mate the percentage of full power.

  • Page 11: Experiencing The Features Of The Cw-80 Transformer

    CW-80 is on. Whistle Activates the whistle or horn sound Throttle effect in Lionel locomotives. Press Controls your locomotive’s speed. Throw the throttle for- WHISTLE to begin the sound; release ward to increase locomotive speed, backward to slow it the button to end it.

  • Page 12: Setting The Accessory Output

    — from crossing signals to coal and lumber loaders — available at your authorized Lionel dealer. When you are ready to operate your new accessory, the CW-80 Transformer allows you to choose how much power your accessory receives with programmable accessory output.

  • Page 13: Powering Your Layout With The Cw-80 Transformer

    Controller operations Powering your layout with the CW-80 Transformer our CW-80 Transformer provides a total output of five amps. The track outputs will deliver all of this power to the track when no accessories are connected to the Transformer. Keep in mind that connected accessories borrow some of this power.

  • Page 14: Locomotive Operation Running Your Train Set

    Figure 6. Drawbar connection Power up your locomotive with your transformer. Your locomotive is designed to operate on 7-15 volts alternating cur- rent. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable. Note! Do not power your locomotive with direct current (DC) transformers.

  • Page 15: Reverse Unit Procedure

    Locomotive operation Reverse unit procedure he electronic reverse unit inside your Lionel locomotive acts like the transmis- sion in a car. When you apply power to the track, the locomotive moves in the direction specified by the reverse unit—or it sits in neutral, awaiting another power interrup- tion.

  • Page 16: Railsounds Operations

    RailSounds operation Your Locomotive’s RailSounds sound system—the basics he Lionel RailSounds sound system is the most realistic model railroad sound system in the world. Your locomotive’s RailSounds sound system features digital samples for the ultimate in realism. Begin by installing a nine-volt alkaline battery (not included) in the tender. This ensures interruption-free operation of the RailSounds sound system.

  • Page 17: Experiencing The Range Of Your Locomotive's Railsounds Sound System

    RailSounds operation Experiencing the range of your locomotive’s RailSounds sound system ith the RailSounds sound system, you experience the sounds of real railroading like never before. Simply put, it’s the most sophisticated, authentic model railroad sound system in the world. •...

  • Page 18: Towercom Announcements

    RailSounds operations TowerCom announcements Example • User brings the engine to a stop and sounds owerCom announcements feature a “Stand- a short horn blast. by” or “Clear for departure” announcement • TowerCom message says, “Please stand by.” from the dispatcher and an acknowledgement •...

  • Page 19: Coupling

    Maintaining and servicing your set Coupling hen coupling your cars, at least one of the mating couplers must be open as shown at the left in Figure 10. Simply press down on the lock release to open the coupler, then push the cars toward each other until they lock together.

  • Page 20: Assembling Your Flatcar With Bulkheads And Stakes

    Maintaining and servicing your set Assembling your flatcar with bulkheads and stakes our flatcar with stakes will require some assembly before it’s ready to roll. Remove the twelve stakes supplied with this car and carefully press them into the corresponding slots as shown in Figure 11 below.

  • Page 21: Lubricating Your 4-4-2 Locomotive

    We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do) and avoid getting grease or oil on the locomotive’s wheels, contact rollers, or your track.

  • Page 22: Adding Smoke Fluid To Your 4-4-2 Locomotive's Smoke Generator

    15 for the location of the switch. The smoke generator requires the periodic addition of Lionel smoke fluid in order to func- tion. A small bottle of smoke fluid is included with this set. Press down and unscrew the cap, then add about four drops of fluid directly into the locomotive’s stack.

  • Page 23: Replacing Your 4-4-2 Locomotive's Headlamp

    2. Lift the smoke unit out far enough from the cab to allow lamp extraction. 3. Pull the lamp straight out and replace it with Lionel part no. 600-0161-300, available from your nearest authorized Lionel Service Center or from Lionel Service. Be careful not to twist the lamp or it may break.

  • Page 24: Replacing Your Locomotive's Traction Tire

    Refer to Figure 14. Remove the old traction tire from under the drive rod and slip on the replacement, Lionel part no. 600-0242-206. Replace the spacer, retighten the drive rod nut, and you’re ready to pull that long freight back to the yard.

  • Page 25: Replacing Your Square Window Caboose Lamp

    4. Pull the lamp straight up and out of the socket. Replace it with Lionel lamp no. 600-8352-311, available at your authorized Lionel Service Center or Lionel Service.

  • Page 26: Troubleshooting

    Maintaining and servicing your set Troubleshooting No lights or operation Be sure that the CW-80 Transformer is plugged in and the wires are connected. Train runs, but WHISTLE, BELL, and DIRECTION buttons do not work Check track connections. The track must be connected to the “A” and “U” terminals on the Transformer.

  • Page 27: Notes

    Notes...

  • Page 28: Limited Warranty/Lionel Service

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
