CONNECTOR DETAILS

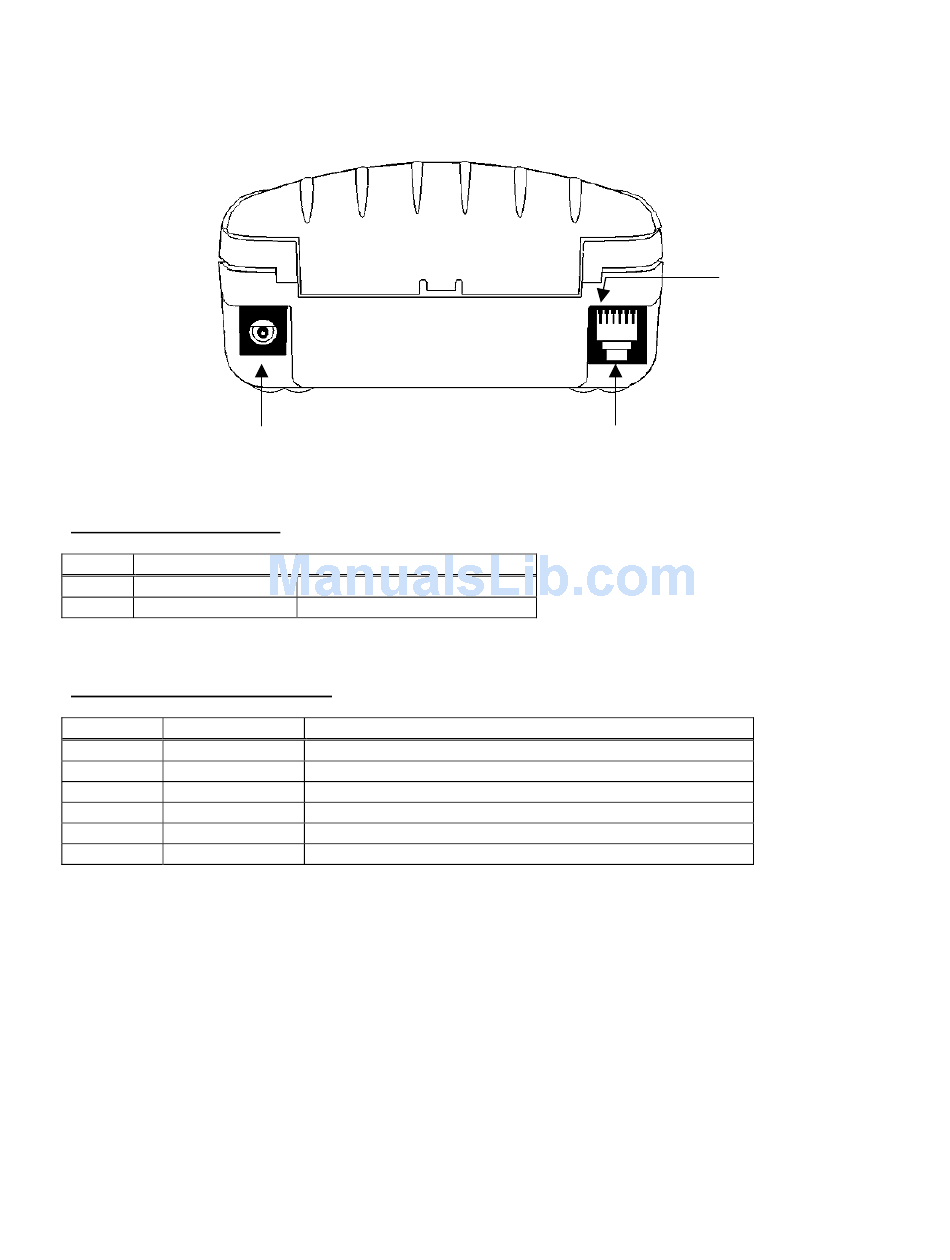

The printer has two user connectors shown below:
Charger Input

CONNECTOR PINOUTS

Charger Input Socket Detail
Pin Dimension (mm)
Inner Inside Ø 2.5
Outer Outside Ø 5.5
The maximum insertion length is 12 mm.
RJ12 Combined Data Socket Detail
Pin Signal Direction
1 To Printer
2 To Printer
3 To Printer
4 To Host
5 To Host
6 ---

BATTERY CHARGER DETAILS

The printer monitors charge current into the printer, but does not regulate it in anyway. In order to fully and safely
charge the batteries, use only Dascom Battery Charger Adapters.
Caution: This connection is for a current-regulated battery charger only. Do not connect a standard voltage
power supply. Serious damage may result from inappropriate connections.

COMBINED DATA/CHARGER ADAPTOR CABLE

An optional serial data cable suitable for connecting the printer to a standard PC is available. This cable features an
integrated charger connector in the housing of the DB-9 connector. For trickle charging, the charger may optionally
be connected directly into the printer's connector, or indirectly into the connector in the data cable, thus giving the
maximum system wiring flexibility.
The connections to a standard PC COM port are as follows:

CONNECTIONS AND EMC PRECAUTIONS

Function
Positive / Charger
Negative / 0V Common
Description
Optional Charger Input
Wake-up Input
RS-232 Rx data
RS-232 Tx data
RS-232 Busy
0V Common (RS-232 signal return and Charger return)
RJ12 Combined Data Socket
Input
Pin 1
