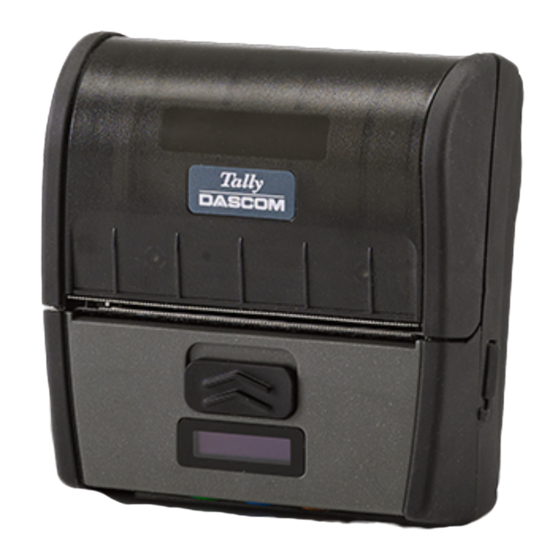

Dascom Tally DP-230L Quick Start Manual

DP-230L
This guide provides information on the daily use of the DP-230L printer.
For additional information, please refer to the DP-230L User Guide.
Please visit
Printer features
FRONT VIEW
Paper door
open button
Display
Control panel
Media
Slide paper door release button in direction of arrows
to open the paper compartment door. Pull small
leader of paper out and close paper door.
"Clicks" when properly closed.
The DP-230L is equipped to process receipt and label
media!
© 2019 Dascom
Quick Start Guide
www.dascom.com to download latest printer drivers and manuals.
USB port/Charge Port
Battery
To remove battery
for replacement,
depress battery
door clip and pull
out battery.
Battery levels on
OLED display:
Empty <5%
Level 1 15-40%
Level 2 40-70%
Level 3 70-100%
Battery Disposal
Please dispose the batteries separately and free of cost at your sales
agency or the designated local collecting points. Therefore please
consider the national recycling standards! Disassembly and removal of
the batteries are described in the User Guide.
Drivers, User Manuals and SW Utilities available @
REAR VIEW
Battery
www.dascom.com
