Summary of Contents for Telematrix 3002MWD

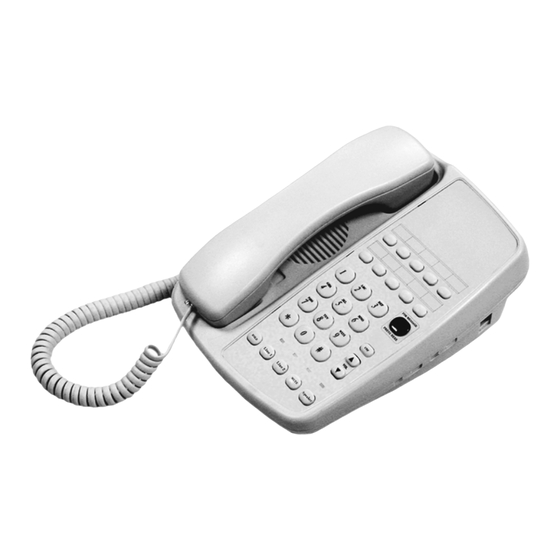

- Page 1 ® INSTALLATION AND USER GUIDE 3002MWD TWO LINE DELUXE FEATURE SPEAKERPHONE 5 or 10 MEMORY TeleMatrix Copyright 2005 ©...
- Page 2 COMPLIANCE AND SAFETY As specified by FCC regulation, we are required to inform you of specific governmental and compliance regulatory requirements, safety notices, safety instructions and other informative information. TeleMa- trix, Inc. provides this information in a separate manual. We pack the separate Compliance and Safety Manual within each outer box or product box when shipped.
-
Page 3: Table Of Contents
CONTENTS Features ...........………..……………………………………......Controls ................…………………………………………… Switch Settings ........….......……………………………………………... Installation ..............……………………………………………... Wall Mounting ........….......……………………………………………..Programming Speed Dial Memory .........……………………………………………..… Operation ................…………………………………………….. Care and Maintenance ..........……………………………………………..Service …………………………………………………..……………………………………….………………………..… Warranty ...............…………………………………………….. -
Page 4: Features
FEATURES • Two Line • Convenient Data Port • 5 or 10 Single Button Memory Locations With Secure Programming • Tone Dialing • Speaker Key • Conference Key • Mute Key • Handset Volume Control • TouchLite™ Message Waiting Retrieval •... -
Page 5: Controls
CONTROLS... -
Page 6: Definition Of Controls
DEFINITION OF CONTROLS Handset ..…………..…………..… Hearing aid compatible, low profile styling. Ringer Controls ………………….……………. Adjusts the volume of the ringers to HI/LOW setting. Handset Jack ……………………………….… Modular receptacle where handset cord plugs into the base unit. Dial Pad ………………………………….…….. Large keys used for dialing. Conference Key ………………………………... -
Page 7: Switch Settings
Note: the phone is factory preset to the “Neon” setting. Line Voltage Selectors (Optional Feature) The 3002MWD is designed to operate behind PBX telephone systems rated be- tween 24 volts and 48 volts. If you have this feature, there are line voltage selector switches that must be set according to the PBX system rating that the phone will be installed. -
Page 8: Installation
INSTALLATION Parts Check List The following parts are included in this package: 1. 15’ modular telephone line cord. 2. Modular coiled handset cord. 3. Base unit 4. Handset Caution • Never install telephone wiring during a lightning storm. • Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. •... - Page 9 INSTALLATION Connecting The Handset Cord A 10’ modular coil handset cord is provided. To install, simply plug one end of the handset cord into the modular jack on the handset. The remaining end of the handset cord plugs into the jack labeled “Handset” located on the left side of the base unit.
-
Page 10: Wall Mounting
Pull down firmly until you feel it snap into place. The unit is now wall mounted. (figure 8) CONTACT TELEMATRIX FOR THE OPTIONAL WALL MOUNTING WEDGE. CALL PRIORITY CARE AT 1-800-462-9446. -
Page 11: Programming Speed Dial Memory
PROGRAMMING SPEED DIAL The “STORE”, “FLASH”, and “PAUSE” func- Figure 9 tion keys are located underneath the clear plas- tic overlay and paper faceplate. To access, lift off the overlay and paper faceplate using a pa- perclip or sharp pointer. (figure 9 and 10) Figure 10 conf... - Page 12 Storing “PAUSE” Into Memory FLASH Hook Function Up to 10 phone numbers can be stored into If you are using your 3002MWD anywhere The Flash function is used to access PBX memory. Each location can store up to 32 that...
-
Page 13: Feature Description
PROGRAMMING THE TouchLite Feature Description Programming TouchLite TouchLite is a new innovation that integrated the visual message waiting lamp and a speed 1. Select line 1 dial key into one. It allows easy access for 2. Lift the handset. guests to retrieve messages. 3. -
Page 14: Operation
OPERATION Handset Volume Control The handset volume control increases the volume of the handset. When the handset is off hook, press the volume control key to increase the handset volume. The volume control is a HI/LOW operation and is hearing aid compatible. Ringer Volume Control The ringer volume control increases the volume of the ringer. -
Page 15: Line Status Indicators
OPERATION Line Status Indicators The Marquis Telephone is equipped with LED indicators to show the current status of the telephone lines. They are: • Ringing Line—Ringing LED turns red on incoming ringing signal. • Line IN USE—Line status LED lights green when line is IN USE. •... - Page 16 OPERATION Using the Conference Key The “Conference” key is used to establish a 3- way conversation. The conference feature is activated by a “soft” key that will automatically reset when hanging up. A 3-way “Conference” call can be established while using either the handset or Speakerphone.
- Page 17 OPERATION Placing A Call Using The Speakerphone The 3002MWD is equipped with a high quality speaker- phone feature to allow for hands free operation. To use, simply press the “Speaker On/Off” key when placing or an- swering a call. The telephone line will activate automati- cally.
- Page 18 OPERATION Using The Hold Feature The “Hold” key is used to place a caller on hold. To use, sim- ply press the ”Hold” key. The key will illuminate indicating that the line is on hold. When placing a caller on hold, the handset can be returned to its on hook position.
-
Page 19: Care And Maintenance
CARE AND MAINTENANCE Keep the telephone dry. If it gets wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Use and store the telephone only in normal temperature environments. Temperature extremes can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts. -
Page 20: Service
Fax: 719-638-8815 www.telematrixusa.com Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. In the unlikely event that a factory repair be necessary: 1. Include a brief description of the trouble that you are experiencing. -
Page 21: Warranty
STATEMENT OF LIMITED WARRANTY TeleMatrix, Inc. LLC (TMX) warrants to its [original end customer] [purchaser] that Spectrum, Spectrum Plus and Marquis branded products manufactured by TMX are free from defects in materials and workmanship for five (5) years after the date of purchase, and Regency branded products manufactured by TMX are free from defects in materials and workmanship for three (3) years, other than the following products for which the warranty period shall be one (1) year: hand- set batteries, either NiCd or NiMH, used in TMX cordless products. - Page 22 252-0277-3(3002MWD) Rev May 2, 2005...
