- Page 1 INSTALLATION ® AND USER GUIDE 3002MWD5 2 LINE - 5 MEMORY...
-
Page 2: Table Of Contents
CONTENTS Features ...........………..……………………………………........1 Controls ................……………………………………………….. 2 Switch Settings ........….......……………………………………………..Installation ..............……………………………………………..Wall Mounting ........….......……………………………………………..7 Programming Speed Dial Memory .........……………………………………………..Operation ................……………………………………………..11 Care and Maintenance ..........……………………………………………..15 Service …………………………………………………..……………………………………….………… 16 Warranty ...............……………………………………………..17... -
Page 3: Features

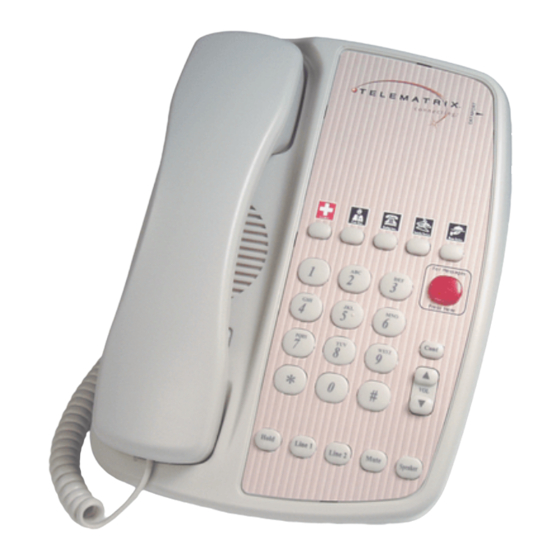

FEATURES Two Line Convenient Data Port 5 Single Button Memory Locations With Secure Programming Tone Dialing Speaker Key Conference Key Mute Key Handset Volume Control TouchLite™ Message Waiting Retrieval Store Key (submerged)) Storable Flash Function (600 mS) (submerged) Storable Pause Function (3.6 seconds) (submerged) HI/LOW Ringer Volume Control Switch Desk or Wall Mountable Fully Modular, Easy To Install... -
Page 4: Controls
DEFINITION OF CONTROLS Handset ..…………..…………..…... Hearing aid compatible, low profile styling. Ringer Controls ………………….……………. Adjusts the volume of the ringers to HI/LOW setting. Handset Jack ……………………………….… Modular receptacle where handset cord plugs into t he base unit. Dial Pad ………………………………….…….. Large keys used for dialing. Conference Key ………………………………... - Page 5 CONTROLS (16) (15) (12) NEON OFF LED STORE FLASH (13) (10) FOR MESSAGES (11) PRESS HERE REDIAL/PAUSE (14) CONF. IN USE RINGER/HOLD HOLD LINE1 LINE2 MUTE SPEAKER FRONT VIEW...
-
Page 6: Switch Settings
Figure 5 Line Voltage Selectors The 3002MWD5 is designed to operate behind PBX telephone systems rated between 24 volts and 48 volts. There are line voltage selector switches that must be set according to the PBX system rating that the phone will be in- stalled. -
Page 7: Installation
INSTALLATION Parts Check List The following parts are included in this package: 1. 15’ modular telephone line cord. 2. Modular coiled handset cord. 3. Base unit 4. Handset Caution Never install telephone wiring during a lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface. - Page 8 INSTALLATION Figure 3 Connecting The Handset Cord A 10’ modular coil handset cord is provided. To install, simply plug one end of the handset cord into the modular jack on the handset. The remaining end of the handset cord plugs into the jack labeled “Handset”...
-
Page 9: Wall Mounting
ROTATE 180 . Wall Mounting Your 3002MWD5 SNAP INTO PLACE. The 3002MWD5 was designed to be conveniently wall mounted. There is no additional hardware required. Follow these easy steps: 1. The handset retaining clip must be engaged to secure the handset when hanging up. -
Page 10: Programming Speed Dial Memory
PROGRAMMING SPEED DIAL The “STORE”, “FLASH”, and “PAUSE” function Figure 9 keys are located underneath the clear plastic overlay and paper faceplate. To access, lift off the overlay and paper faceplate using a paperclip or sharp pointer. (figure 9 and 10) NEON OFF LED STORE FLASH... - Page 11 C. Storing “PAUSE” Into Memory D. FLASH Hook Function Up to 5 phone numbers can be stored into If you are using your 3002MWD5 anywhere The Flash function is used to access PBX fea- memory. Each location can store up to 15...
- Page 12 PROGRAMMING THE TouchLite FEATURE DESCRIPTION PROGRAMMING TouchLite™ ™ 1. Select line 1 TouchLite is a new innovation that integrated the visual message waiting lamp and a speed 2. Lift the handset. dial key into one. It allows easy access for 3.
-
Page 13: Operation
OPERATION HANDSET VOLUME CONTROL The handset volume control increases the volume of the handset. When the handset is off hook, press the volume control key to increase the headset volume. The volume control is a HI/LOW operation and is hearing aid compatible. RINGER VOLUME CONTROL The ringer volume control increases the volume of the ringer. - Page 14 OPERATION LINE STATUS INDICATORS The Marquis Telephone is equipped with LED indicators to show the current status of the telephone lines. They are: Ringing Line—Ringing LED turns red on incoming ringing signal. Line IN USE—Line status LED lights green when line is IN USE. HOLD—Line status LED turns from green to red when placing a call on hold.
- Page 15 OPERATION USING THE CONFERENCE KEY The “Conference” key is used to establish a 3- way conversation. The FOR MESSAGES conference feature is activated by a “soft” key that will automatically reset when hanging up. PRESS HERE A 3-way “Conference” call can be established while using either the hand- set or Speakerphone.
- Page 16 OPERATION Placing A Call Using The Speakerphone The 3002MWD5 is equipped with a high quality speaker- IN USE RINGER/HOLD phone feature to allow for hands free operation. To use, simply press the “Speaker ” key when placing or answering a call. The telephone line will activate automatically. The...
-
Page 17: Care And Maintenance
CARE AND MAINTENANCE Keep the telephone dry. If it gets wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Use and store the telephone only in normal temperature environments. Temperature extremes can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts. -
Page 18: Service
2. Include a proof of purchase for a repair under warranty. 3. Send the telephone prepaid by UPS or Parcel Post insured to: TeleMatrix, Inc. Customer Care Center 5025 Galley Road Colorado Springs, CO. 80915 TeleMatrix will pay to return the repaired telephone to you. Allow 2-3 weeks for delivery. -
Page 19: Warranty
3. This warranty is good only in the United States Of America and Canada. 4. The cost and risk of loss or damage for sending the phone to TeleMatrix will be borne by you TeleMatrix will pay to return the repaired phone to you.
