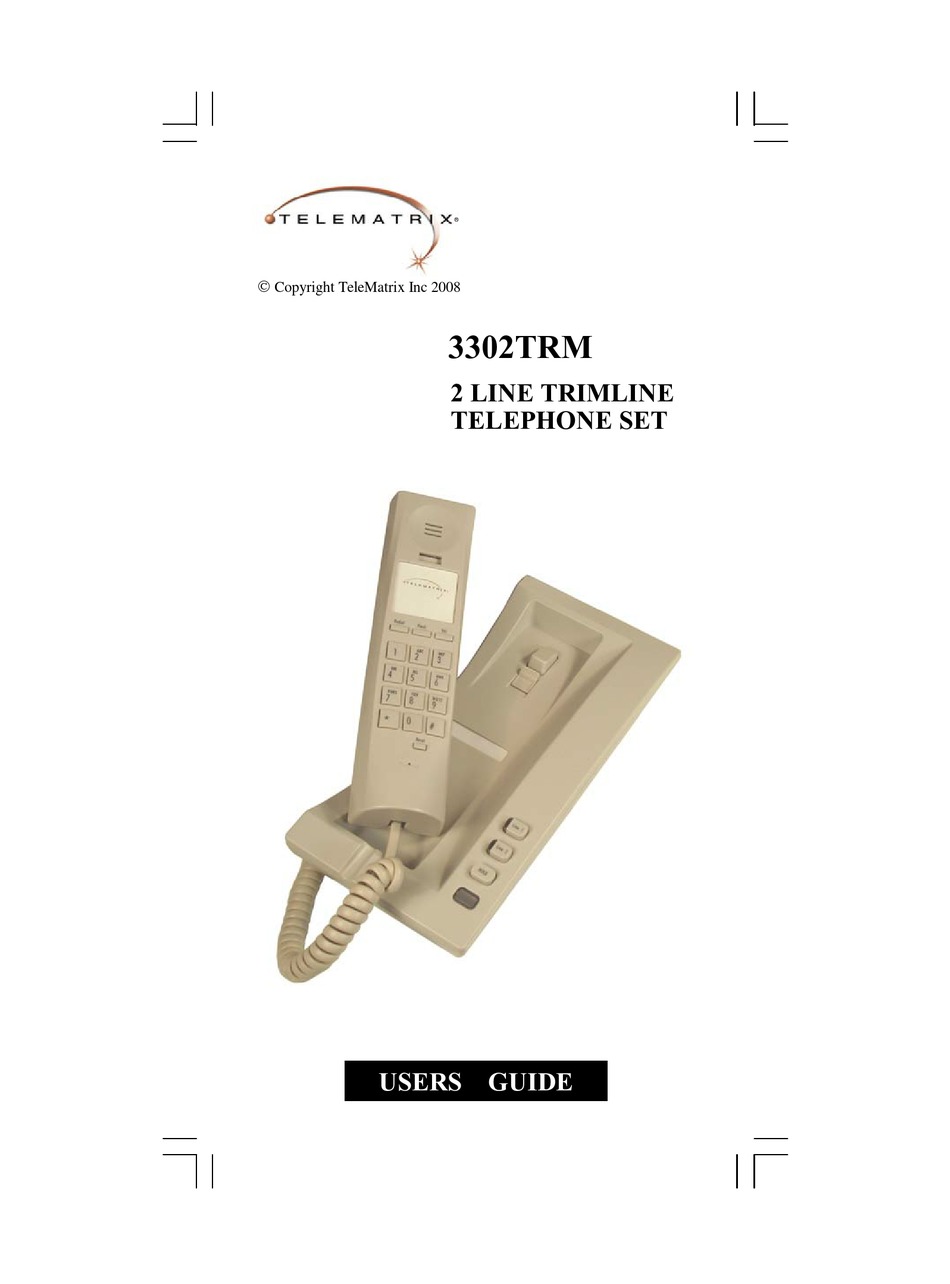

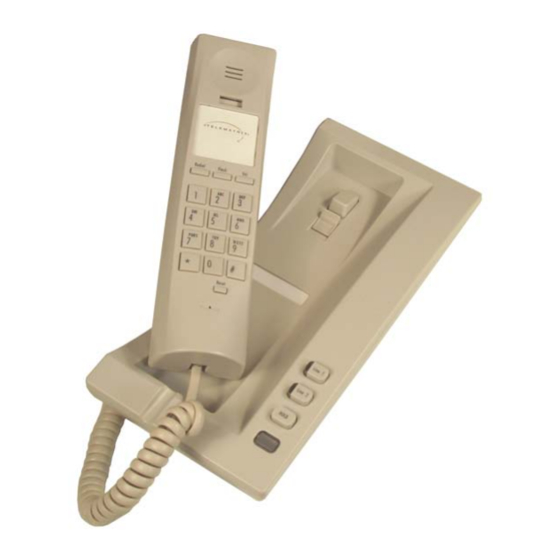

- Page 1 ® Copyright TeleMatrix Inc 2008 3302TRM 2 LINE TRIMLINE TELEPHONE SET USERS GUIDE...
-
Page 2: Introduction
INTRODUCTION Congratulations on the purchase of your TeleMatrix 2-line Trimline telephone. This telephone is a precision electronic device designed and manufactured with the highest quality components and work- manship that requires minimum maintenance. Please be sure to read the contents in this user’s guide to become familiar with... -
Page 3: Table Of Contents
CONTENTS Table Of Contents Introduction Features Controls Definition Of Controls Installation Parts Checklist Wall Mounting Switch Setting Operation Care & Maintenance Service Warranty... -
Page 4: Features
FEATURES Two Line Operation Tone Dialing Message Waiting Lamp Convenient Data Port Hold Key Line Status Indicators Handset Volume Control ... -
Page 5: Controls
CONTROLS... -
Page 6: Definition Of Controls
DEFINITION OF CONTROLS Data Port Used for plugging in a laptop, modem, fax, etc. Redial key Used to automatically redial the last number dial. Flash Key Provide 100mS/300mS and 600mS time line break. Handset Volume Control Amplifies the volume of the receiver Dial Pad Large keys used for outbound dialing. -
Page 7: Installation
INSTALLATION Caution Never install telephone wiring during a lightning storm. Never install telephone jacks in wet location unless the jack is specifically designed for wet locations. Never touch none insulated telephone wires or ... -
Page 8: Parts Checklist
15’/4.5m line cord sold seperately RJ11C/W Line Cord - 3.5/.09m Handset Coil Cord - 10’/3.05m... -
Page 9: Connecting The Line Cord
INSTALLATION Connecting The Line Cord Plug one end of the 15-foot modular telephone line cord into the receptacle on the bottom of the base unit. Route the cord through the cord channel provided. Plug the remaining end of the line cord into a standard telephone outlet. BASE UNIT... -
Page 10: Connecting The Handset Cord
INSTALLATION Connecting The Handset Cord Plug one end of the modular coiled handset cord into the receptacle located on the left side of the base unit. Plug the remaining end into the receptacle on the handset. -
Page 11: Wall Mounting
The TeleMatrix Trimline telephone can be wall mounted to a standard telephone wall jack plate. Using the 3.5-inch line cord, plug one end into the receptacle on the bottom of the base unit. The remaining end will plug into the wall jack. Carefully align the slots on the bottom of the base unit with the wall mount studs on the jack plate. - Page 12 INSTALLATION Handset Retaining Clip The handset retaining clip must be activated to hold the handset when wall mounting the telephone. Turn the “wall mount clip” 180 degrees. Turn...
-
Page 13: Switch Setting
SWITCH SETTINGS Flash Switch There is a 3-position slide switch located on the handset under the plastic cover. Use a sharp pointer to remove the switch plastic cover plate to expose the switch. The FLASH KEY can provide 100ms/300ms and 600ms time line break. - Page 14 SWITCH SETTINGS Ringer Volume Control Switch There are two (2) slide switches located on the left side of the base unit that is used to adjust the loudness of the ringing sound. A “low” and “high” setting are provided . Select the desired loudness by sliding the switch to the appropriate position.
-
Page 15: Message Waiting Switch
SWITCH SETTINGS Message Waiting Switch There are two (2) slide switches located on the base unit under a plastic cover. Use a sharp pointer to remove the switch plastic cover plate to expose the two switches. These switches control how the message-waiting lamp (MWL) works: Position: Mode:... -
Page 16: Operation
OPERATION A. Line Status Indicators The 2-line TrimLine is equipped with LED indicators to show the current status of the telephone lines. They are : Ringing Line: LED is blinking red Line In-Use: LED is steady green Line On Hold: LED turns from green (in-use) to red (hold) on telephone that places the call on hold. -
Page 17: Care & Maintenance
CARE & MAINTENANCE Keep the telephone dry. If it gets wet on the out- side, wipe it dry immediately. Liquids might con- tain minerals that can corrode the electronic cir- cuits. Do not touch the unit if submerged in water. Call for assistance. -
Page 18: Service
TeleMatrix Europe LLC, PriorityCare Center, Unit 33, Stratford Office Village, Walker Avenue, Milton Keynes, Buck MK12 5TW, United Kingdom TeleMatrix Middle East, PriorityCare Center, Hamriyah Free Zone, Sharjah, U.A.E. TeleMatrix will pay return postage on the repaired telephone. - Page 19 It is the re- sponsibility of users requiring service to report the need for service to our Company or to one of our authorized agents. Service can be facilitated through your regional TeleMatrix office.
-
Page 20: Warranty
WARRANTY...
